Astoria Core 600 - DISPLAY-UL Version Connection

TECHNICIANS' manual86 of 104

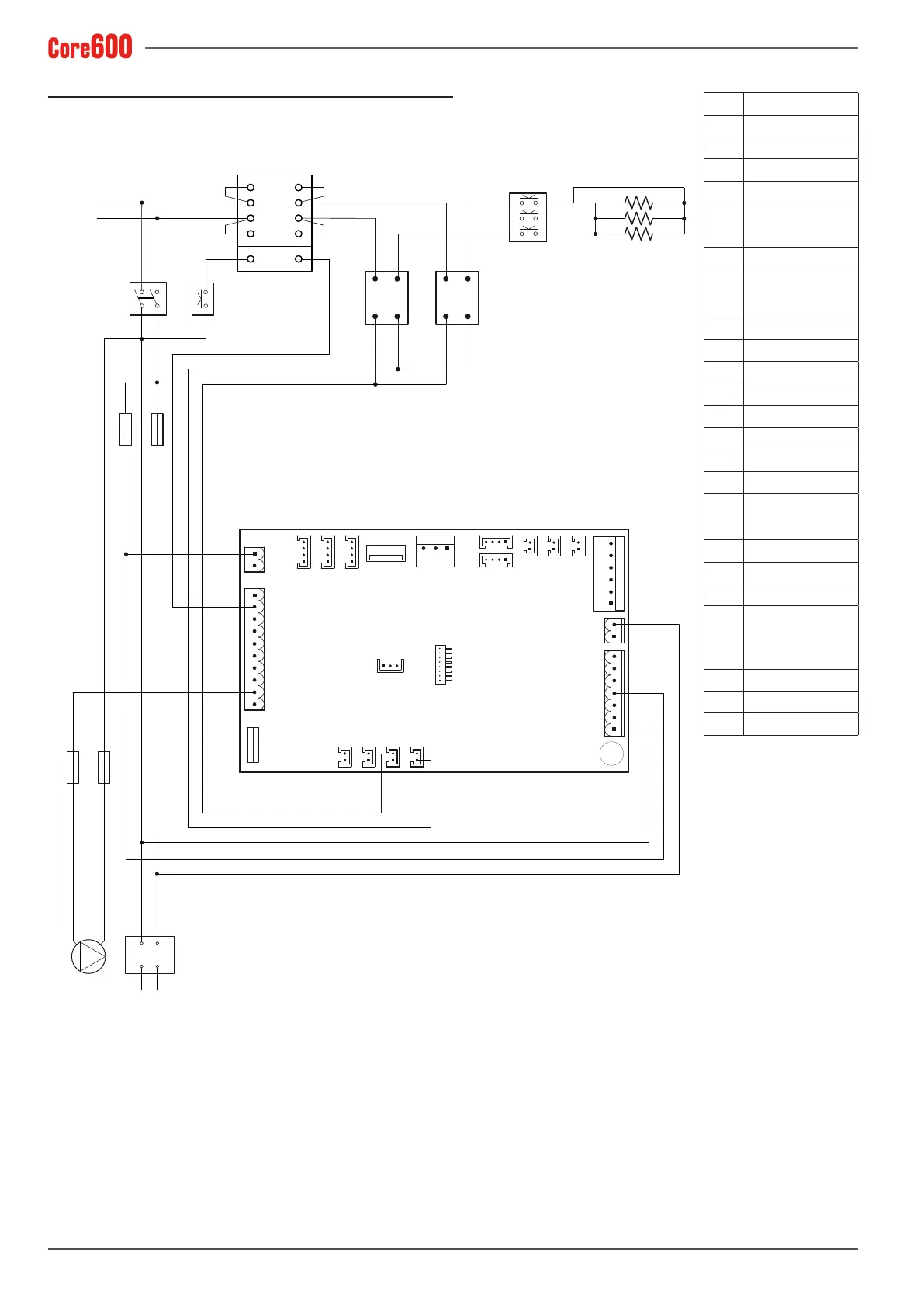

14.10 DISPLAY -UL- version connection
ALD LED power supply
BI White
BL Blue
F1 10 A fuse
F2 6.3 A fuse
F3
15 A fuse
Class C
GR Grey
IG
Main
switch
MA Brown
MP Motor pump
N Neutral
NE Black
PH1 Phase 1
PH2 Phase 2
PR Pressure switch
R Phase
RE
Heating unit
heating element
RS Static relay
RO Red
S Phase
SA
Heating element
protection ther-
mostat
T Phase
TG Remote switch
VE Green
RO
VE
BL
RO
BI
RO
BL
F1 F2
MP
24V
+ -
ALD
CN23
CN22
CN19 CN17
CN3
CN2
F3F3
GR
BI
IG
TG
PR
RS RS
SA RE
L1 T1
L2 T2
L3 T3
L4 T4
A2 A1
RO
NE
PH1
PH2
A2- A1+
L1 T1
A2- A1+
L1 T1
