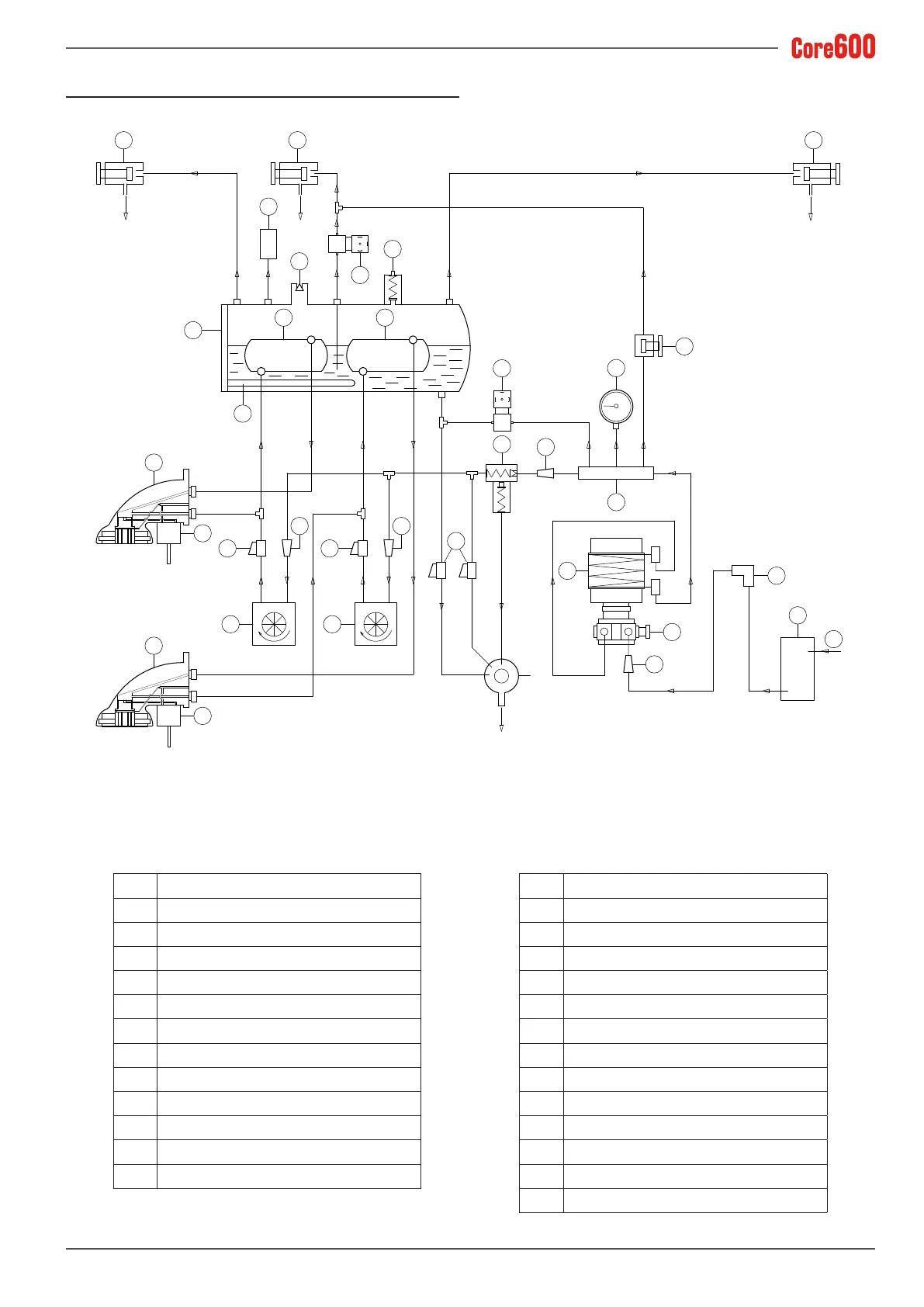

15.3 SAE hydraulic diagram
1 2
3
9
12
18
18
13
14
25
26
16
7
19
22
19
14 14
16
23
24
11
10
17
17
14
9
4
5
6
15
8
1
16
20
21
1 Steam valve
2 Hot water valve
3 Pressure switch
4 Negative pressure valve
5 Safety valve
6 Hot water solenoid valve
7 Heating unit
8 Heating unit heating element
9 Heat exchanger
10 Mixed water adjustment solenoid valve
11 Pressure gauge
12 Automatic Water Entry Solenoid Valve
13 SCNR valve
14 Water inlet lter
15 Dispenser
16 Valve
17 Group solenoid valve
18 Dispensing group
19 Volumetric dosing device
19 Drain tray
20 Drain tray
21 Drain
22 Motor pump
23 Pump pressure adjustment
24 Water inlet connection
25 Water lter/ Softener
26 Water inlet
