Astoria Core 600 - Automatic Steam Wand Connector Connection

TECHNICIANS' manual90 of 104

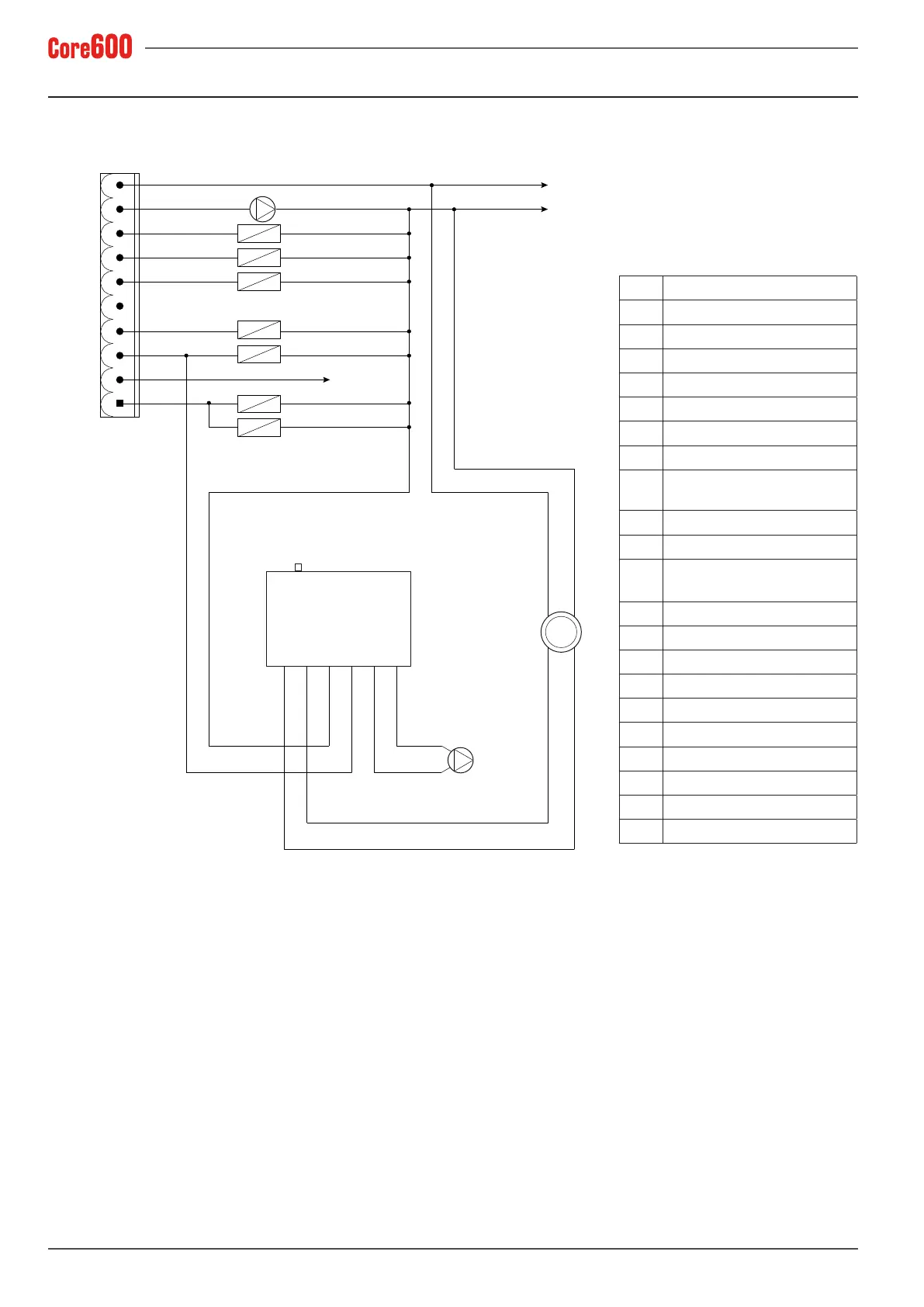

14.12 Connector connection - AUTOMATIC STEAM WAND version
AR Orange
BI White
BL Blue
DCP Pump double check
EV1 GR1 dispensing solenoid valve
EV2 GR2 dispensing solenoid valve
EV3 GR3 dispensing solenoid valve
EV4 GR4 dispensing solenoid valve
EVC
Heating unit lling solenoid
valve
EVM Mixed water solenoid valve
EVT Tea dispensing solenoid valve
EVV
Steam dispensing solenoid
valve
GI Yellow
GR Grey
MA Brown
MP Motor pump
NE Black
PA Air pump
RO Red
TOR Toroid
VE Green
VI Violet
EVT
EVV
EV1
EV3
EV2
MP
TOR
DCP
PA
EVC
ON/OFF
PH1
PH2
CN22
EVM










BL
AR
NE
VE BL GR BI VI NE
GI
VE
MA
