Chapter 4 – Functions of the instrument
UM-23100B-U User manual ATEQ F CLASS Page 49/90
b) "Automatic RESET" cycle end
If the part is OK, the Part OK relay will be activated as soon as the test ends and remain
so until the start of the following cycle. Following the dump time, the end of cycle relay is
activated.
If the part is bad, the bad part relay is activated as soon as the test is completed. The
instrument automatically dumps and sends a cycle end signal. A new cycle can then be
launched.

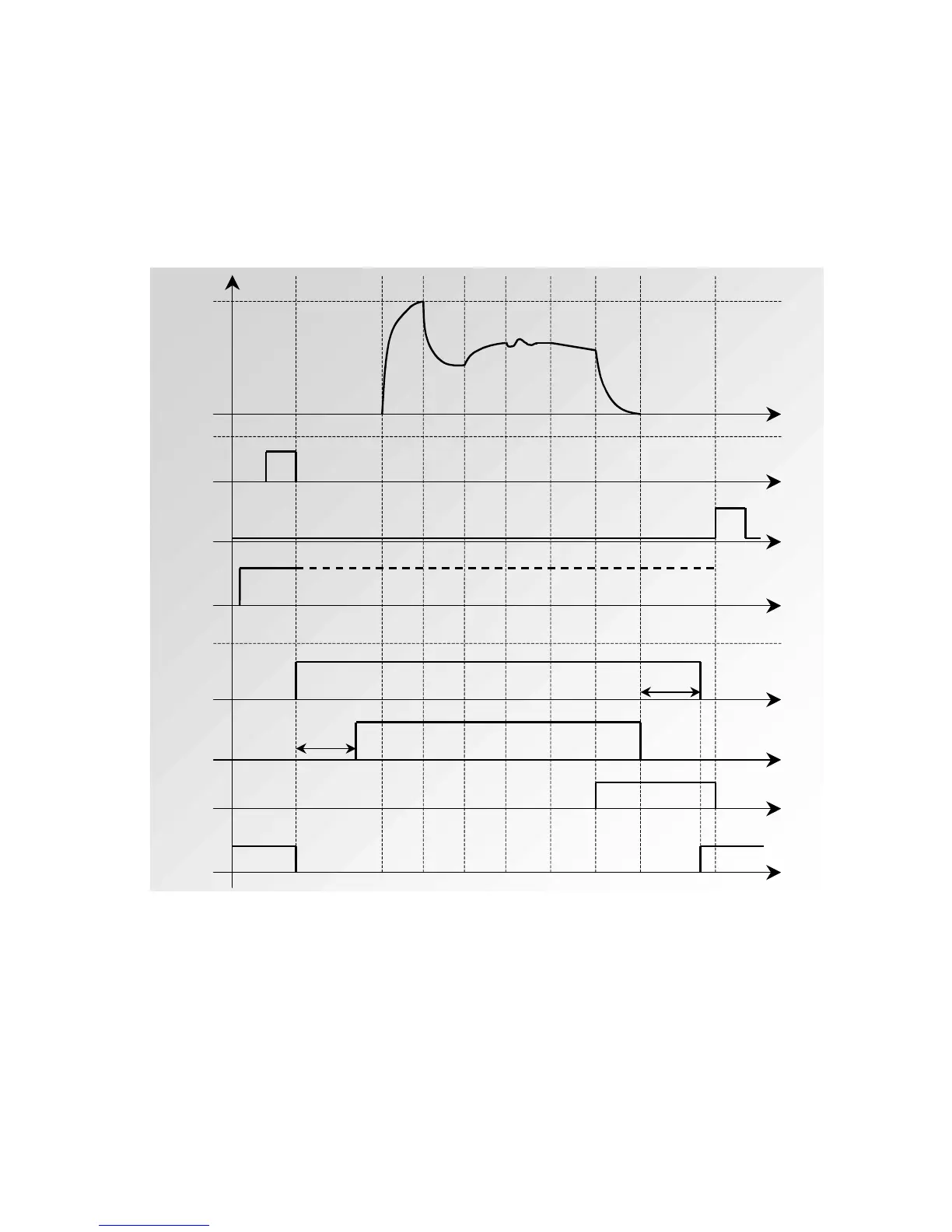

PRESSURE
START
Reset
AP-FP-DFSTD
t
t
t
t
t
t
t
Program
Number
Automatic
Connector A
t
Pass part or
Fail part
B time
B time
Automatic
connector B
End of cycle
Test cycle
Orders actions
t mini
t mini
t mini
Active
Inactive
Active
Inactive
The active program is the one selected before starting up. It remains active even if the
program inputs on the connector are no longer activated. This selection can only be
modified during the inter cycle period.
To return to program 1, when a cycle is not in progress, press any of the program
selection inputs.
