Model X High Speed Sublimation printer
40

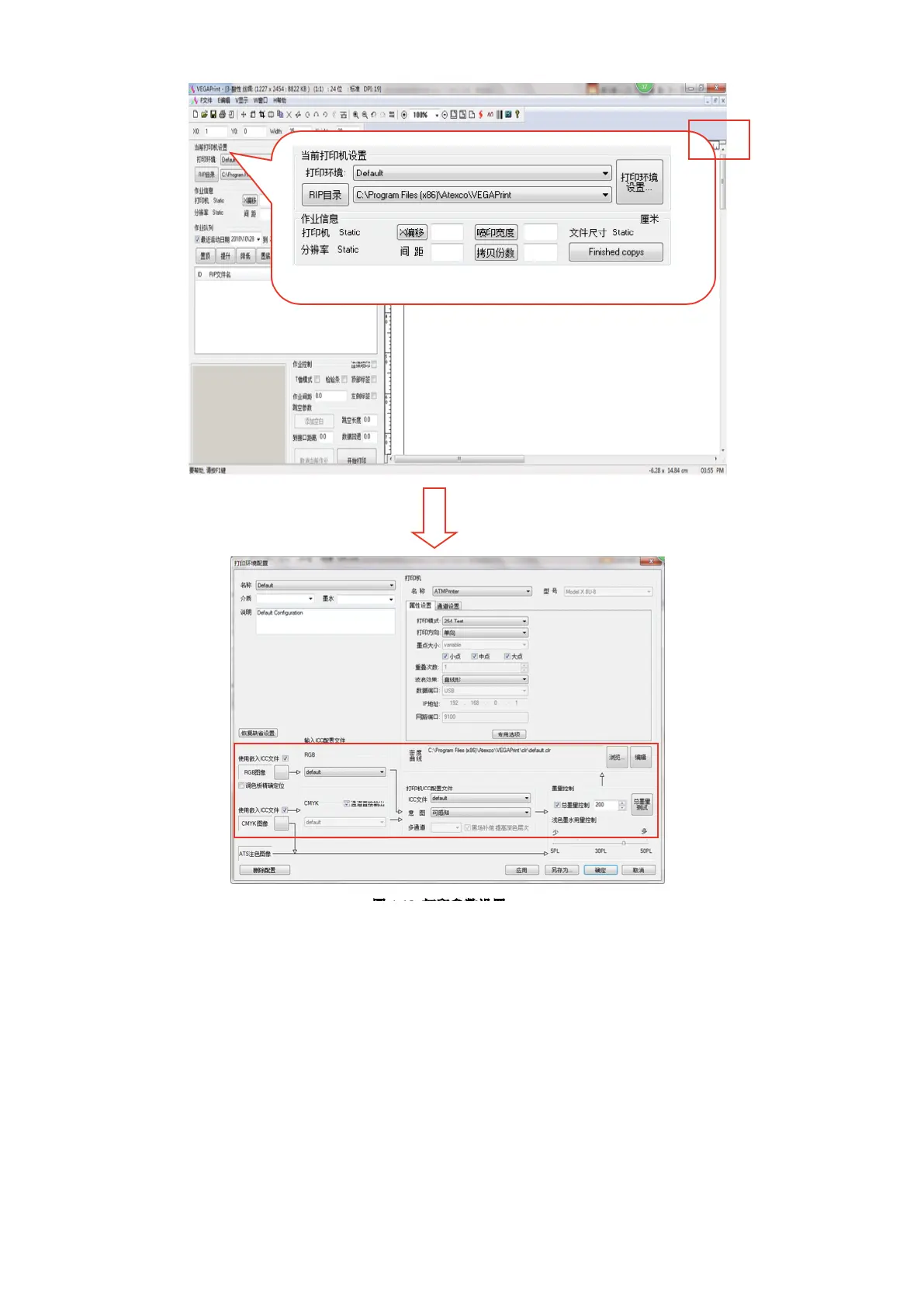

Figure 4-12 Print parameter settings
1. Printer Name: Used to select the model of the printer, default ATMPrinter
2. Model: Select the model of the current printer. This model is Model X 8B-8.
3．Attribute setting: set the current printing mode, print direction (one-way or two-way), dot size (large,
medium, small), wave effect (straight wave, natural wave, microwave, custom waveform).
Note: When the settings in Sever and Rip are inconsistent, the setting of Rip takes precedence.
