2.4 System with Multiple Transducers, IFPSMC Box, and a DAQ Card
A Multiple Transducer system may consist of the following components:
• Up to six TW Transducers
• Multi-sensor Interface Box (Multiple IFPS)
• Data Acquisition (DAQ) Card
• DAQ Software, running on a laptop or desktop
• Supporting power supplies for DAQ device or Multiple IFPS
(Power supply included with Multiple IFPS)
• DAQ Cables from Multi-sensor Interface box (IFPSMC) to a DAQ Device or Card

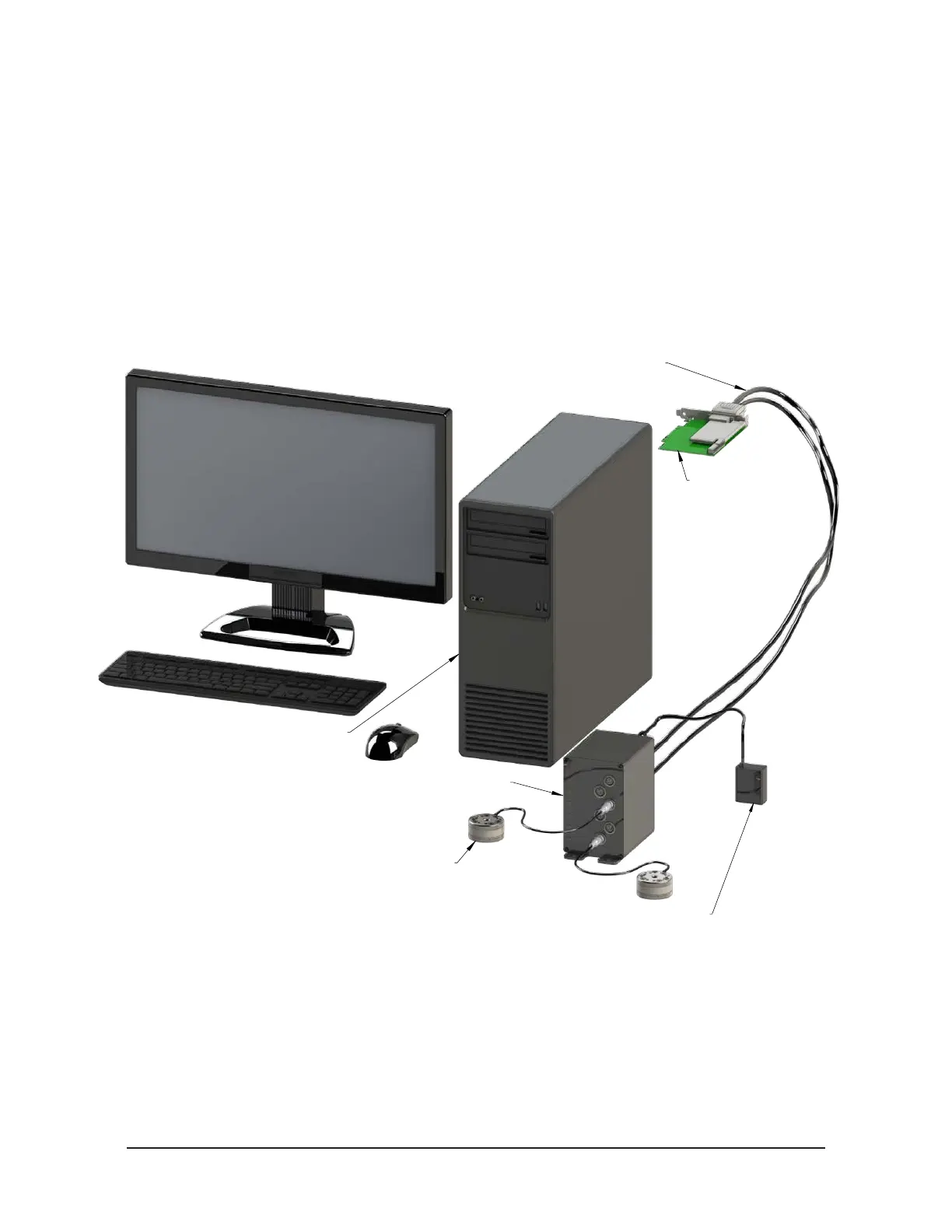

Figure 2.4—System with Multiple Transducers, IFPSMC Box, and a DAQ Card
Desktop running DAQ Software
(9030-05-1001 Software)
PCI DAQ Card
(9105-M1PCI6225)
9105-C-PS-IFPSMC
IFPSMC Power Supply
(Included with Multi-sensor Interface Box)
Multi-sensor Interface Box
(9105-IFPSMC-6 Shown)
TW Transducer
(9105-TW-MINI58 Shown)
(2) DAQ Shielded Cable
(9105-C-SHC6868EPM-1)
