4.5.6.3 Power
The small connector on the rear of the box is for power input. A Murr 7000-08481-
0000000 connector (female) may be used to mate with the power input connector.

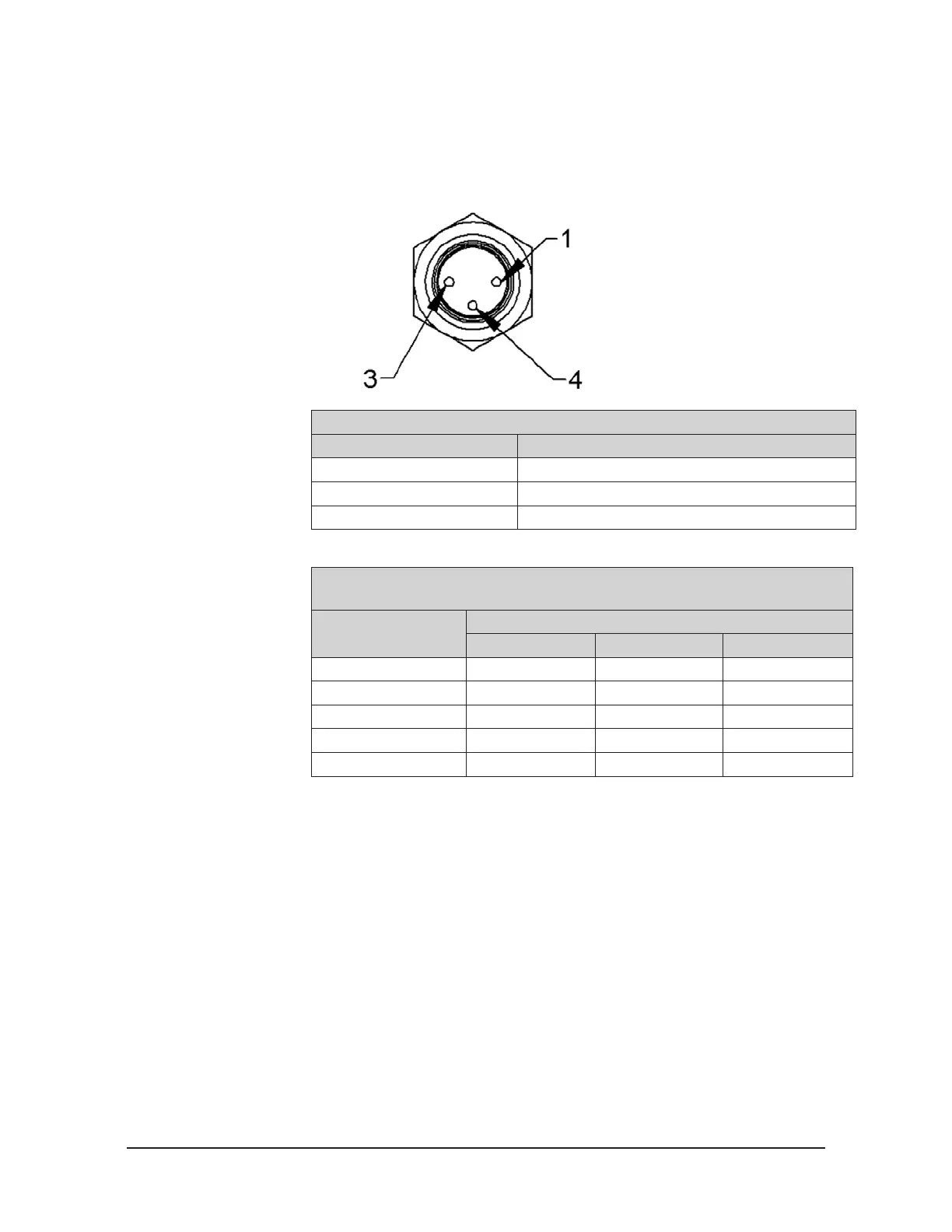

Figure 4.26—Power Input Connector
Table 4.14—IFPSMC Power Input Connector Pin Assignments
Pin Description
1 +V input
3 0V input
4 No connection
The IFPSMC accepts from +4.65VDC to +15VDC.
Table 4.15—Typical Input Current at Various Voltages at Room
Temperature
Model
Current Draw
@ 5VDC @12VDC @15VDC
9105-IFPSMC-2 0.36A 0.19A 0.16A
9105-IFPSMC-3 0.54A 0.28A 0.24A
9105-IFPSMC-4 0.72A 0.37A 0.32A
9105-IFPSMC-5 0.90A 0.46A 0.40A
9105-IFPSMC-6 1.08A 0.56A 0.48A
