Manual, F/T Sensor, Data Acquisition (DAQ) Systems
Document #9620-05-DAQ.indd-20
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
8
2. Product Overview
The DAQ Force/Torque sensor system is a multi-axis force and torque sensor system that simultaneously measures
forces (Fx, Fy, and Fz) and torques (Tx, Ty, and Tz). Components are available for Single TW Transducer DAQ
Systems, TIF Transducer DAQ Systems, and Multiple TW Transducer DAQ Systems. Other equipment is available
such as rack mounted equipment, BNC interface boxes, IP rated Transducers, IP rated cables, OEM interface
boards, cable extensions, and many DAQ device and card options.
2.1 System with a TW Transducer, IFPS Box, and USB DAQ Device
Typically DAQ systems are limited to a single transducer, PS or IFPS box. DAQ devices with 64 pin screw
terminals can be used to support two transducers and two PS or IFPS boxes. Refer to Table 4.1 for additional
required screw terminal connections.
A TW Transducer system may consist of the following components:
• TW Transducer
• Interface power supply (IFPS)
• Data Acquisition (DAQ) Device or Data Acquisition (DAQ) card
• DAQ Software, running on a laptop or desktop
• Supporting power supplies for IFPS or DAQ device
• Cable from IFPS to DAQ Device or DAQ card
• USB cable from USB DAQ device to PC

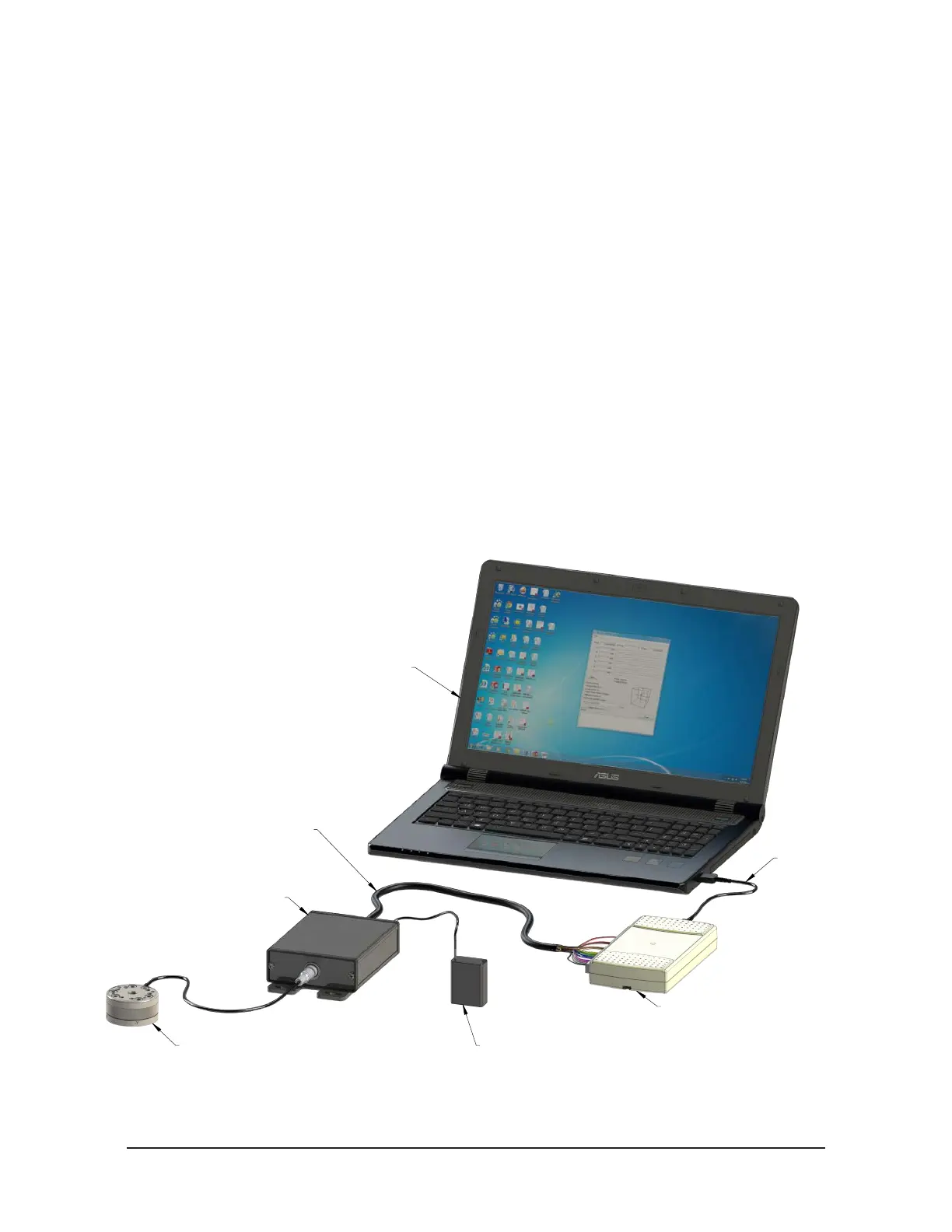

Figure 2.1—System with a Single TW Transducer, IFPS Box, and USB DAQ Device
USB Data Acquisition Device
with Screw Terminals
USB Cable
12 Volt Wall Mount Power Supply, 2A, 24 W
(9105-PS-KTPS24-12020MP)
TW Transducer
(9105-TW-MINI58 Shown)
DAQ Interface Power Supply
(9105-IFPS-1)
Unterminated DAQ Power
Supply Cable
(9105-C-PS-U-X)
Laptop running DAQ Software
(9030-05-1001 Software)
To Next Page
