2.5 System with Multiple Transducers, IFPSMC Box, Wired I/O Connections for
User Devices, and USB DAQ Device
A Multiple Transducer system may consist of the following components:
• Up to six TW Transducers
• Multi-sensor Interface Box (Multiple IFPS)
• Data Acquisition (DAQ) Device
• DAQ Software, running on a laptop or desktop
• Supporting power supplies for DAQ device or Multiple IFPS
(Power supply included with Multiple IFPS)
• USB cable from USB DAQ device to PC
• DAQ Cables from Multi-sensor Interface box (IFPSMC) to I/O connector Blocks and DAQ device

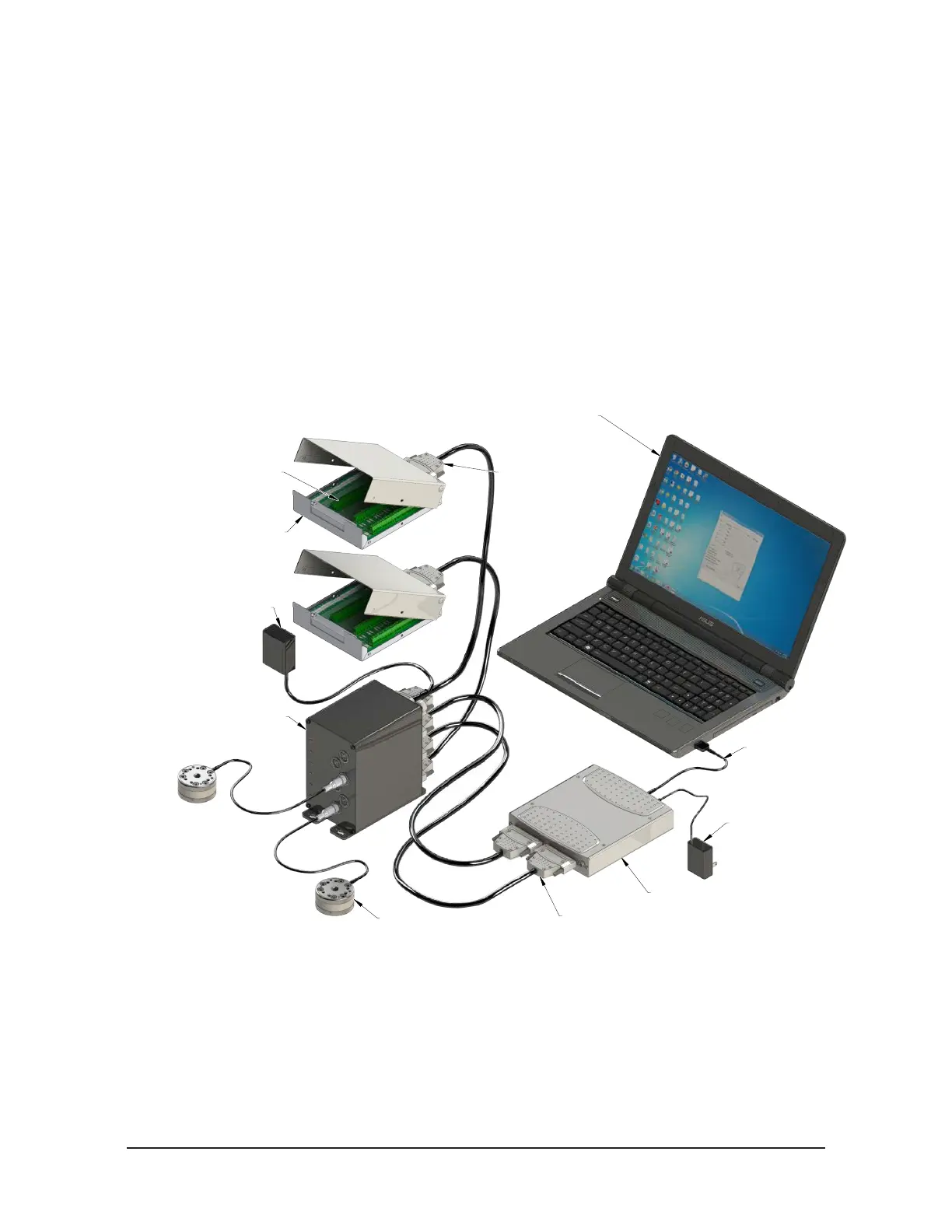

Figure 2.5—System with Multiple Transducers, IFPSMC Box, Wired I/O Connections and DAQ Device
USB Cable
Laptop running DAQ Software
(9030-05-1001 Software)
TW Transducer
(9105-TW-MINI58 Shown)
Multi-sensor Interface Box
(9105-IFPSMC-6 Shown)
USB DAQ Device
(2) NI SCB-68 Shielded I/O
Connector Block with 68-pin
Connector (9105-SCB-68)
Connector Blocks
for Wired Connections
to Other User Devices
IFPSMC Power Supply
(9105-C-PS-IFPSMC)
(Included with IFPSMC Box)
(2) DAQ Shielded Cable
(9105-C-SH6868EPM-1)
(2) DAQ Shielded Cable
(9105-C-SH6868EPM-1)
Power Supply for
USB DAQ Device
