Manual, F/T Sensor, Data Acquisition (DAQ) Systems
Document #9620-05-DAQ.indd-20
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
10
2.3 System with Multiple Transducers, IFPSMC Box, and a USB DAQ Device
A Multiple Transducer system may consist of the following components:
• Up to six TW Transducers
• Multi-sensor Interface Box (Multiple IFPS)
• Data Acquisition (DAQ) Device
• DAQ Software, running on a laptop or desktop
• Supporting power supplies for DAQ device or Multiple IFPS
(Power supply included with Multiple IFPS)
• USB cable from USB DAQ device to PC
• DAQ Cables from Multi-sensor Interface box (IFPSMC) to a DAQ Device or Card

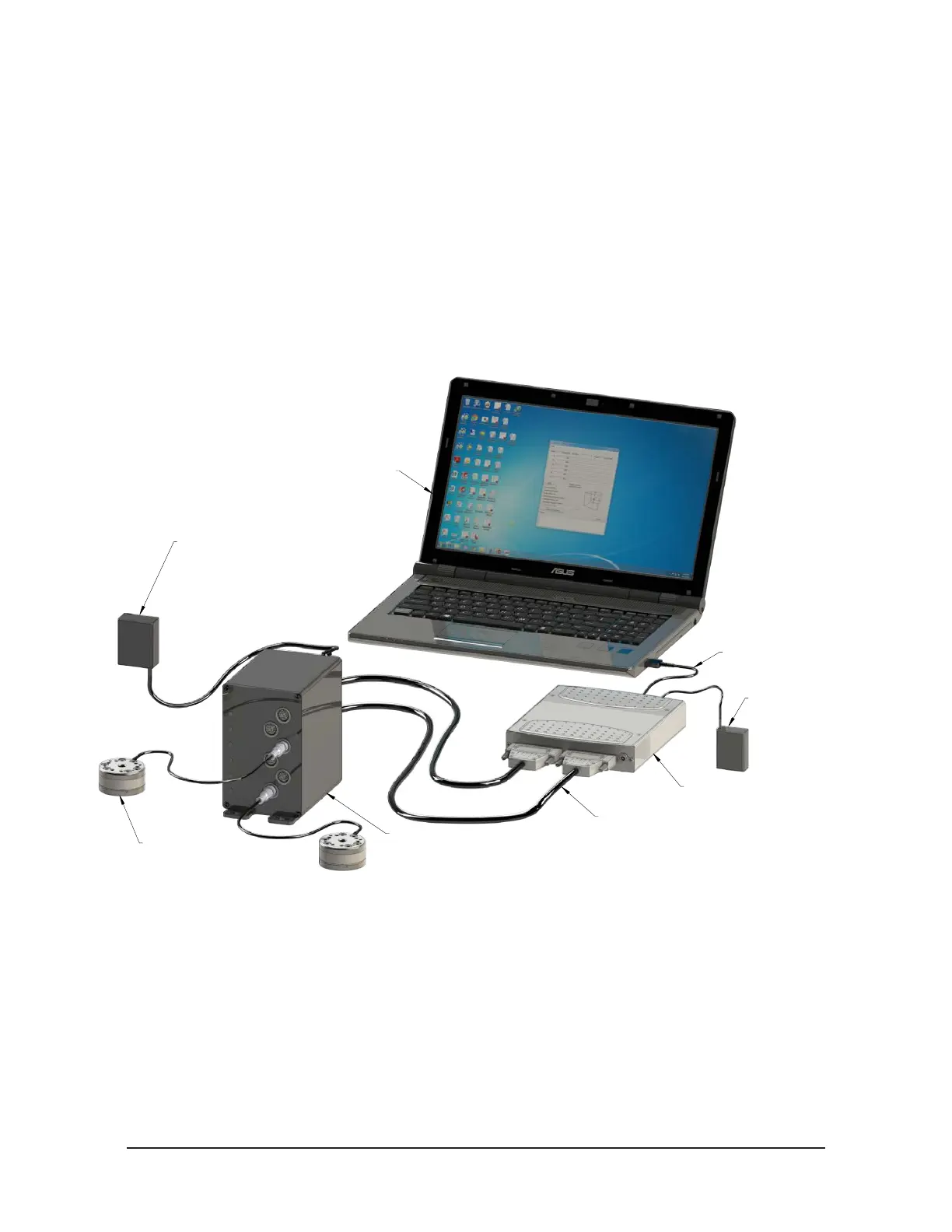

Figure 2.3—System with Multiple Transducers, IFPSMC Box, and a USB DAQ Device
TW Transducer
(9105-TW-MINI58 Shown)
USB DAQ Device
Power Supply for
USB DAQ Device
USB Cable
Laptop running DAQ Software
(9030-05-1001 Software)
Multi-sensor Interface Box
(9105-IFPSMC-6 Shown)
(2)
DAQ Shielded Cable
(
9105-C-SH6868EPM-1)
9105-C-PS-IFPSMC
IFPSMC M-Series Power Supply
(Included with Multi-sensor Interface Box)
To Next Page
