ATI Technologies 9105-IFPS-1 User Manual

Manual, F/T Sensor, Data Acquisition (DAQ) Systems
Document #9620-05-DAQ.indd-20
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
14
2.8 Interface Power Supply Box
The Interface Power Supply (IFPS) box is used with the small Nano and Mini transducers. The IFPS Box
supplies power to the transducer and supplementary electronics; it also conditions the transducer signals
utilized by the data acquisition system.
Power to the IFPS box can be provided through either the 12 V wall-mounted power supply included with
the IFPS box; or a 5 V source from the DAQ device through the 26-Pin male connector located on the box.
The IFPS box only requires one source; if both sources are connected, the IFPS box will use the 12 V source
and the 5 V source will be ignored.

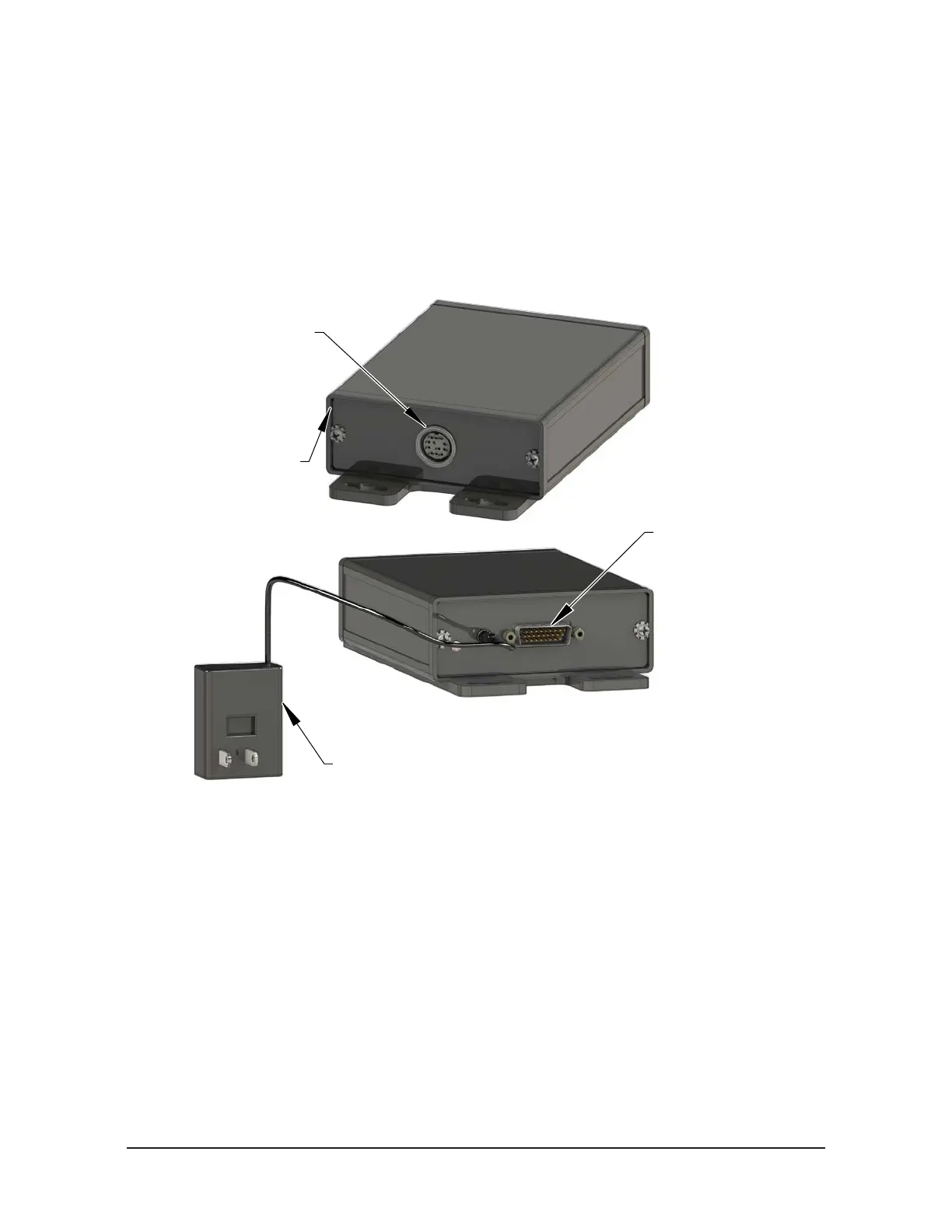

Figure 2.8—Interface Power Supply
12-pin Female
Transducer Connector
Interface Power Supply
Box (9105-IFPS-1)
26-pin Male
DAQ Device Connector
12 V Wall Mount Power Supply, 2 A, 24 W
(9105-PS-KTPS24-12020MP)
