Manual, F/T Sensor, Data Acquisition (DAQ) Systems
Document #9620-05-DAQ.indd-20
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
41
4.5.5.2 Custom DAQ Card Connections
Advanced users may have purchased systems that use an unterminated power supply
cable. The NI signal names listed in Table 4.8 may be used as a guide when connecting
the unterminated cable to other National Instruments data acquisition equipment.
Figure 4.14 and Figure 4.15 show example connection schemes for connecting an
IFPS or PS box to a data acquisition system. In this case, the signal names on the
examples must be matched to equivalent names on the data acquisition system.
The optional Ch6 connections are not shown here but can be found in Table 4.8.
Differential signal connections are preferred as they will give the best results (see
Figure 4.14).

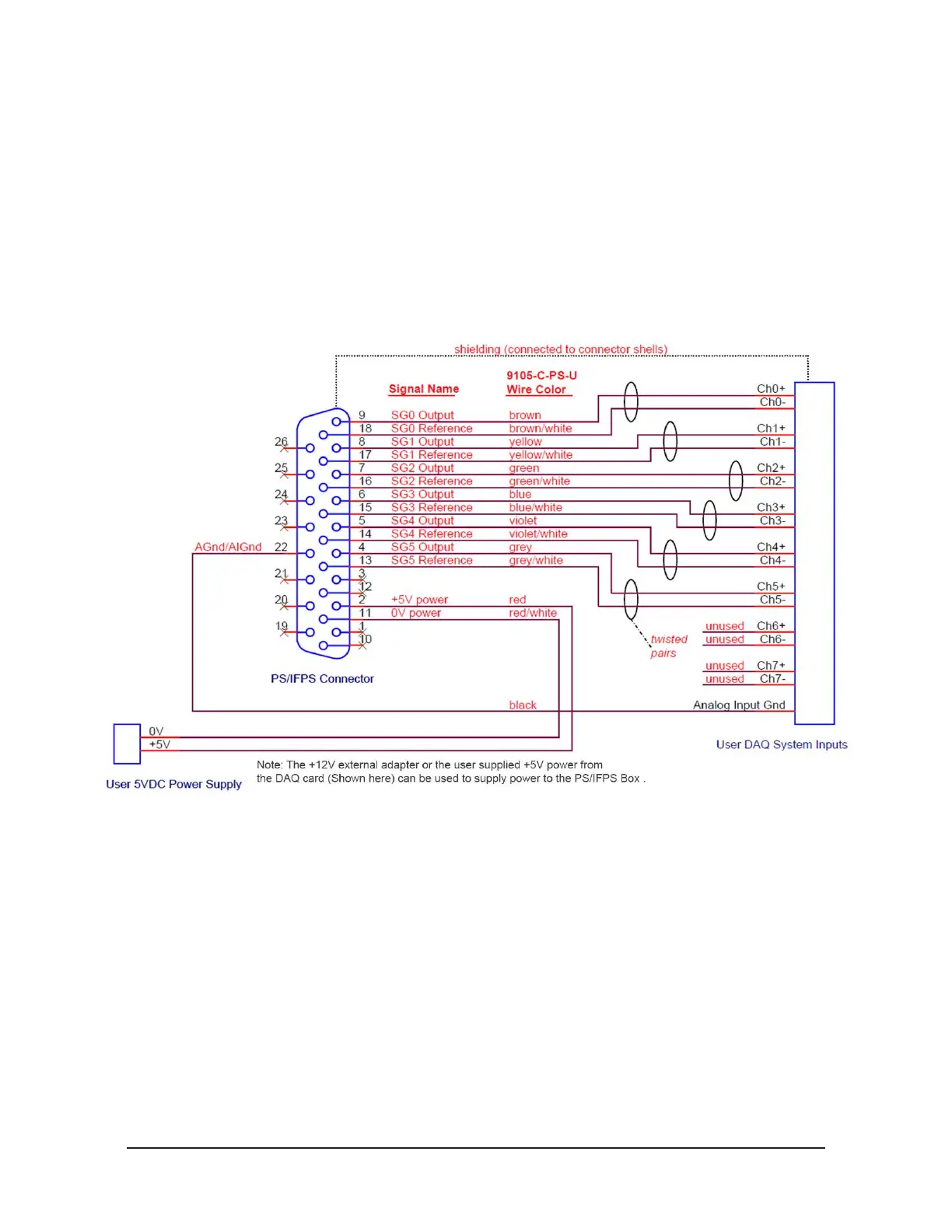

Figure 4.14—Differential Connections to a Data Acquisition System
