2.2 System with a TIF Transducer, PS Box, and DAQ Card
A TIF Transducer system may consist of the following components:
• TIF Transducer
• Power supply (PS)
• Data Acquisition (DAQ) Device or Data Acquisition (DAQ) card
• DAQ Software, running on a laptop or desktop
• Supporting power supplies for PS or DAQ device
• Transducer cable
• DAQ Cable from PS to DAQ Device or DAQ card

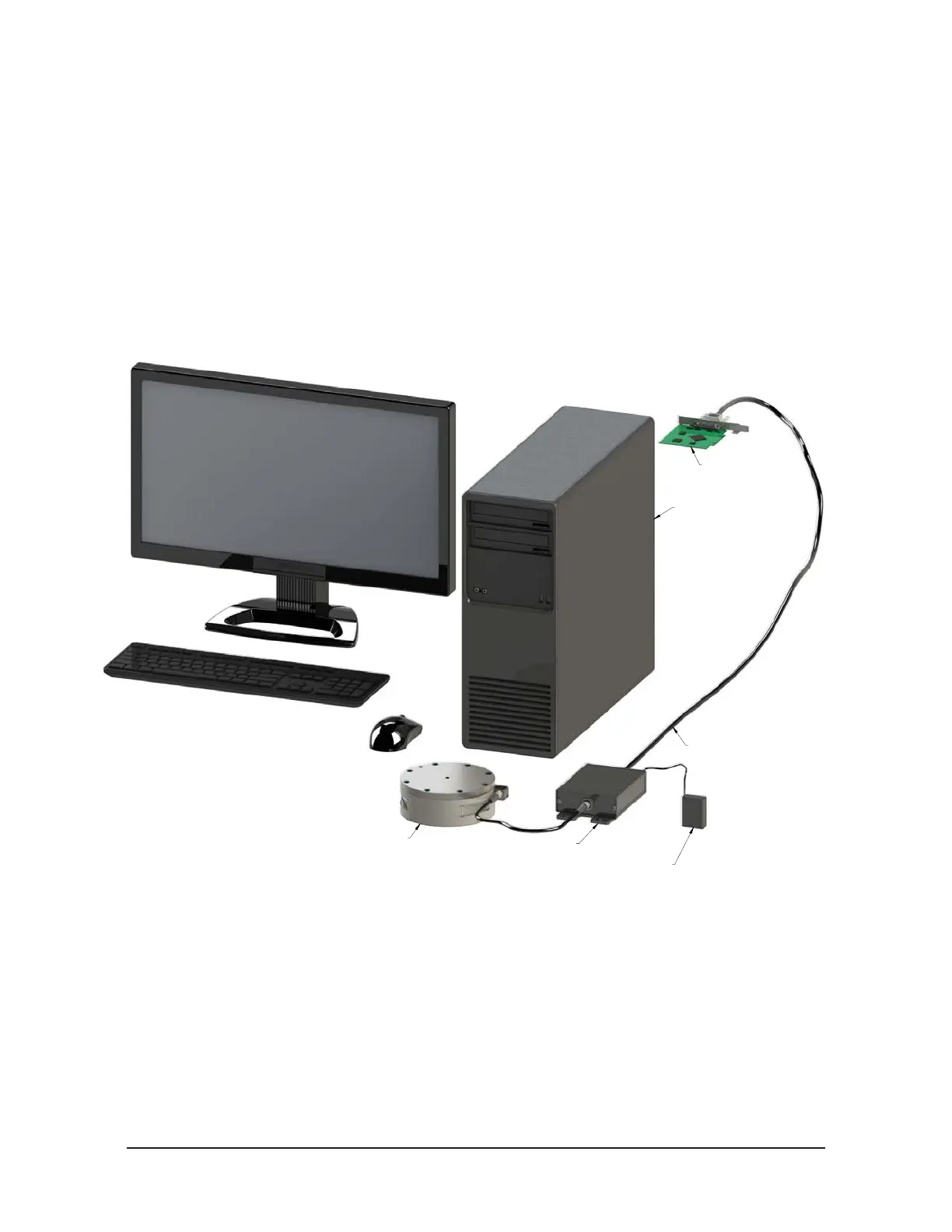

Figure 2.2—System with a Single TIF Transducer, PS Box, and DAQ Card
Desktop running
DAQ Software
Data Acquisition
Card (9105-M1PCI)
Transducer
(9105-TIF-THETA Shown)
DAQ Transducer Power
Supply (9105-PS-1)
DAQ Cable from Power Supply
to VHDCI 68-pin Connector
(9105-C-PS-V68-X)
12 Volt Wall Mount Power Supply, 2A, 24 W
(9105-PS-KTPS24-12020MP)
(9030-05-1001 Software)
