4.5.6.2 Installing Additional IFPS Cards in an IFPSMC Box
Current IFPSMC box models have all transducer connectors installed on the front
panel; additional IFPS cards can be added to use with additional transducers.
Tools required: #2 Phillips head screw driver
Parts required: 9105-IFPSMC-PCB
NOTICE: The following steps must be done at an anti-static workstation.
NOTICE: Make sure the transducers are re-connected to the same
connector on the front panel when re-assembling the IFPSMC box. Also
ensure the transducers and the connector on the front panel are clearly
marked with the serial number label.
1. Disconnect all cables, transducers and the power supply from the IFPSMC box.
2. Remove the (4) M4 pan head screws from the front panel using a Phillips head
screw driver.
3. Carefully rotate the front panel open to the right side of the box, as shown in
Figure 4.21.

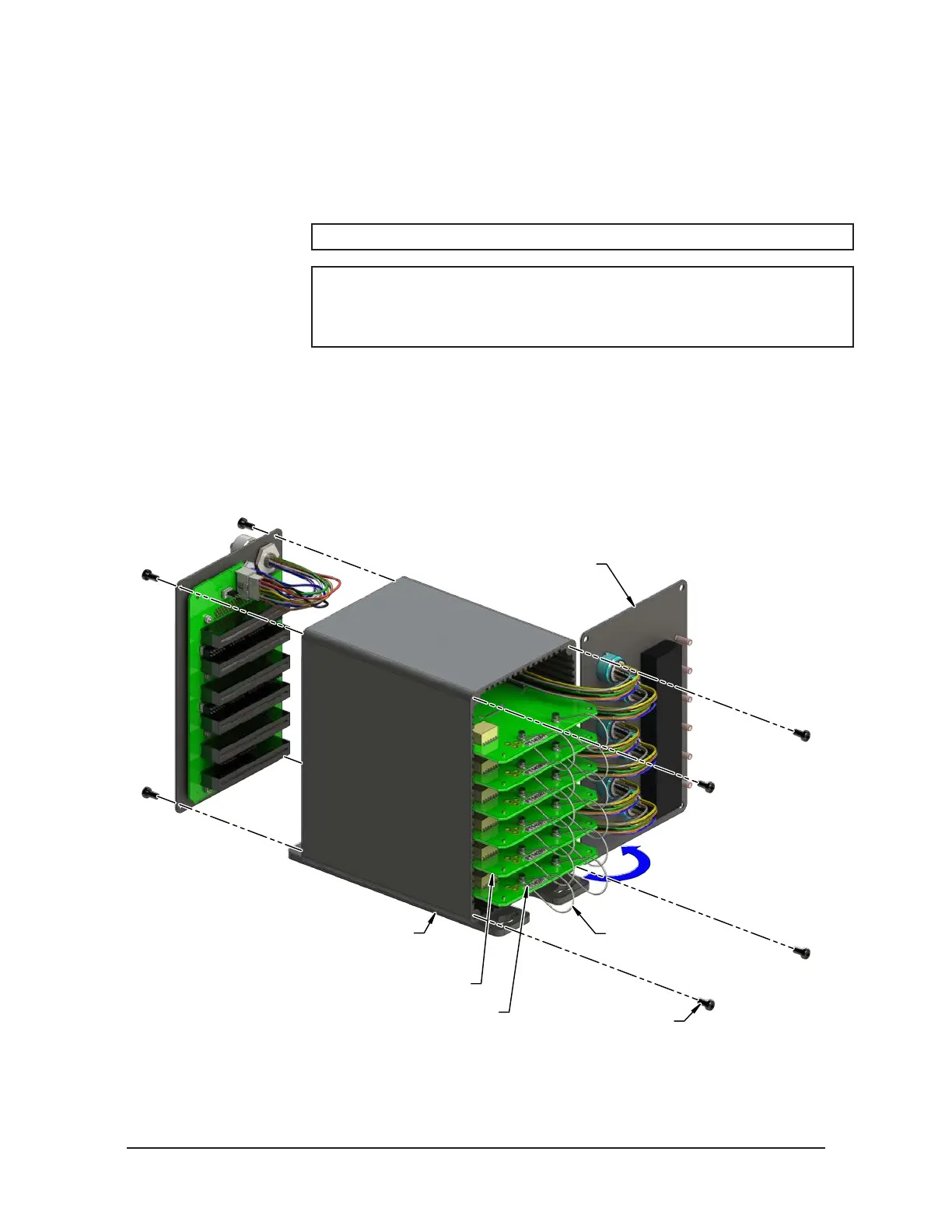

Figure 4.21—IFPSMC Box Disassembly
(4) M4 Pan Head Screw
Front End Plate with
Transducer Connectors
IFPSMC Box
IDAQ PS Board Assembly
Plastic Loops
FT Serial Number Label
4. Determine the next available slot in the IFPSMC box. Note: The slots should be
populated starting with slot 2 then 3, 4, 5, 6, and 1. Slot 1 should be the last slot
populated.
