Atmel AVR User Manual

2.4. Data Direct

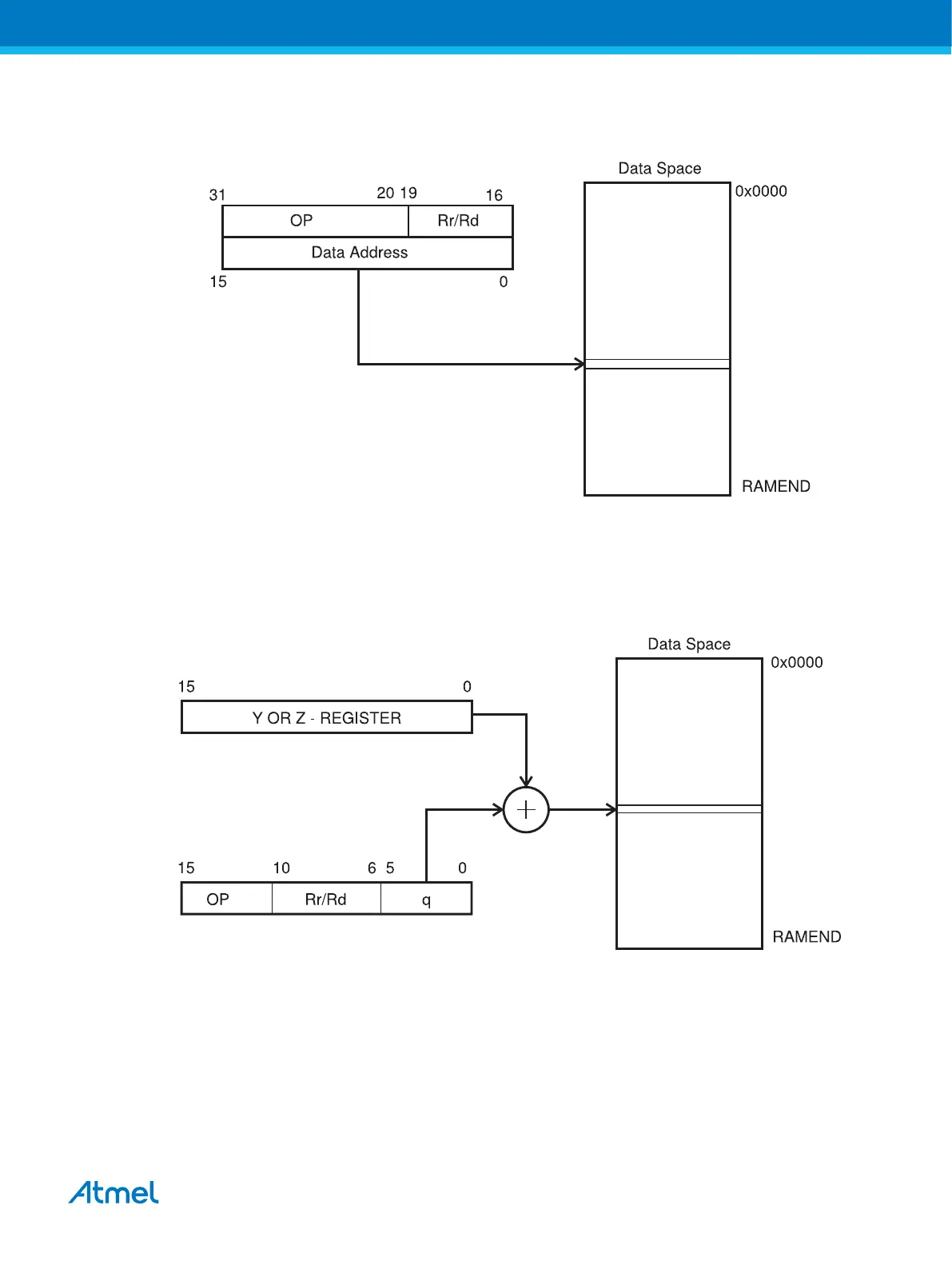

Figure 2-4. Direct Data Addressing
A 16-bit Data Address is contained in the 16 LSBs of a two-word instruction. Rd/Rr specify the destination
or source register.
2.5. Data Indirect with Displacement
Figure 2-5. Data Indirect with Displacement
Operand address is the result of the Y- or Z-register contents added to the address contained in six bits of
the instruction word. Rd/Rr specify the destination or source register.
Atmel AVR Instruction Set Manual [OTHER]
Atmel-0856L-AVR-Instruction-Set-Manual_Other-11/2016
16
