10. ASR – Arithmetic Shift Right
10.1. Description
Shifts all bits in Rd one place to the right. Bit 7 is held constant. Bit 0 is loaded into the C Flag of the
SREG. This operation effectively divides a signed value by two without changing its sign. The Carry Flag
can be used to round the result.

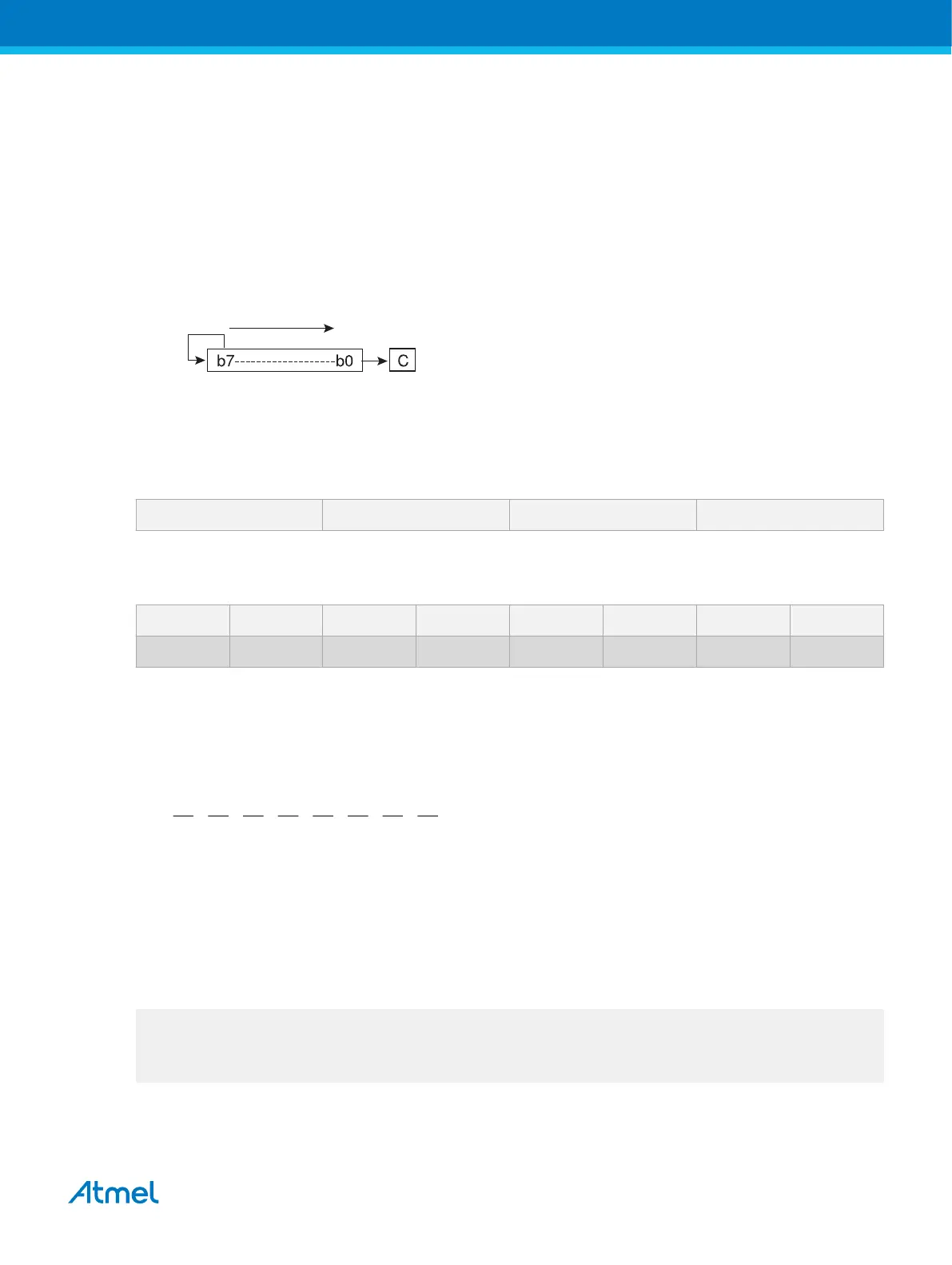

Operation:
(i)
Syntax: Operands: Program Counter:
(i) ASR Rd 0 ≤ d ≤ 31 PC ← PC + 1
16-bit Opcode:
1001 010d dddd 0101
10.2. Status Register (SREG) and Boolean Formula
I T H S V N Z C
– – – ⇔ ⇔ ⇔ ⇔ ⇔
S N ⊕ V, for signed tests.
V N ⊕ C, for N and C after the shift.
N R7
Set if MSB of the result is set; cleared otherwise.
Z R7 • R6 • R5 • R4 • R3 • R2 • R1 • R0
Set if the result is $00; cleared otherwise.
C Rd0
Set if, before the shift, the LSB of Rd was set; cleared otherwise.
R (Result) equals Rd after the operation.
Example:
ldi r16,$10 ; Load decimal 16 into r16
asr r16 ; r16=r16 / 2
ldi r17,$FC ; Load -4 in r17
asr r17 ; r17=r17/2
Words 1 (2 bytes)
Cycles 1
Atmel AVR Instruction Set Manual [OTHER]
Atmel-0856L-AVR-Instruction-Set-Manual_Other-11/2016
37
