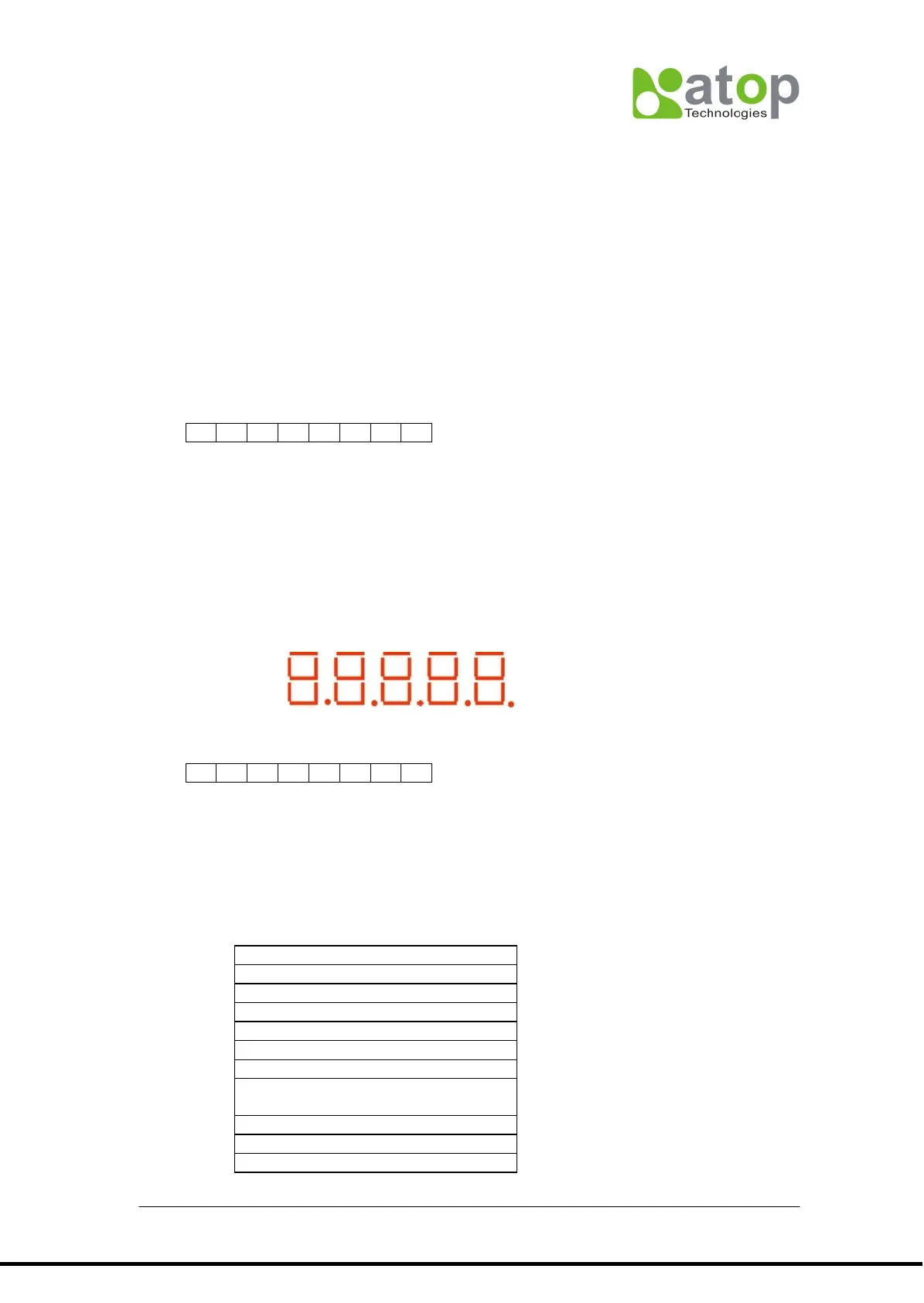

ABLEPick pick-to-light communication protocol
51
2) Data [1]: Define all AT503-4K’s key’s status (enable/disable) when sending one
message, which includes confirmation button, up-count button, down-count button and
4 illuminant buttons.
Bit 0 : Confirmation button (reserved)
Bit 1 : Up-count key (reserved)
Bit 2 : Down-count key (reserved)
Bit 3 : 4 illuminant buttons to be confirmed button or not(reserved).
Bit 4 : Define up-count whether can be increased quantity more than sending value.
Bit 5 : reserved
Bit 6 : Blinking time interval for standby light
Bit 7 : Blinking time interval for standby light
Bit assignment:
7
6
5
4
3
2
1
0
0 ------------------Disable increasing quantity function on up-count button
1 ------------------Enable increasing quantity function on up-count button
0 0 ------------------------Blinking type 1(25% ON, 75% OFF)
0 1 ------------------------Blinking type 2(50% ON, 50% OFF)
1 0 ------------------------Blinking type 3(75% ON, 25% OFF)
1 1 ------------------------Blinking type 4(100% ON, 0% OFF)
3) Data [2] ~ Data [6]: We reserve maximum 5 digits could be displayed on AT503-4K’s
LED display.
4) Data 7 (Dot) : Decimal dot position.
5
th
4
th
3
rd
2
nd
1
st
dot
Bit assignment:
7
6
5
4
3
2
1
0
0 0 0 0 1------------------ 1
st
dot is on
0 0 0 1 0------------------ 2
nd
dot is on
0 0 1 0 0------------------ 3
rd
dot is on
0 1 0 0 0------------------ 4
th
dot is on
1 0 0 0 0------------------ 5
th
dot is on
4.5.6.2 Return message while sending by 30H
CCB Description
CCB LEN(L)= length of CCB
Length of CCB in byte
CCB LEN(H) = 0x00
MESSAGE TYPE = 0x60
0x60: port1 of controller,
Reserved
Reserved
Reserved
SUB-COMMAND
30H
SUB-NODE
0x01~0xFA (address)
or 0xFC (Broadcasting)
Data 0
Data buffer index
Data 1
5
th
digit in LED
Data 2
4
th
digit in LED
