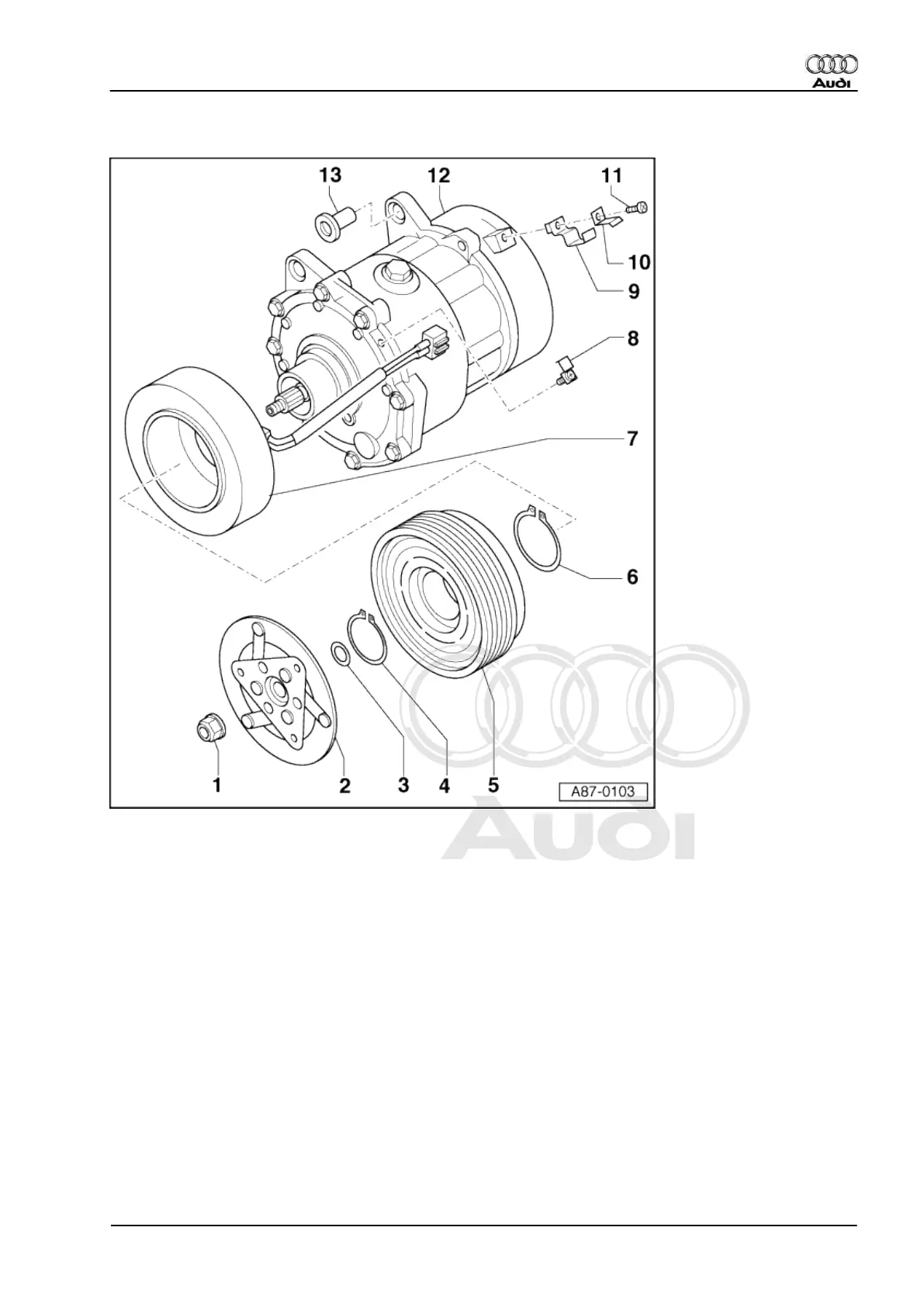

◆ Checking and adjusting gap width =>Fig. 5 .
4 Circlip
◆ Renew
◆ Install on correct side (flat side facing compressor).
◆ Ensure correct seating in groove.
5 Pulley
◆ Detaching =>Fig. 3 .
◆ Clean contact surface before installation.
6 Circlip
◆ Renew
◆ Install on correct side (flat side facing compressor).
◆ Ensure correct seating in groove.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
4.2 - Sanden compressor 141
