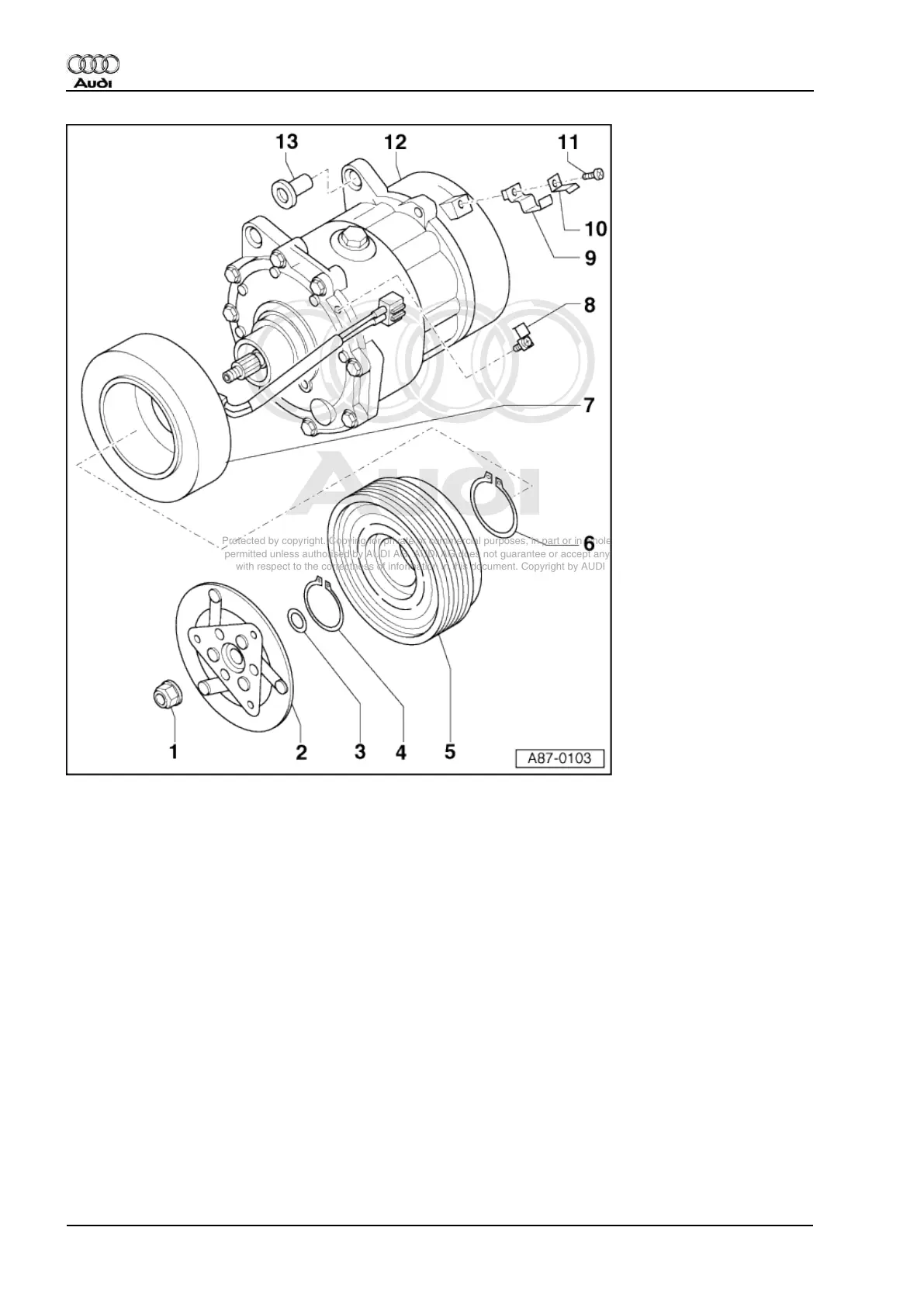

7 Solenoid
◆ Installing =>Fig. 4 .
Notes:
◆ An overheating fuse is installed in the solenoid. The overheating fuse interrupts the solenoid as soon as the
air conditioner magnetic clutch becomes too hot (e.g. due to a stiff compressor).
◆ The familiar protective diode -J201 has already been integrated in this solenoid (reduces the voltage peaks
which may occur when the air conditioner magnetic clutch is disengaged).
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
142 87 - Air conditioning
