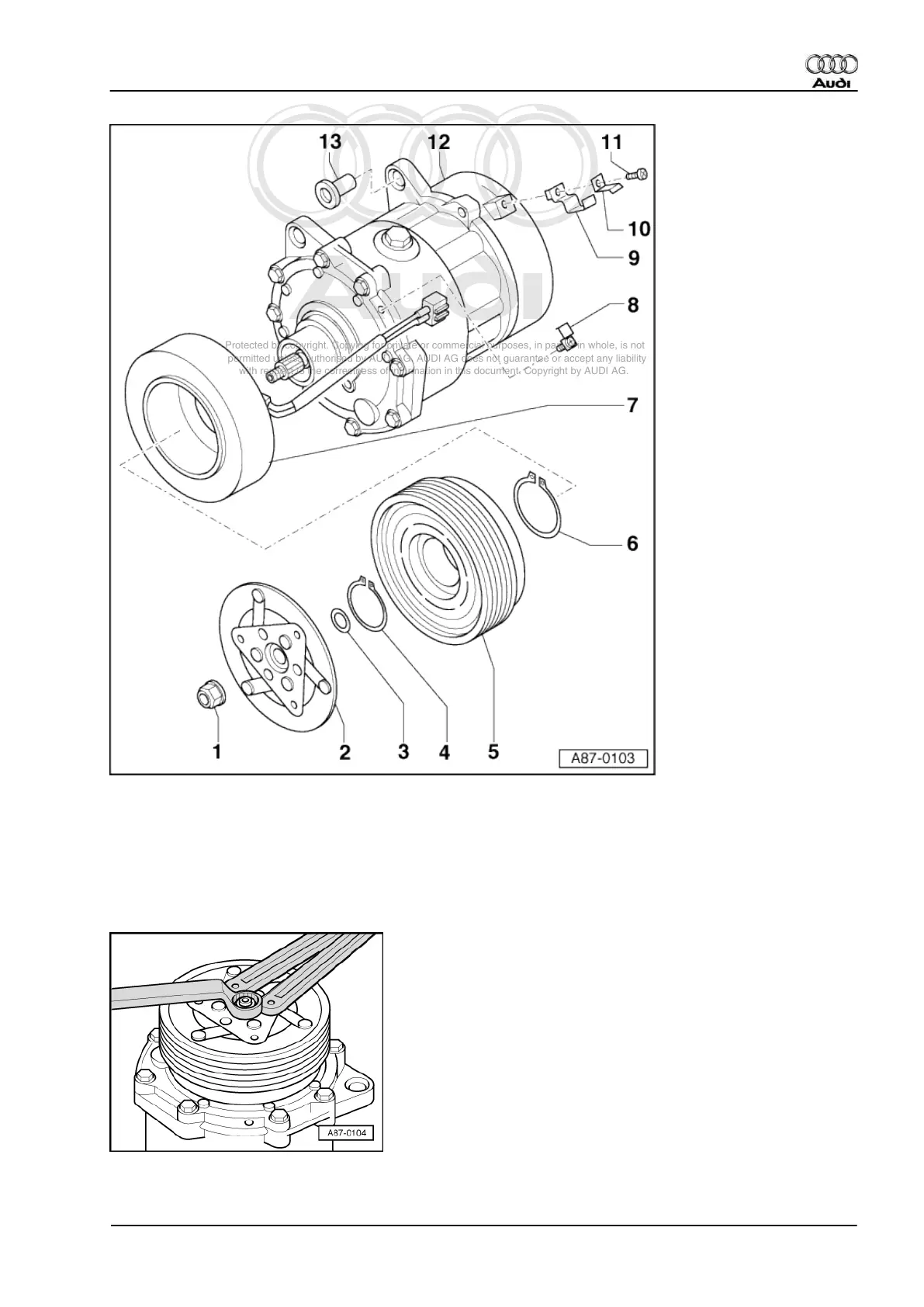

8 Bracket with bolt
9 Bracket
10 Bracket
11 Bolt
12 Compressor (Sanden SD7 V16)
13 Slide bush
◆ Threaded
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
4.2 - Sanden compressor 143
