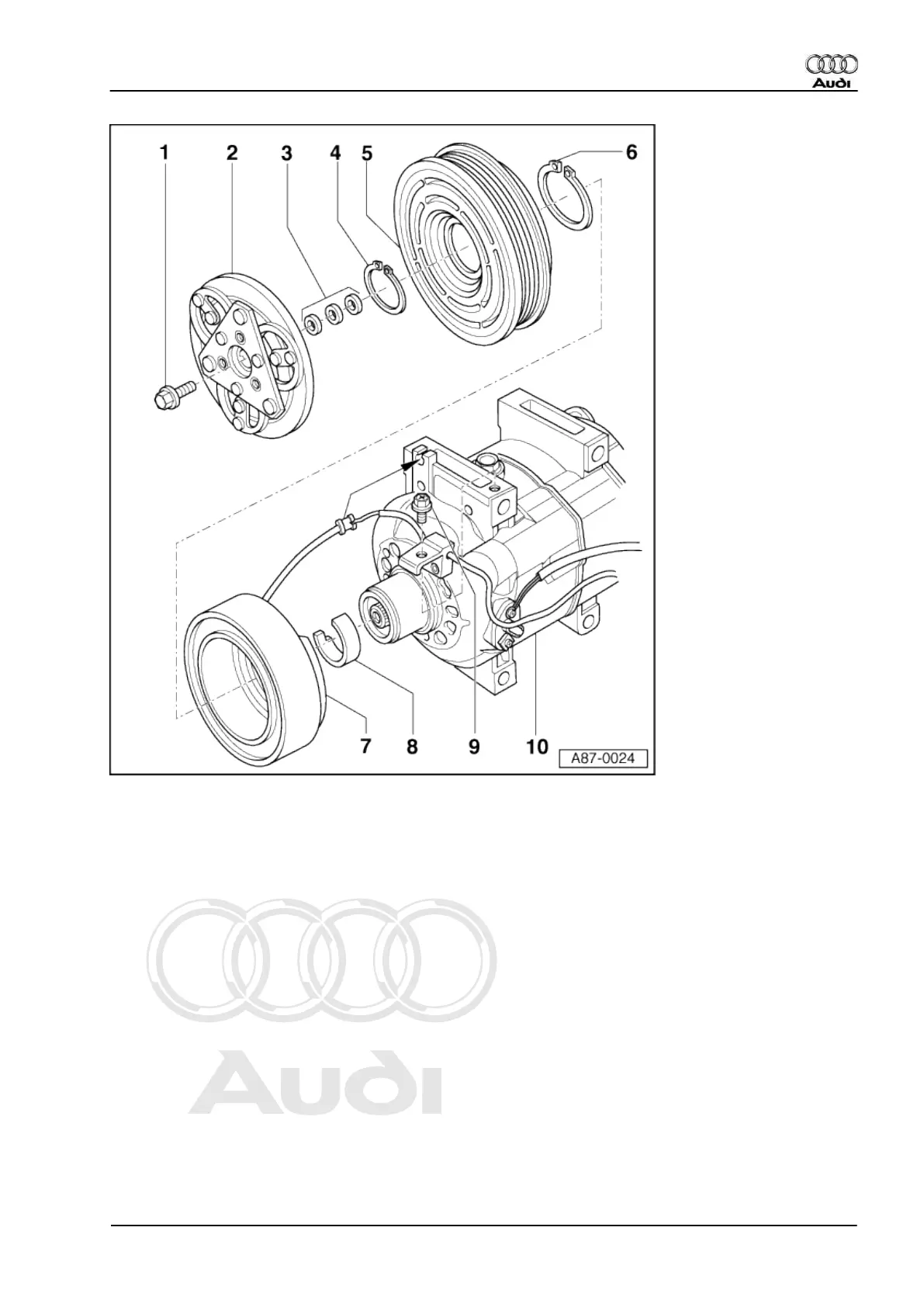

5 Pulley
◆ Pulling off =>Fig. 3
◆ Installing => Fig. 4
6 Circlip
◆ Replace
◆ Install on correct side (flat side facing compressor)
◆ Ensure correct seating in groove
7 Solenoid
◆ Installing => Fig. 5
8 Felt ring
◆ Replace
9 Bolt
10 Compressor
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
4.3 - "Zexel" compressor 147
