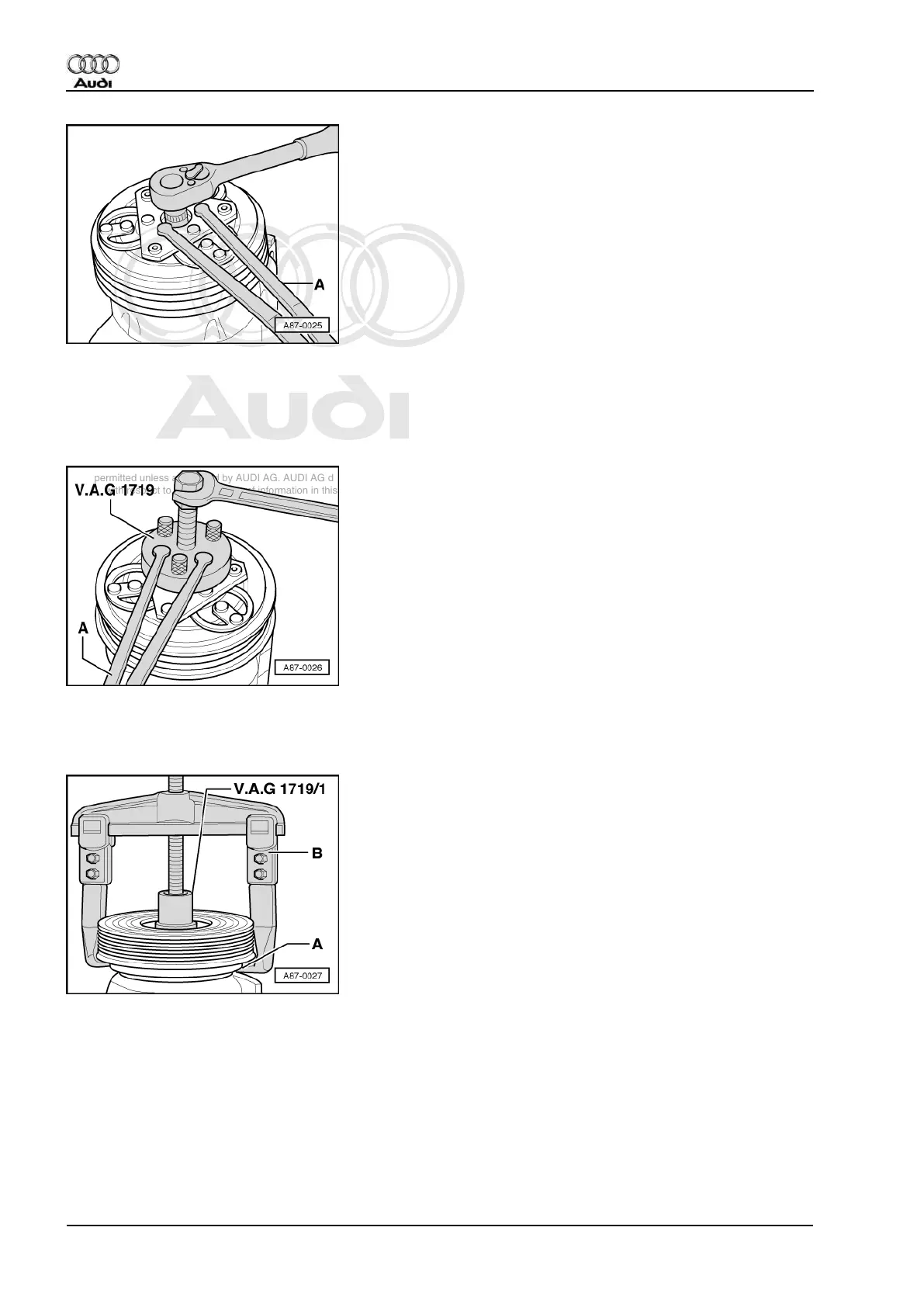

-> Fig.1 Loosening and tightening hexagon bolt
- Counterhold using a commercially available 2-hole pin wrench -A- (pin-ø 4 mm).
- Tighten bolt to 15 Nm.
-> Fig.2 Detaching clutch plate
- Counterhold with a commercially available 2-pin wrench -A-.
-> Fig.3 Removing pulley
- Remove the felt ring.
- Fit the special tool V.A.G 1719/1.
- Position the two-arm puller -B- on the shoulder-A-, to prevent any damage to the pulley.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
148 87 - Air conditioning
