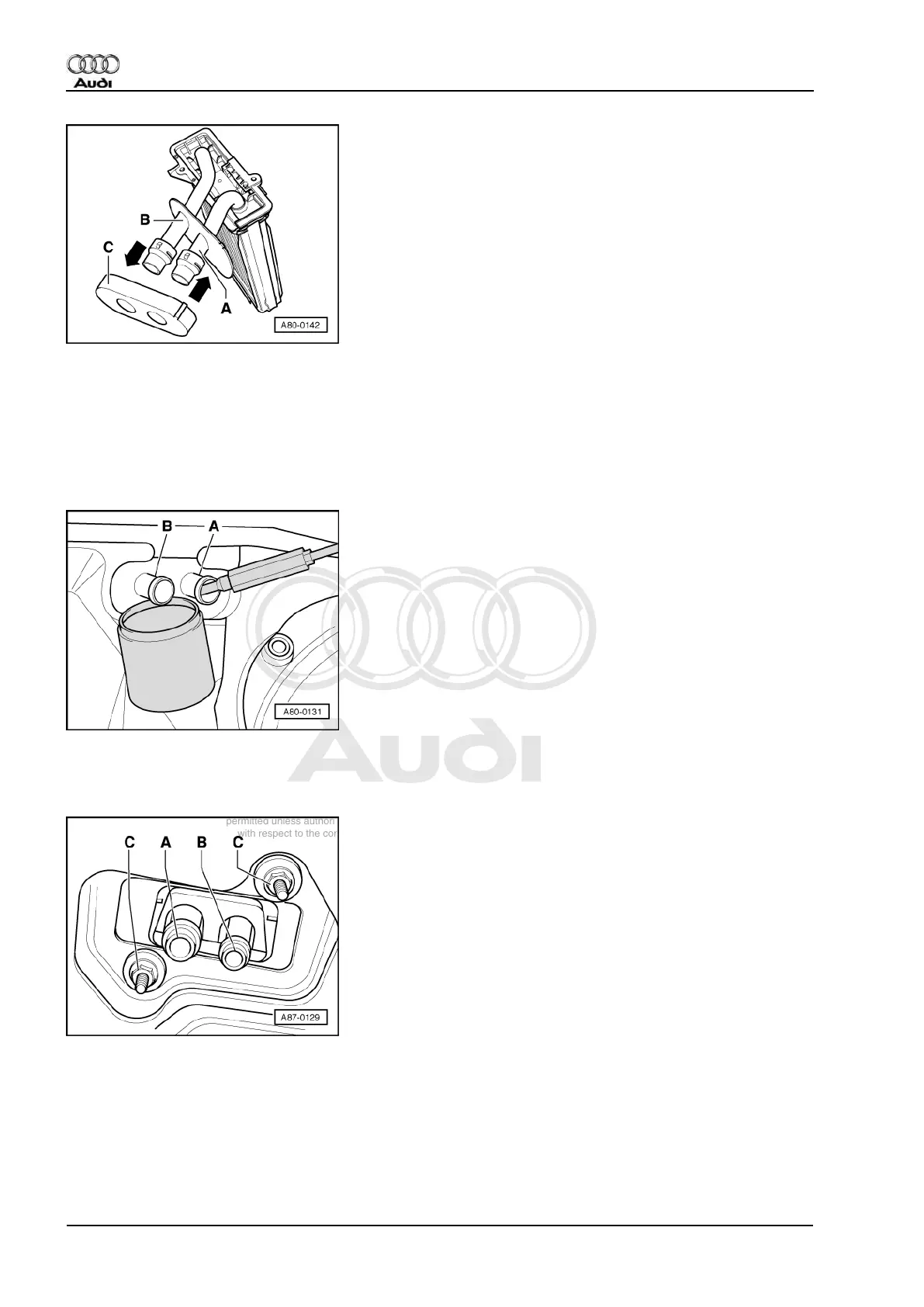

◆ -> Arrangement in a vehicle with map-controlled cooling:
- Refrigerant hose -A-: supply hose from cylinder head
- Refrigerant hose -B-: return hose to water pump
- The connection pipes of the heat exchanger are made of metal, the flow direction of the refrigerant is not
marked.
◆ Bleeding refrigerant circuit
=> Relevant Workshop Manual Engine; Mechanical Components; Repair group 19
- -> Position a container under connection -B- and carefully blow out the refrigerant from the heat exchanger
(using compressed air) via connection -A-.
- Remove expansion valve =>Page 203 .
- -> Seal refrigerant lines and open connections -A- and -B- at evaporator.
- Remove two hexagon nuts with washer -C- (tightening torque 15 Nm).
Note:
A fitting must accompany the seal at the hexagon nut washers.
