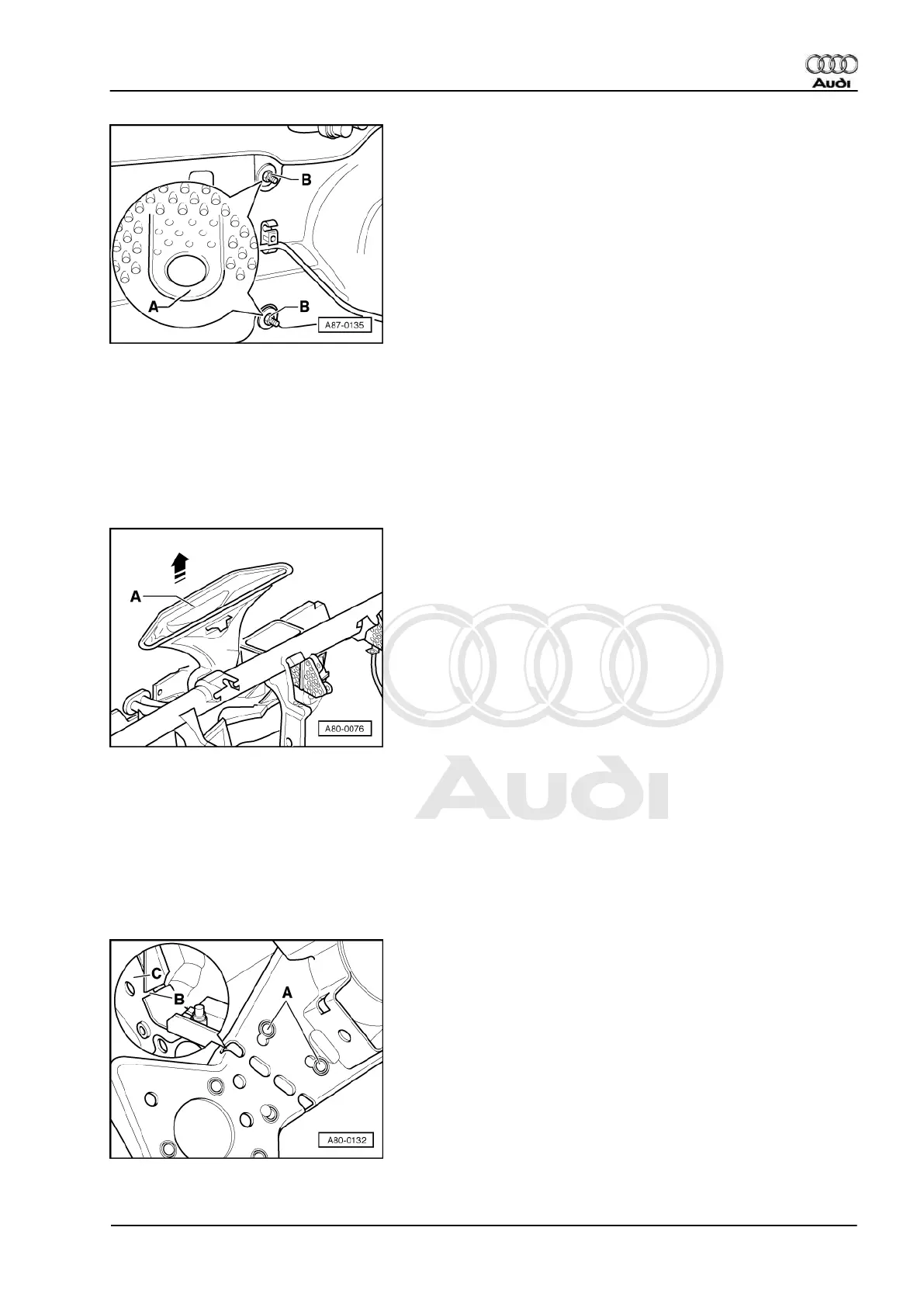

- -> Fold up pre-punched points -A- of the thermal insulation mat and remove the hexagon nuts located behind
with washer -B- (tightening torque 15 Nm).
- Remove glove compartment.
=> Inner Body Assembly; Repair group 68
- Remove driver's storage compartment, centre console and dash panel fascia.
=> Inner Body Assembly; Repair Group 70
- Removing footwell vent =>Page 181
- -> Remove air duct -A- to defroster vent.
- Remove passenger side complete airbag unit with left bracket to dash panel cross member.
=> Electrical System; Repair group 96
- Disconnect earth connection from the air conditioner to pillar-A right bottom earthing point.
=> Current Flow Diagrams, Electrical Fault Finding and Fitting Locations
- Cover all open connectors and air conditioner air ducts to protect metal particles from entering.
=> Electrical System; Repair group 96
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
11.1 - Removing and installing air conditioner (complete) 209
