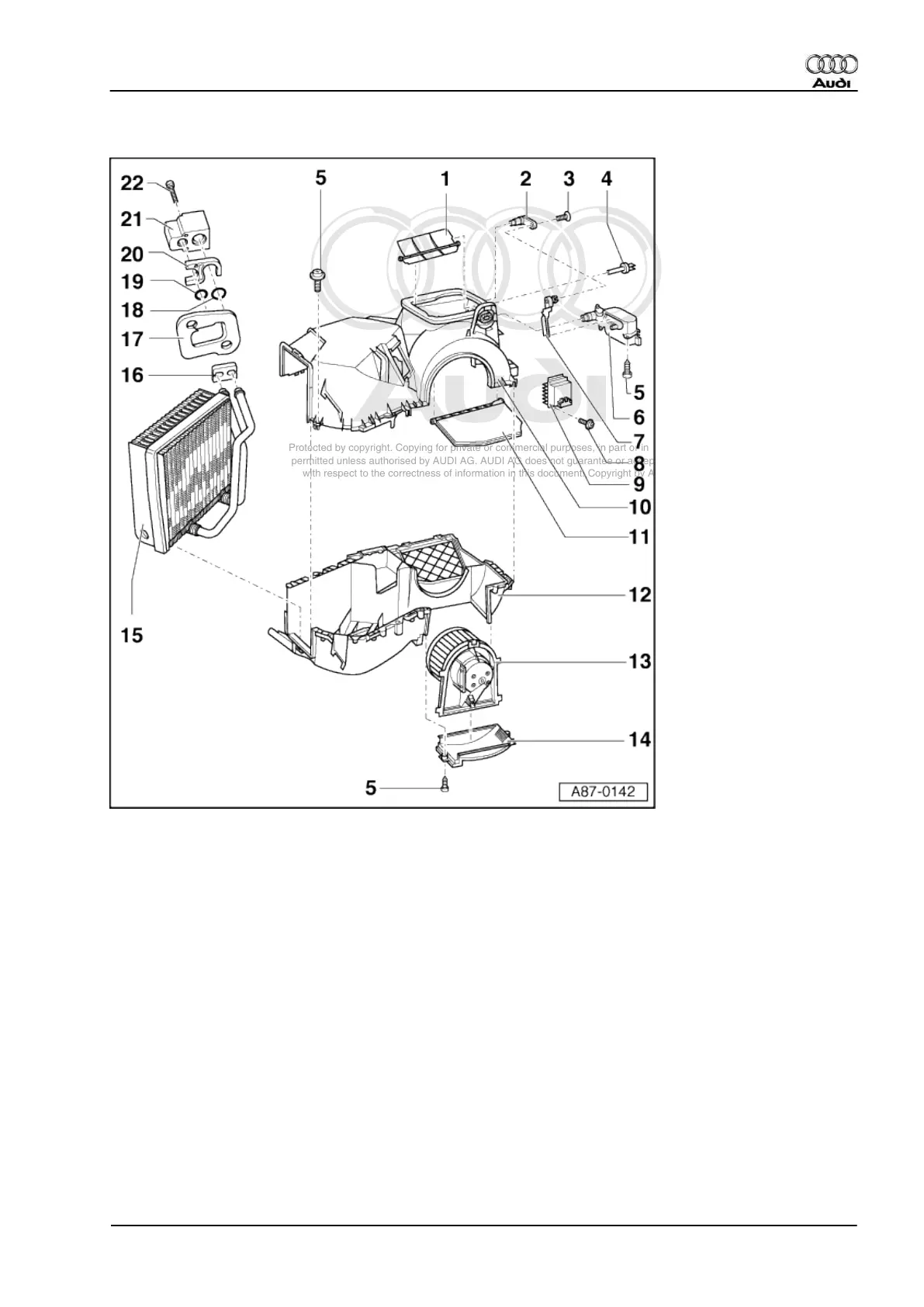

◆ With potentiometer -G113
◆ Removing and installing =>Page 185 .
7 Connecting link
◆ To air flow flap
8 Bolt
9 Blower control unit -J126
◆ Removing and installing =>Page 178 .
10 Top half of evaporator housing
◆ Assembling evaporator housing =>Fig. 1 .
◆ Check intake duct gasket - replace if damaged (seals off the intake duct from the passenger compart‐
ment).
11 Fresh/recirculated air flap
12 Bottom half of evaporator housing
◆ Assembling evaporator housing =>Fig. 1 .
