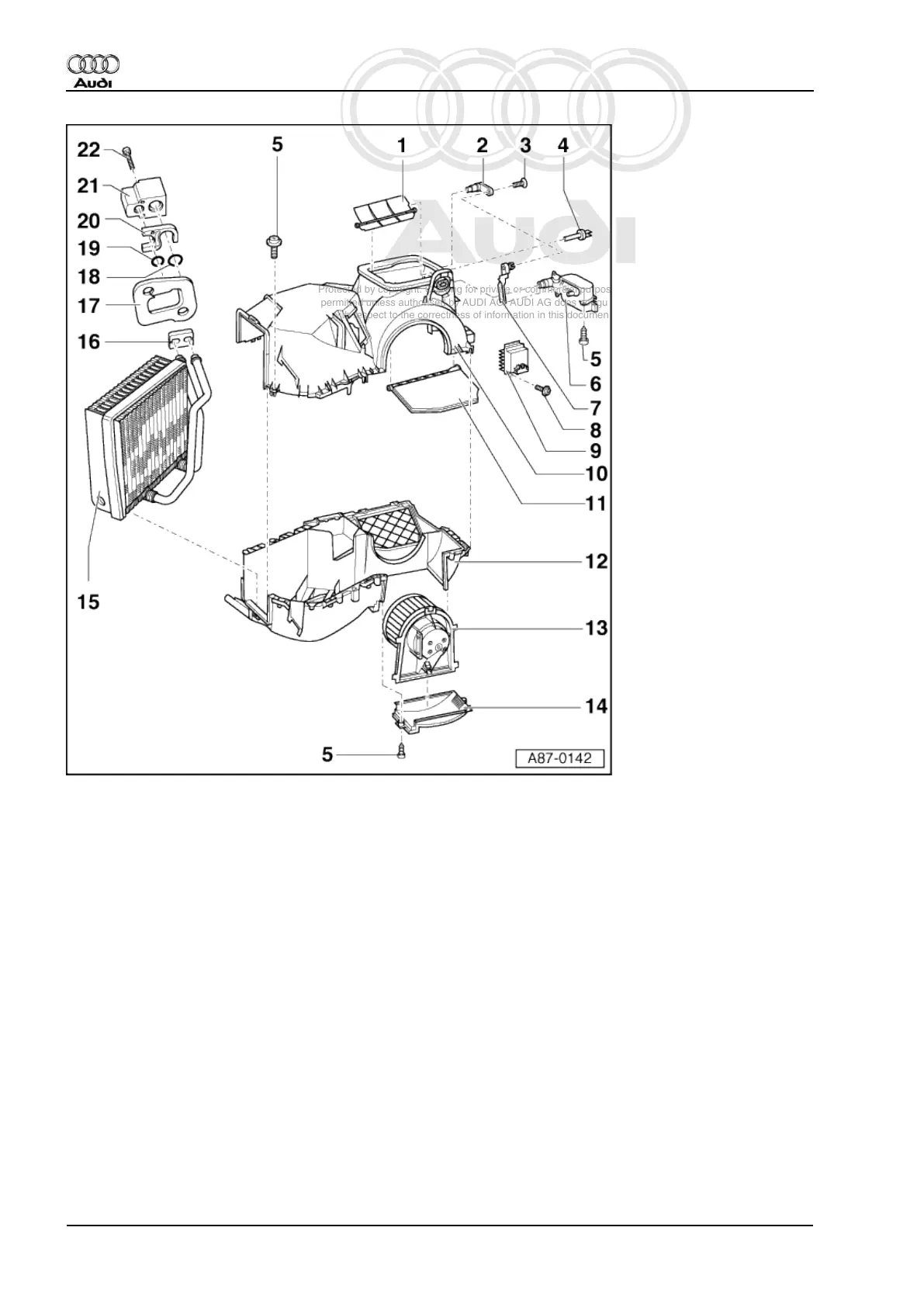

13 Fresh air blower -V2
◆ Removing and installing => Page 179 .
14 Cover
15 Evaporator
◆ Attaching seal to refrigerant lines =>Fig. 2 .
◆ Attaching seal to evaporator =>Fig. 3 .
16 Seal
◆ Attaching seal to refrigerant lines =>Fig. 2 .
17 Seal
◆ Renew
◆ Attaching seal to evaporator housing =>Fig. 4 .
◆ Seals off connection area of refrigerant lines from engine compartment.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
220 87 - Air conditioning
