Audio Note L2 Line Preamplifier - Installing the IEC Socket (AC Socket) and Rocker Switch

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Page 12

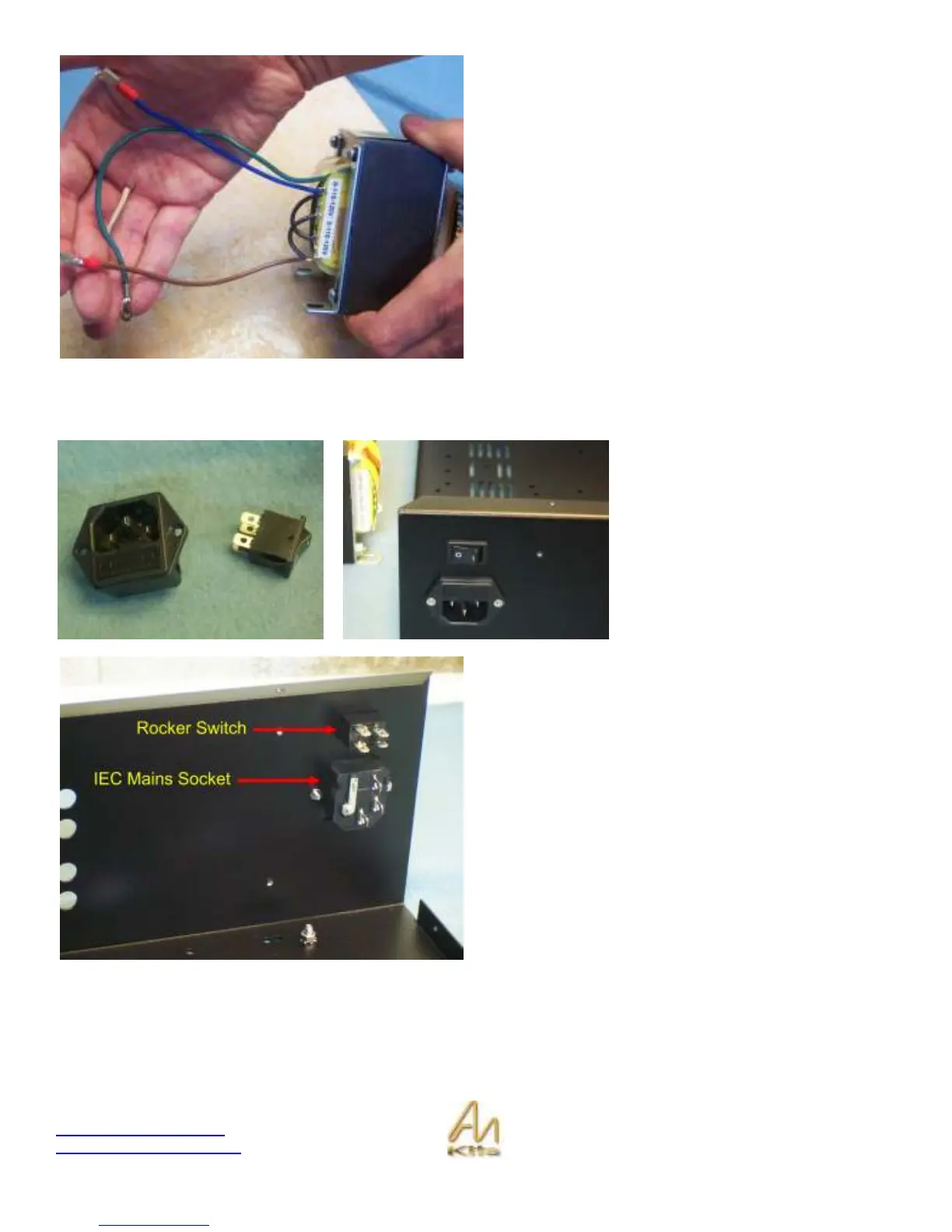

Here, the wires are soldered onto the top-most 0v and the
bottom-most 120v for North American/Canadian 120v.
Remember, we are wiring here for 120v - if your region is
different then you will need to consult the regional wiring
chart to determine how you inter-wire for your region.
Installing the IEC Socket (AC Socket) and Rocker Switch
The rocker switch simply snaps into
pace in the chassis slot.
Use the CSK M3 10mm screw and M3
nut to secure the IEC socket into
position.
Here you can see the correct installation of the IEC socket
and rocker switch from inside the chassis.
