Section 3: M2 Power Supply
In this section we will be assembling the M2 Power Supply Board PCB.

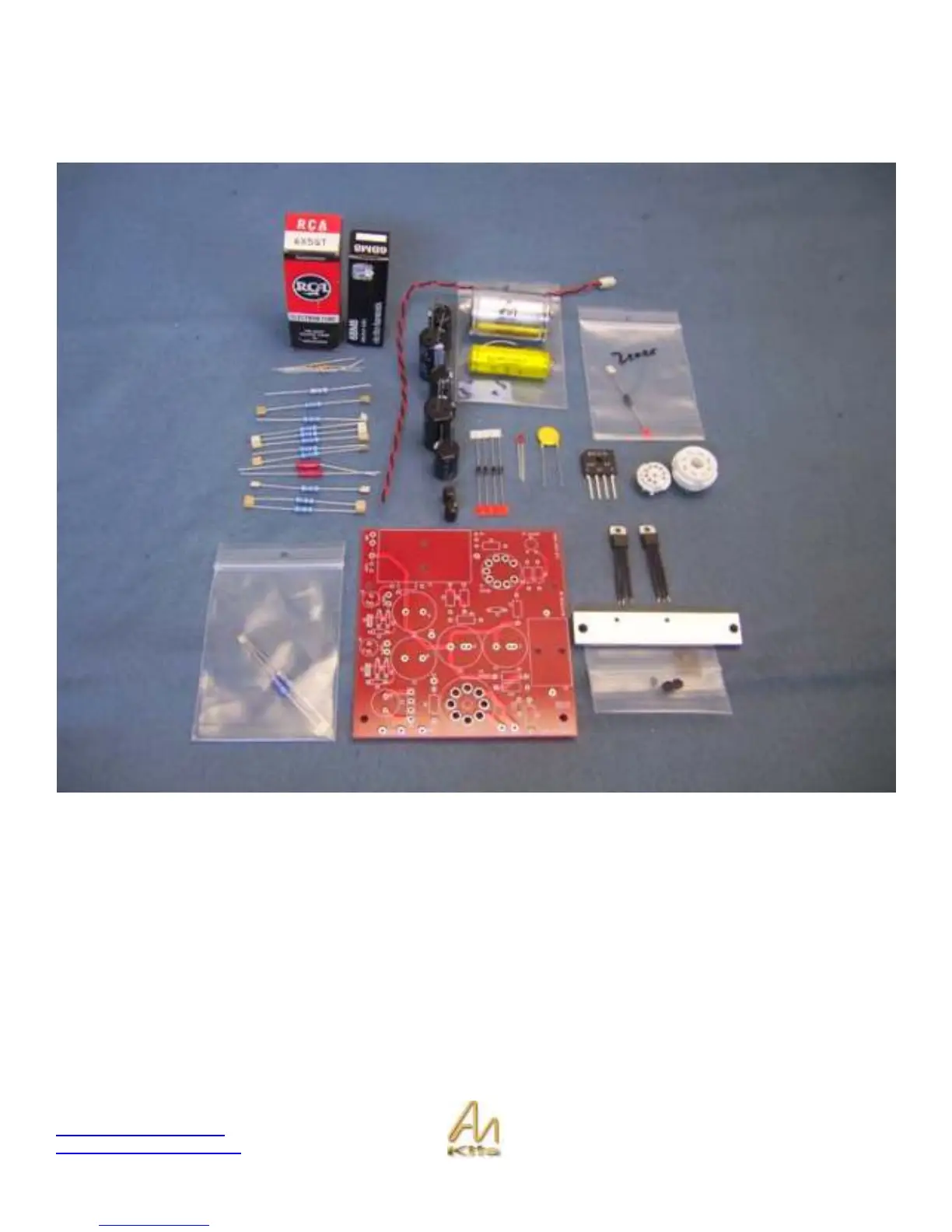

Here is a view of the parts that you will find in the M2 Power Supply Kit Bag
Most of the parts for this section can be found in the M2 Power Supply bag (although the filament wires may be located
elsewhere).
For an experienced builder you can look at the parts list on the next page and get started but I would read through the
step by step instructions as we feel that this is the best and most efficient error free method of building the board.
