Audio Note L2 Line Preamplifier - Line Board Parts List; Installing the Board Spacers; Valve Base Installation

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Page 49

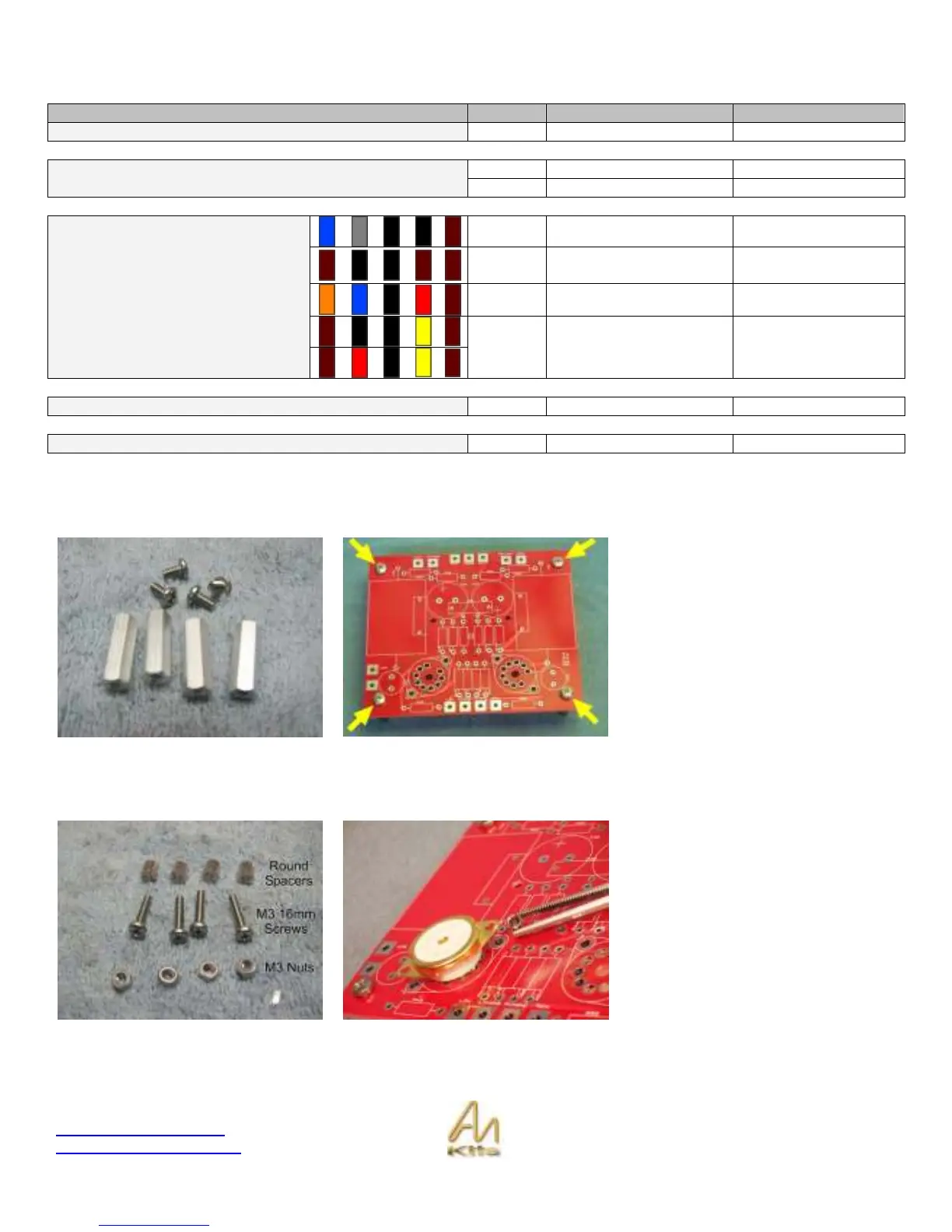

Line Board Parts List
Category Quantity Part Designator
Capacitors (Electrolytic) 2 470uf 16v C36, C37
1 .47uf Capacitors (Non-polarized)
2 .47uf, 600v C34, C35
2 680R R42, R43
6 1K R39, R46, R47,
R48, R51, R52
4 36K R40, R41, R44, R45
Resistors
4 1M
or
1M2
R37, R38, R49, R50
Valve Bases 2 9 pin gold Valve Bases
Tubes 2 ECC82/12AU7/5814 V5, V6
Installing the Board Spacers
Start by installing the M4 spacers and
M4 x 10mm screws to secure them in
position.
Valve Base Installation
Install the 9 pin valve bases.
Use the spacer, M3 screw, and nut
provided to secure them into position -
they can only go in one way.
