Page 7
Section 2: Mechanical Assembly
In this beginning section we will start by installing the 4 feet from the Fittings Bag then we will install the Mains transformer
and Choke as shown in the pictures below.

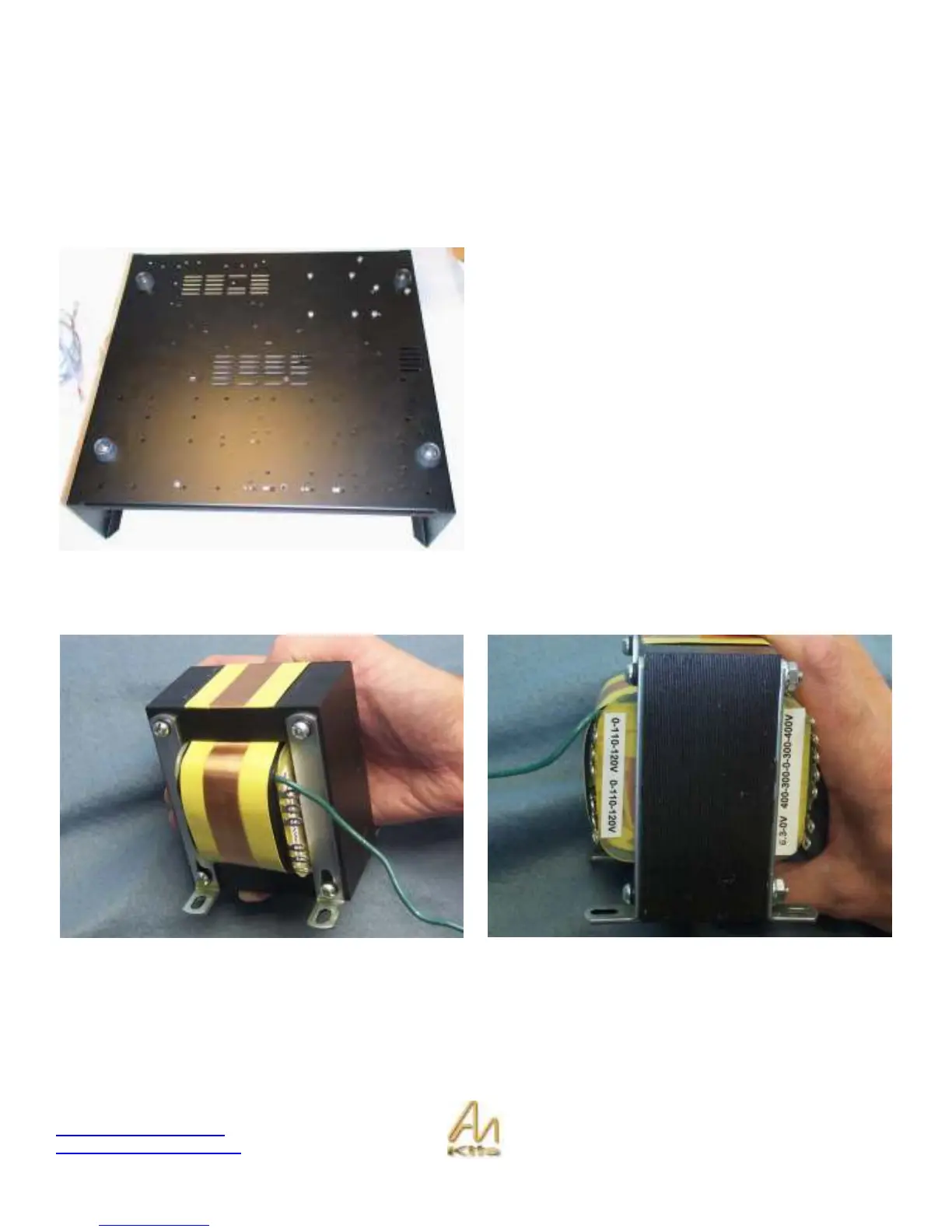

Installing the feet
Insert 4 feet in the bottom of the chassis.
Fix them each in place using an M4 nut and washer.
Mains Transformer, Choke, and Mains Installation
Above you can see the Mains transformer that is used with the M2 Power Supply. The first step is to take the supplied M4
GND lug from the Hardware Bag and solder it to the end of the green wire.
