Audio Note L2 Line Preamplifier - Installing the Choke; Installing the Mains Transformer

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Page 13
Installing the Choke

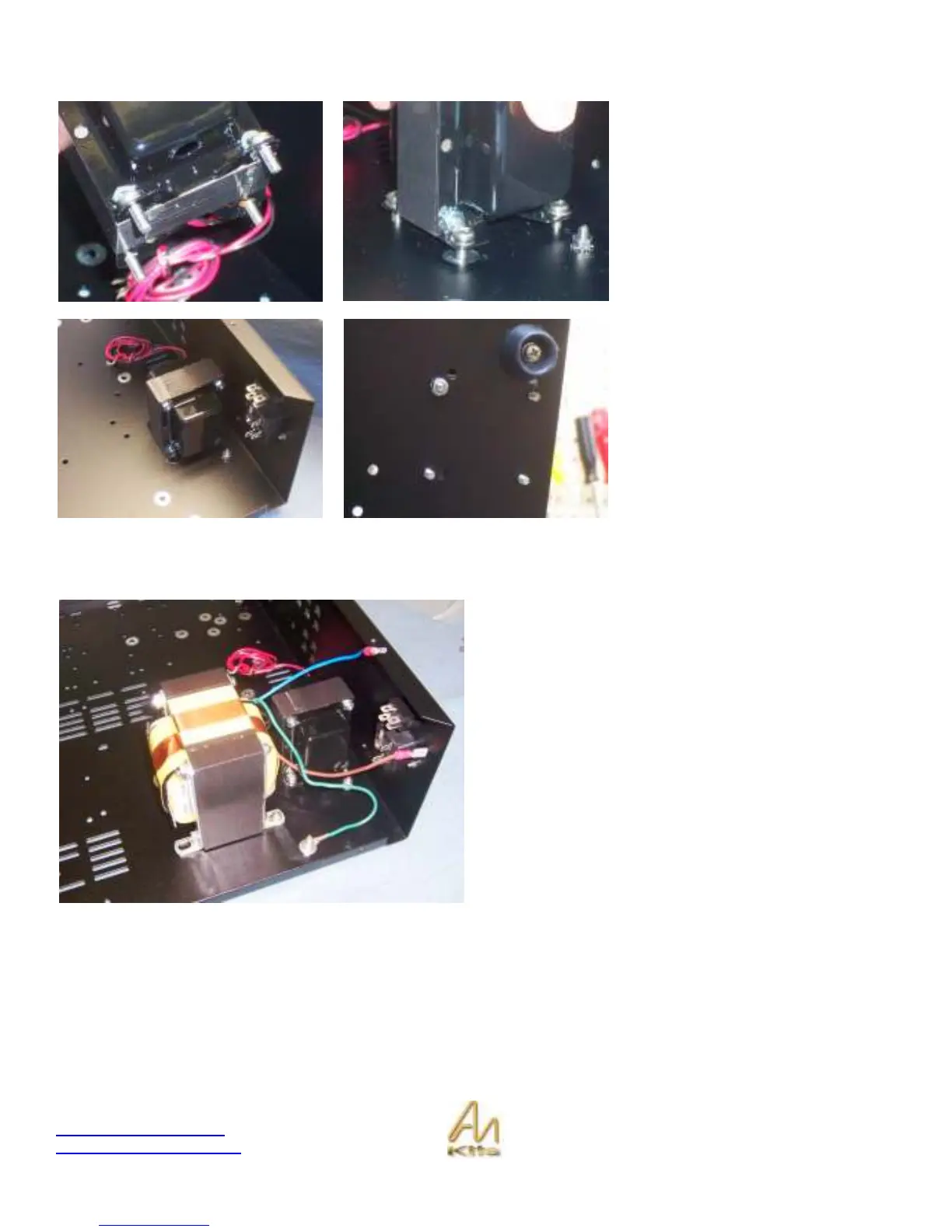

Since the Choke fits into a tight
location we suggest you put the
screws and washers into position
through the holes in the choke covers
– then lower the choke into position
making sure that you align with the
non painted hole - see opposite.
Note the wires at the back of the
choke.
The left-most picture shows the final
position of the choke from inside the
chassis.
The central picture shows its position
under the chassis where you will now
secure the 4 holes of the choke with
serrated M4 washers and M4 nuts.
Installing the Mains Transformer
The picture opposite shows the correct orientation for the
Mains Transformer.
The following instructions will show how this is achieved.
