Page 33

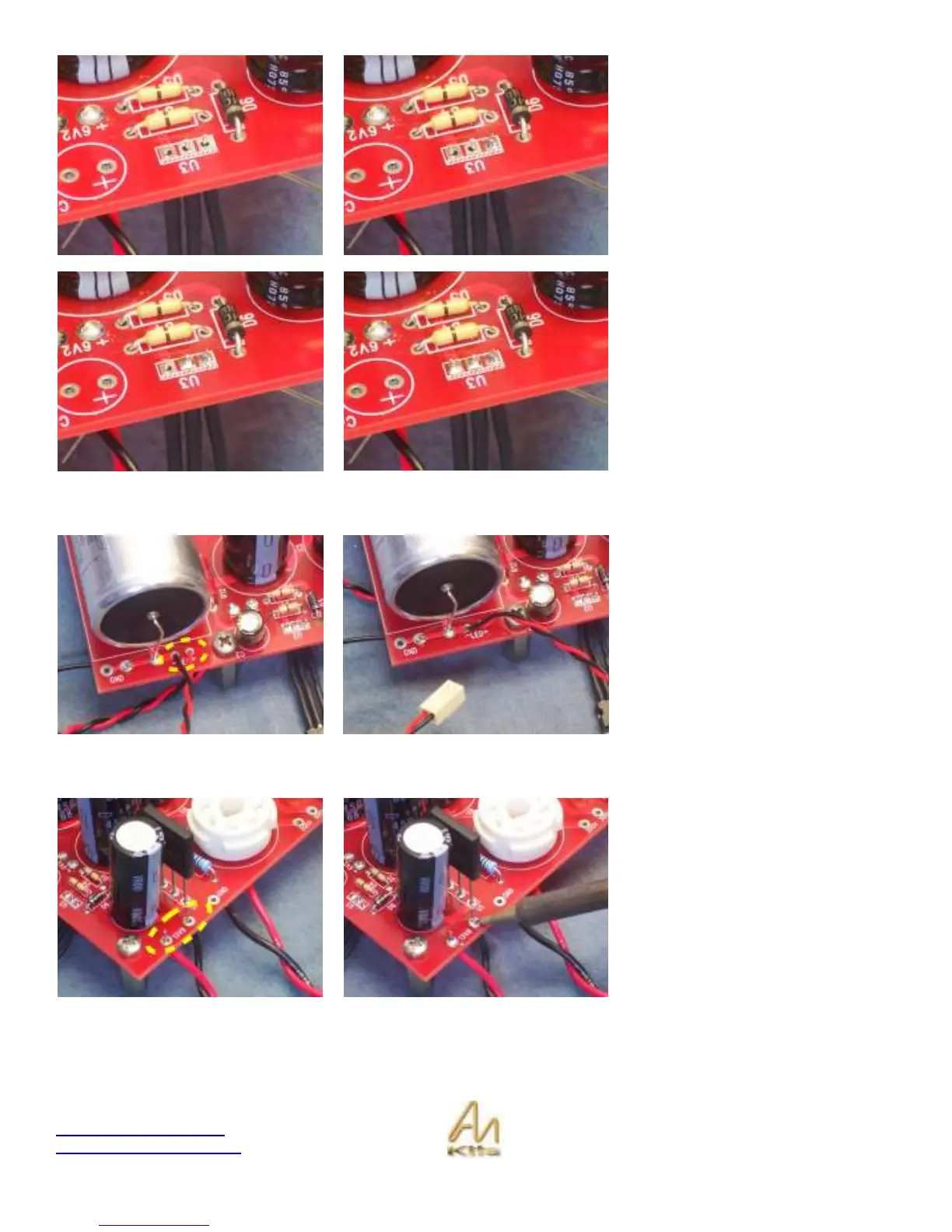

The pictures above and opposite show
a successfully configured regulator.
Once these components are in place
you can then install the remaining two
electrolytic capacitors (C2 and C4).
Installing the LED Harness
Take the LED Harness from your M2
PS bag and you can solder it onto the
board as shown opposite. Solder from
underside of the board.
Remaining Wire Connections
Take the remaining thick Black &
White twisted wire from the BAG#1
and solder it to the 13V6 locations on
the PCB.
It does not matter which is red or black
as it is an AC voltage signal.
To Next Page
