Page 36
Inter-wiring to the Mains Transformer
I would suggest at this stage to REMOVE the black shield so that we can work on this side of the chassis.

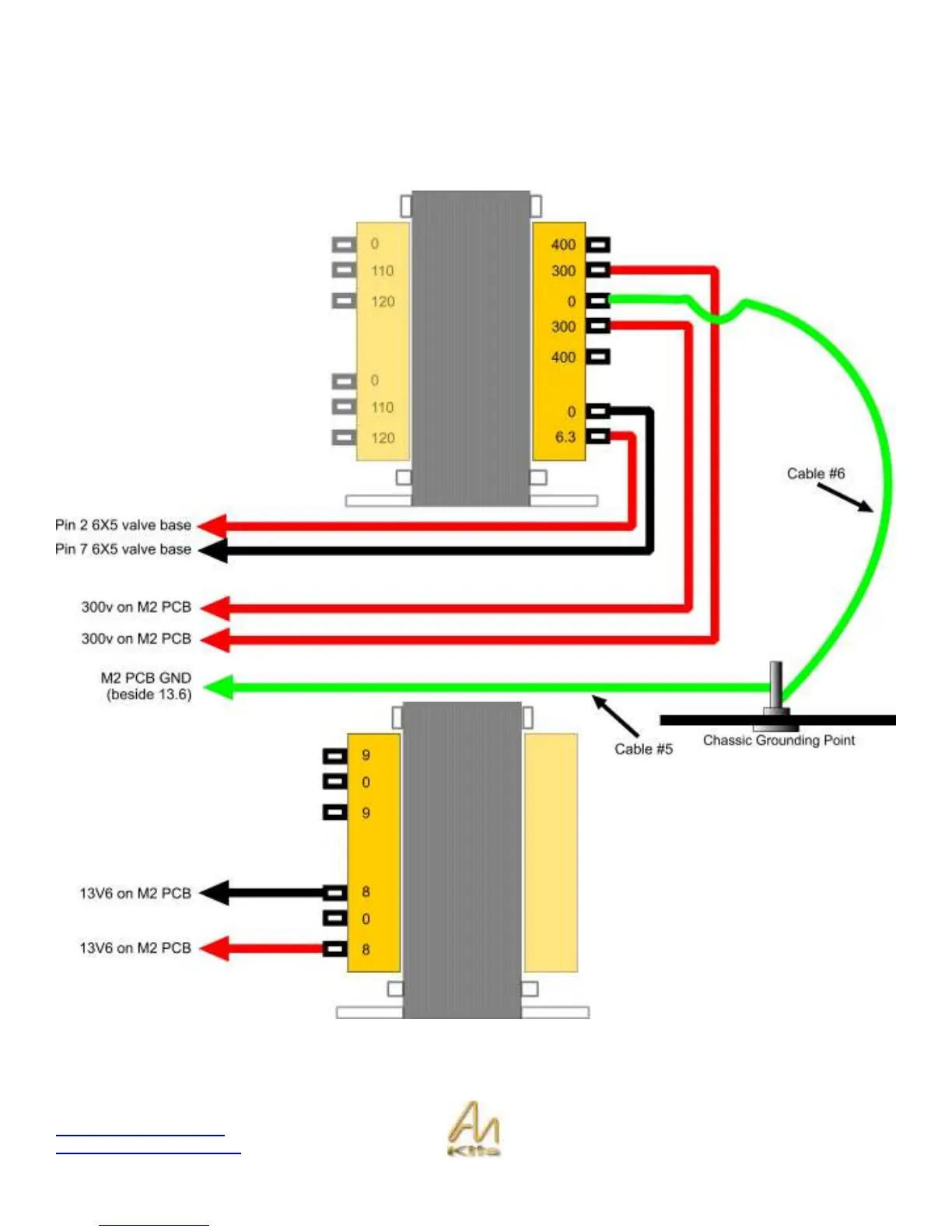

The following graphic shows the wiring between the M2 PCB and Mains Transformer. Note that the ‘second’ transformer
is simply another view of the same mains transformer.
