Audio Note L2 Line Preamplifier - Phono Board Components and Construction

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Page 69

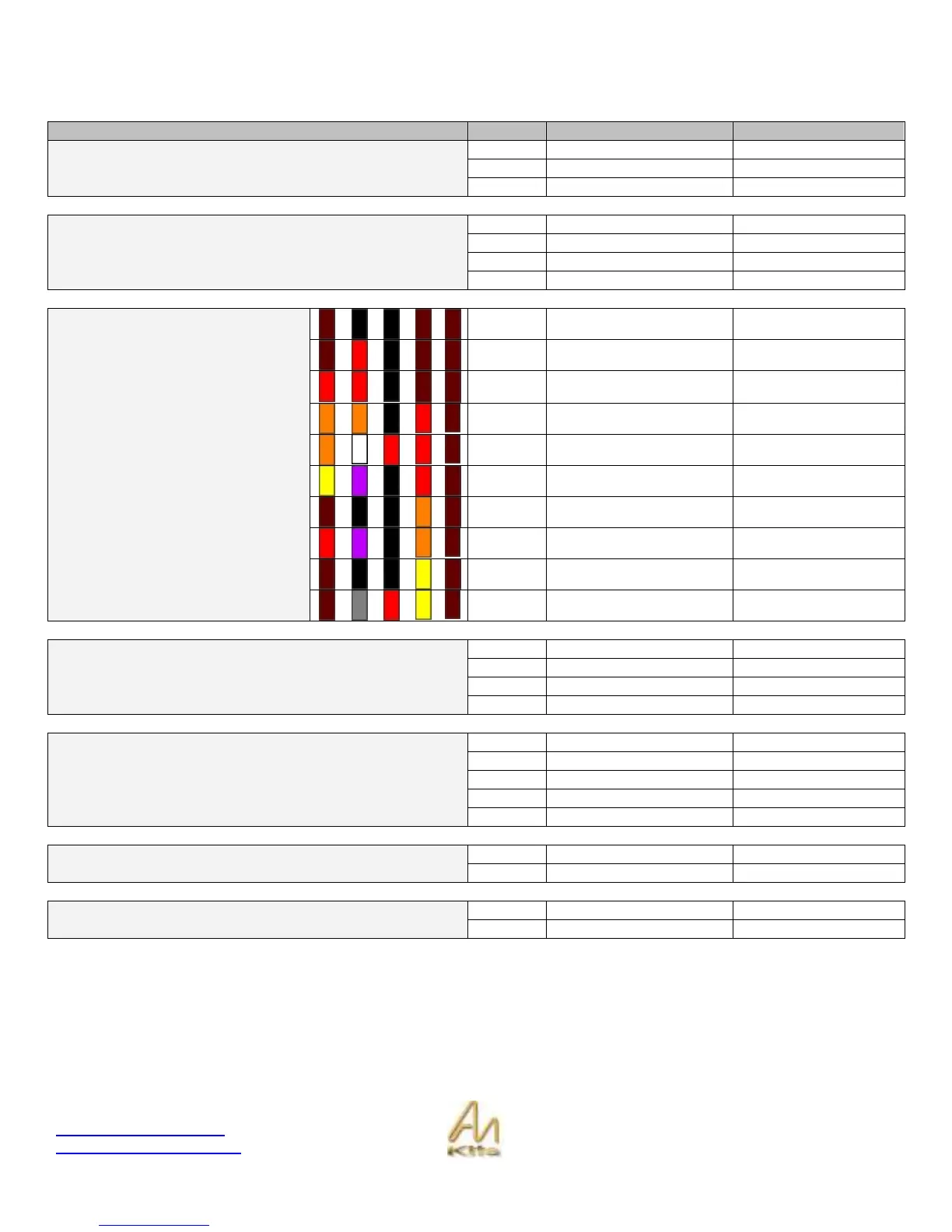

Phono Board Parts List
The Complete Parts list for the Phono Board is shown below.
Category Quantity Part Designator
2 470uf 16v C9, C10
2 100uf 10v C1, C2
Capacitors (Electrolytic)
1 47uf 450v C13
2 .047uf C3, C4
2 .22uf C11, C12
2 2.7n C7, C8
Capacitors (Non-polarized)
2 8n2 (8200pf) C5, C6
2 1K R3, R4, R15, R16
2 1K2 R5, R6
1 2K2 R21
2 33K R18, R19
2 39K2 R11, R12
2 47K R1, R2
2 100K R9, R10
2 270K R7, R8
2 1M R19, R20
Resistors
2 1M82 R13, R14
2 9 pin gold Valve Bases
2 Tube shields
2 GND Lugs
Fittings
1 GND Post Kit
1 AN-A shielded Input
1 Short Twisted Filament parallel filaments
1 Long 6V2 Filament M2 Filament
1 Red PTFE 20 M2 PS to HT
Wire
1 Black PTFE 20 M2 PS GND
1 12AX7/ ECC83 Tubes
1 12au7/ECC82
4 Spacers Hardware
8 Screws
