Page 27

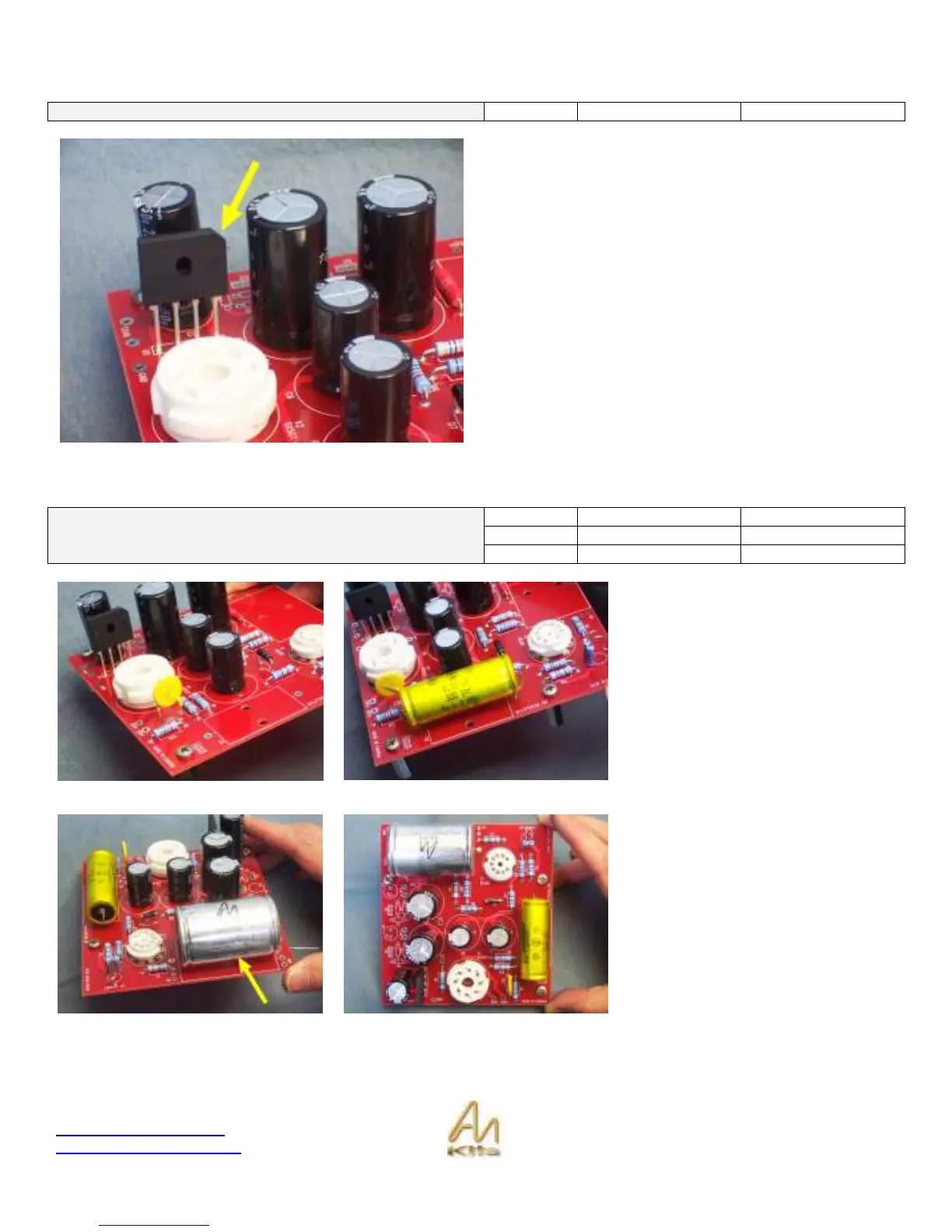

Installing the Bridge Rectifier
Semiconductor Devices 1
KBU6J6A
U1
Install the Bridge Rectifier into position in U1.
Note the notch is located facing into the middle of the board
- you will also see a corresponding notch stenciled on the
PCB.
Installing the Non-Polarized Capacitors
1
Disc 4700uF 3000v
C10
1
.22uf 600V
C8
Capacitors (Non-polarized)
1
.47uF 600V
C1
Install in C10 the DISC capacitor – this
capacitor is not polarized so it does
not matter which direction you put it in.
Now the same for C8 which is called a
FILM capacitor and also is not
polarized so it does not matter the
orientation. You will notice on the
.22uF capacitor it designates 300 V~.
This means that it is rated for 300V AC
which is like 600V DC - well within the
range of this power supply.
Next step is to install the .47uF AN
FILM capacitor into position.
Again this capacitor is not polarized so
the orientation does not matter
