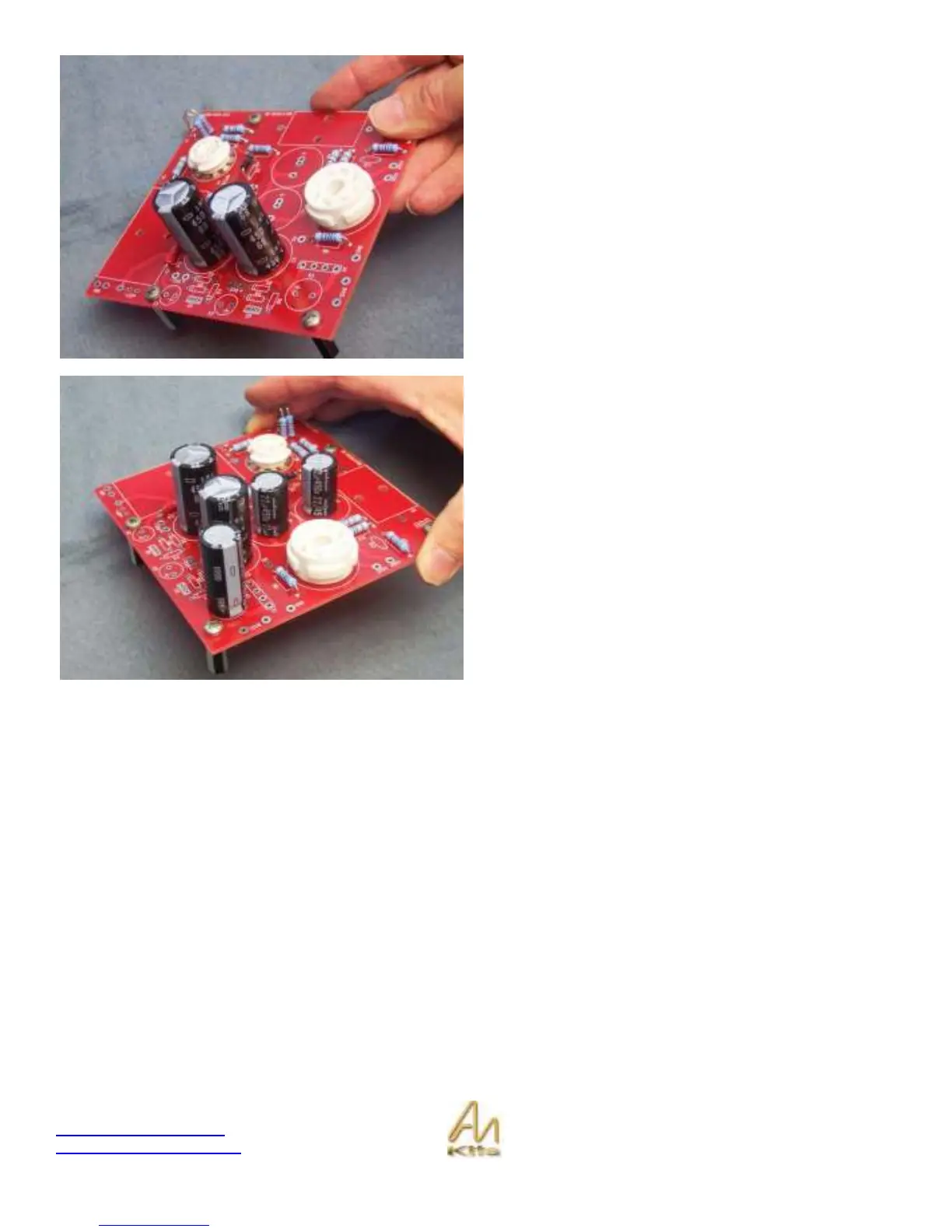

Here we can see both 68uF capacitors (C3 and C5)
correctly installed.
Install the remaining electrolytic capacitors that are required
at this stage (i.e. C9, C6, and C7).
You can see these installed in the picture opposite.
