Page 70

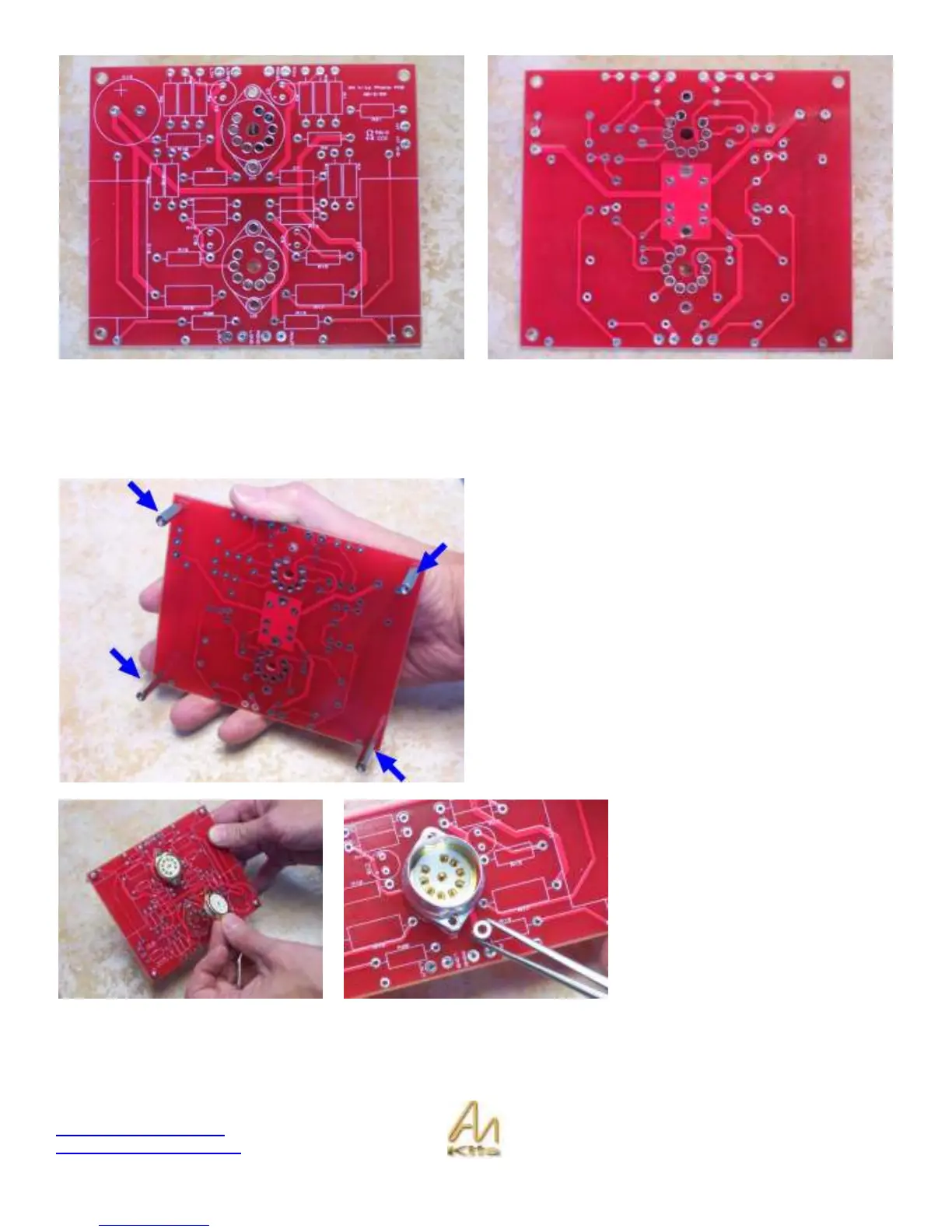

Above we have a view of the top and underside of the board.
Installing the Spacers and Valve Bases
First install the M3 Hex spacers into position at the four
corners of the board.
Position the 9-pin valve bases onto the
board – they can only go in one way!
For each valve base, install the bottom
of the metallic tube shield over top of
the valve base – then using a small
round washer from the hardware bag –
place in position for the M3 screw to
thread through.
