Page 45

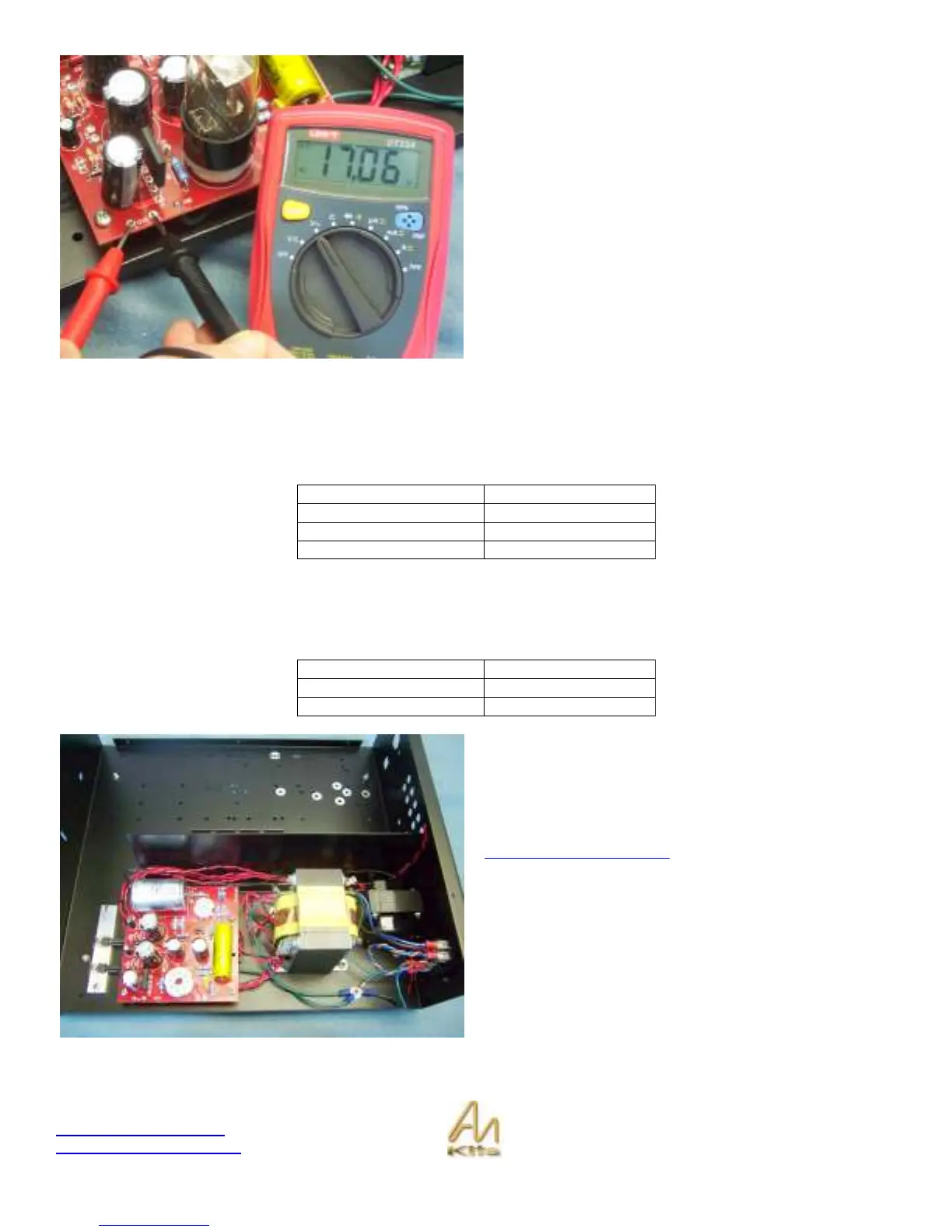

While in AC mode measure the 13V6 pads on the M2 PCB
– We have 8 0 8 taps which should give us roughly 16V
AC.
Voltage Check Summary
DC Voltage Checks
Location Approx Reading
B+ to GND 260v DC
+6V2- 12v DC
+6V2- 12v DC
AC Voltage Checks
These are optional if DC voltages are correct.
Location Approx Reading
300 300 >600v AC
13V6 13V6 16v AC
If you have correct voltage readings on the M2 Power
Supply then Congratulations are in order and you have
completed the first half of the kit.
Feel free to contact us if you have any problems with your
power supply or have any questions up to this point
audionotekits@rogers.com
Also feel free to give us an update that things are going
according to plan.
