Page 9

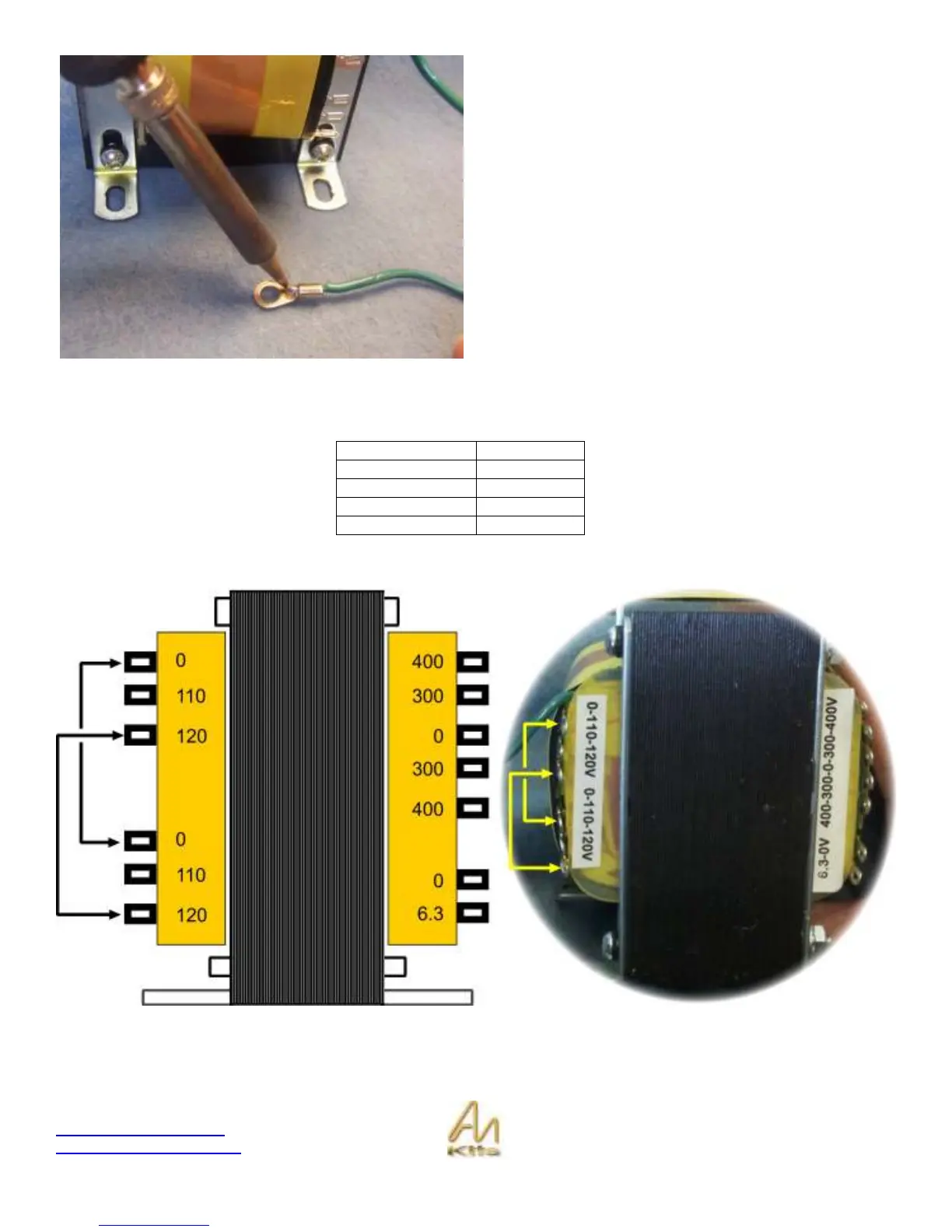

Add solder to secure the GND Lug to the end of the wire.
Configuring the Primary Winding for your World Region
Next step is to decide what world voltage you require – for example we have some of the most popular regions listed
below:
United States 120v
Canada 120v
UK 230v or 240v
Europe 230v / 240v
Hong Kong 220v
In order to wire up the for 120V operation we will need to connect the primaries as shown below:
The graphic shows above the correct wiring for of the Primaries for 120V operation where the 0 of one winding connects
to the 0 of the second winding & the 120 of one winding connects to the 120 of the second primary winding. Check the
chart on the next page for the correct PRIMARY winding for the world Voltage you live in.
