Page 32

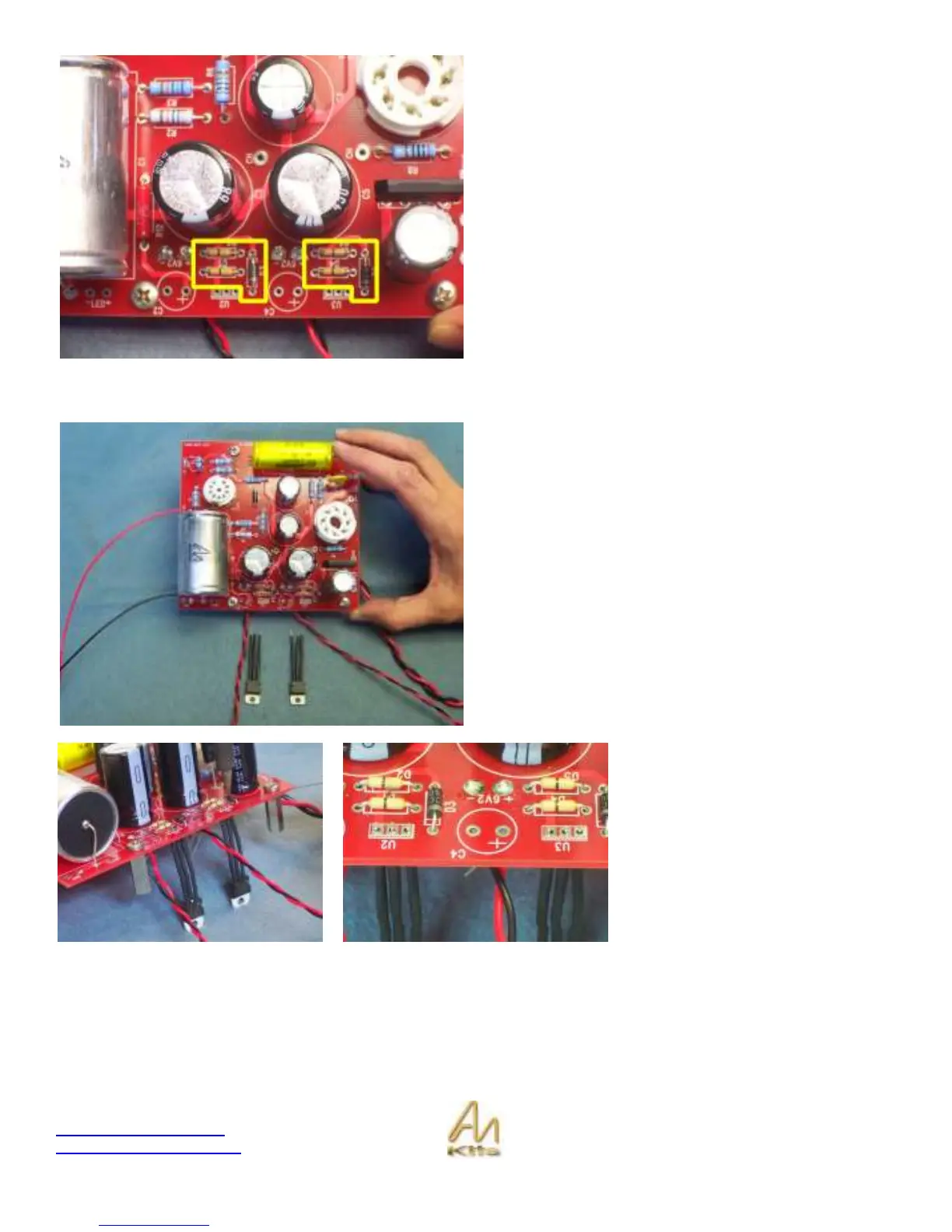

The 1N4007 Diodes are polarized and therefore need to be
installed correctly. In the picture above you will note the D3
& D6 designators which shows a bar – this bar lines up with
the gray strip on the zener diode – Note how they are
correctly installed.
Go ahead and install the zero ohm components into
position and the zener diodes.
Regulator Installation
Two regulators have been provided with the kit – these
have been specially made to an exact length by AudioNote
Kits. They use a solid core wire so that it is easy to position
on the board through the tiny holes – Read this section
before doing any soldering!
IMPORTANT: Note the position of the regulators in the
pictures below.
Place the regulators into position as
shown opposite and below.
