Page 52

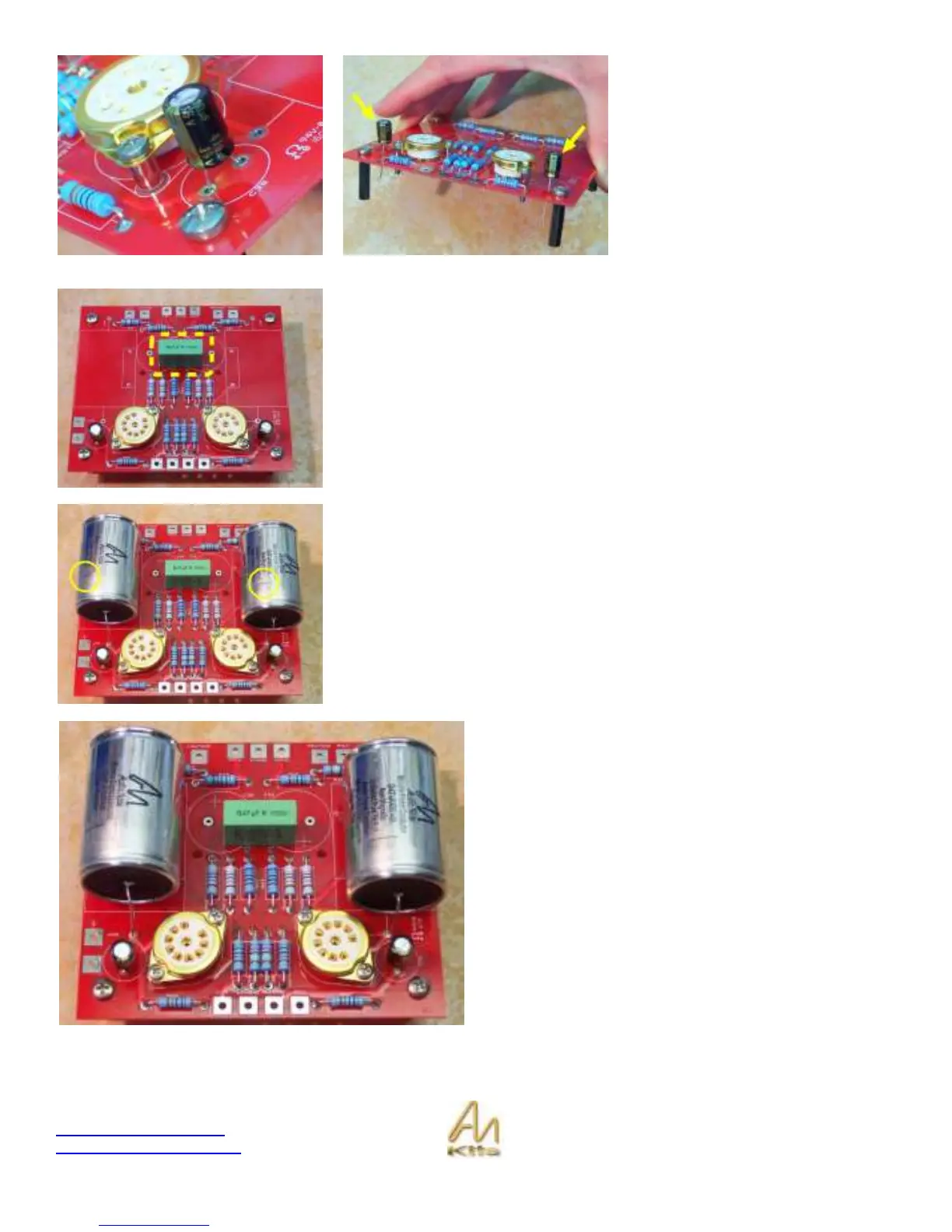

We will start by installing the two
electrolytic capacitors.
As you are aware, the stripe is the
negative side. Note that the Board is
not marked with a ‘+’ or a ‘-‘ so you will
have to follow our instructions - You
will see the stripe of the electrolytic
capacitor is facing the input side of the
board – If you look underneath you will
see the Negative side of the capacitors
connect to Ground.
Now take the .47uf cap that we use as a bridge.
It is non-polarized so it does not matter the direction of installation – and position
it as shown opposite!
Note that your capacitor may not look exactly like the one shown in the picture.
Next step is to install the .47uf 600v AN Film capacitors as shown with the bar
facing the front of the board - Installing these the other way round is fine also but
we recommend following our picture opposite.
Here is a picture of your completed L2 Line Board!
