Part names and functions
11
3
Input connector
Connect a microphone, a guitar cable, etc.
4
Indicator lamp
Lights when the device is on. This lamp also shows the status of this transmitter. Refer to "Indicator lamps" (p. 73)
for details.
5
Latch
6
Display
Shows the current status.
If no buttons are pressed for a period of 30seconds, the display will turn off. When the display turns off, press the
power button to turn it back on.
7
Power button
Turns the device on/off and performs pairing.
8
Belt clip
9
Charging terminal
10
USB port (USB Type-C
™
)
Use this port when updating the firmware.
11
Battery cover

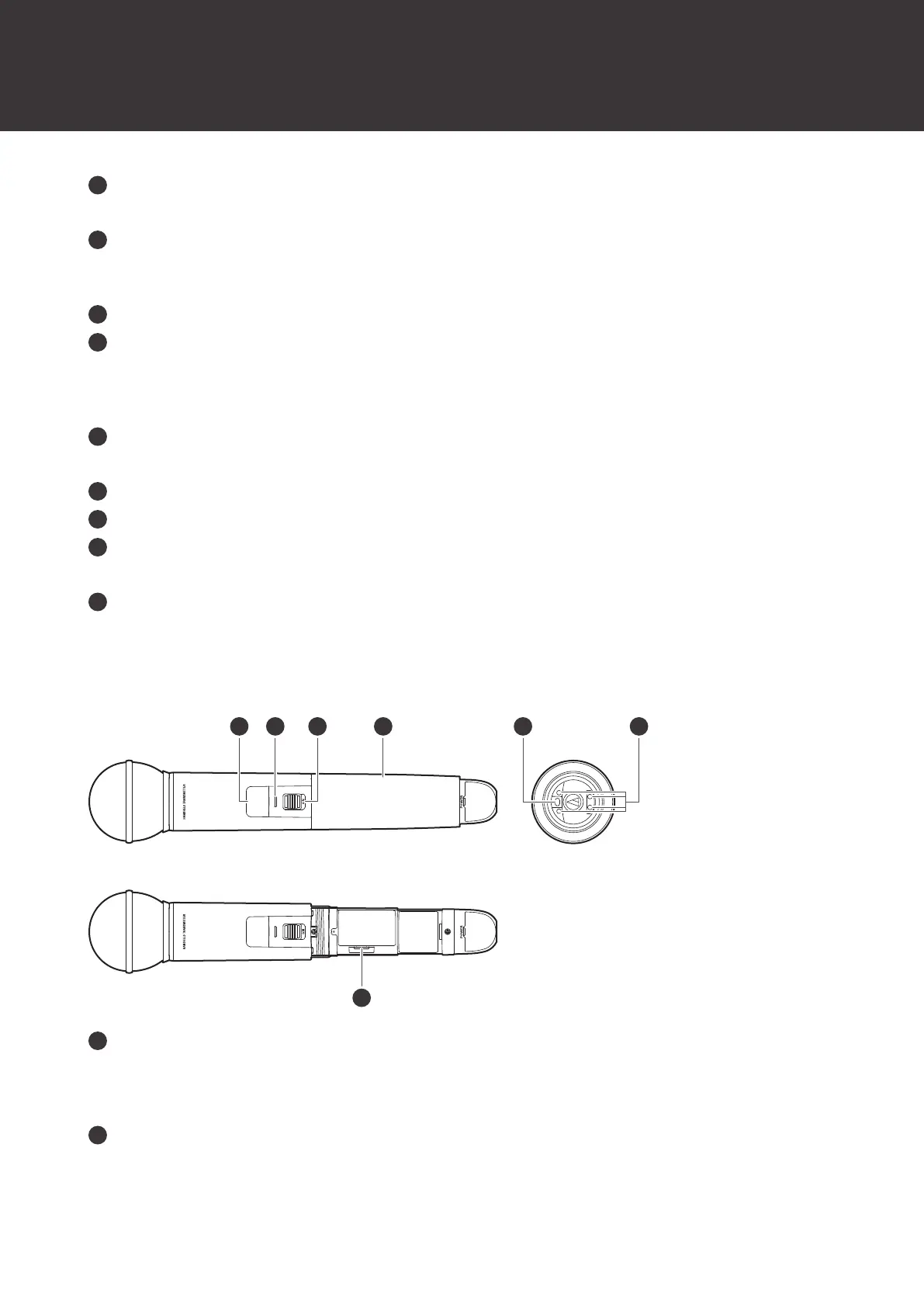

ATW-T1402
2 4
7
3 51 6
1
Display
Shows the current status.
If no buttons are pressed for a period of 30seconds, the display will turn off. When the display turns off, press the
power button to turn it back on.
2
Indicator lamp
Lights when the device is on. This lamp also shows the status of this transmitter. Refer to "Indicator lamps" (p. 73)
for details.
