AudioCodes 405HD - Figure 2-1: Front View; Table 2-1: Font View Description

405HD IP Phone for Microsoft Skype for Business
User's Manual 12 Document #: LTRT-12044

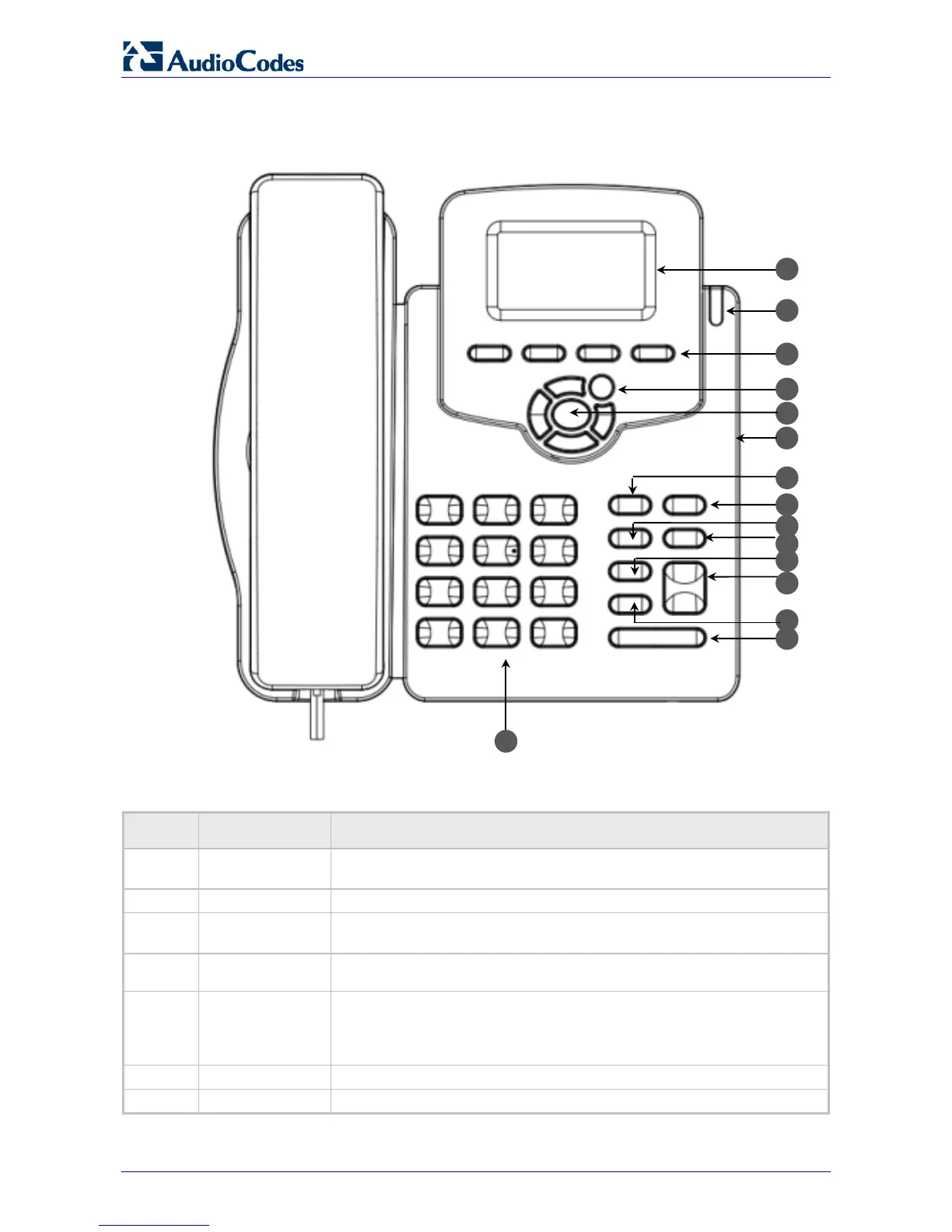

Figure 2-1: Front View
Table 2-1: Font View Description
Item # Label/Name Description
1 Screen
LCD (Liquid Crystal Display) - interactive screen displaying calling
information, enabling you to set up phone features.
2
Ring LED
Flashing green light indicates an incoming call.
3 Softkeys
See Section 3.2 on page 18 for details on the four softkeys and the
available functions they offer.
4
MENU
Accesses menus (1) Call Log (2) Calendar (3) Speed Dial (4) Settings
(5) Device Status (6) Administration (7) Favorites (8) Log upload.
5
Navigation
Control / OK
Press the upper rim to scroll up menus/items in the screen. Press its
lower rim to scroll down. Press its left or right rim to move the cursor left
or right (when editing a contact number for example). Press the OK
button to select a menu/item/option.
6 USB port
[On the side of the phone] Allows USB headset connectivity
7 VOICE MAIL
Retrieves voice mail messages.
