AudioCodes 405HD - Getting Started; Getting Acquainted with the Phone Screen

User's Manual 3. Getting Started
Version 3.0.1 17 405HD IP Phone for Microsoft Skype for Business
3 Getting Started
This section gets you started with the phone. The phone features a screen, providing an intuitive,
menu-driven user interface for configuring the device and viewing call information.
Before using the screen, you must sign in (see Section 4 on page 21).
3.1 Getting Acquainted with the Phone Screen
This section gets you acquainted with the phone screen.
The figure below shows the screen in idle state.

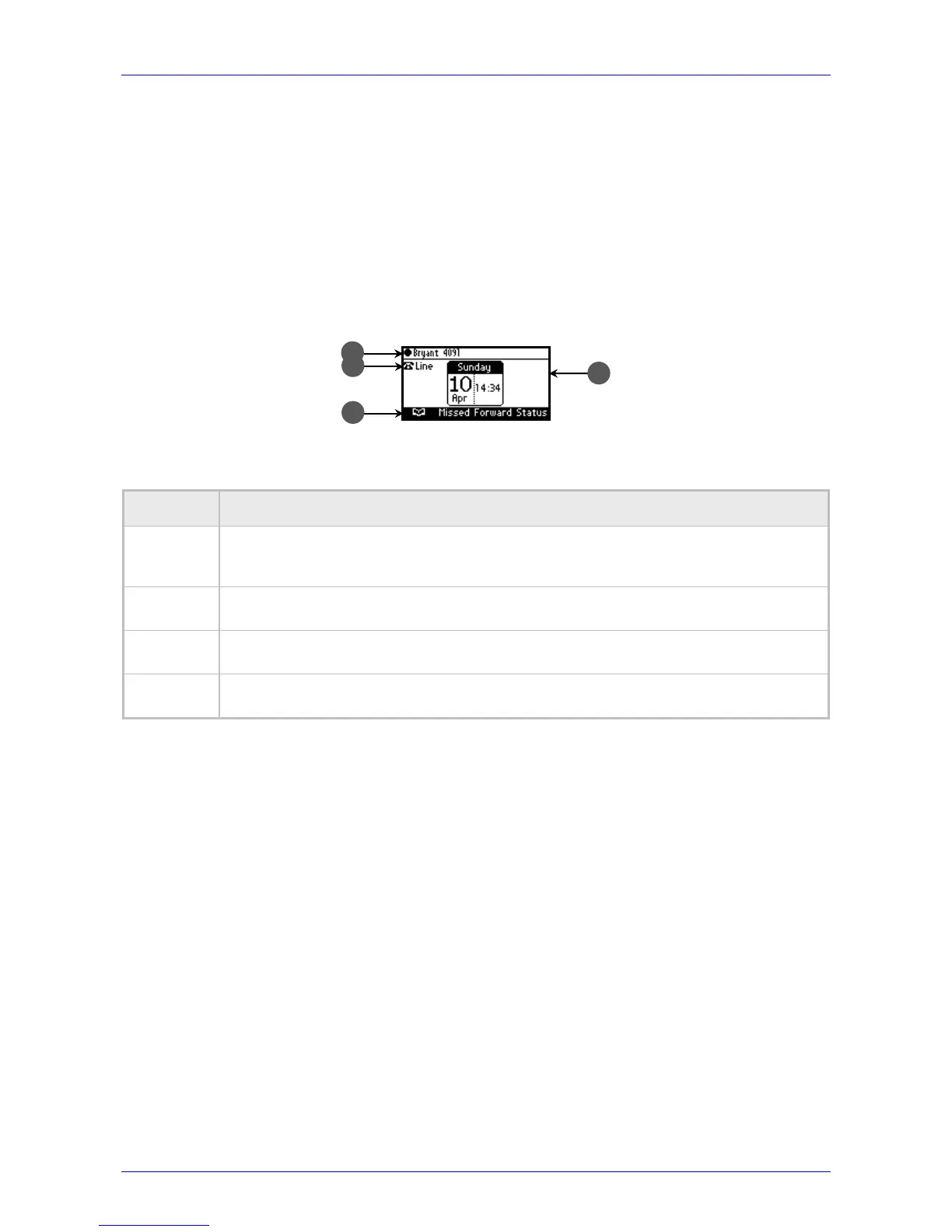

Figure 3-1: Phone Screen in Idle State
Reference:
Table 3-1: Phone Screen in Idle State
Reference Description
1
Displayed name configured by your system administrator; see the Administrator's Manual.
Adjacent to the name is the Presence status (Available, Busy, Do not disturb, Away, or Be
right back). See Section 6.17 on page 54 for details.
2
Extension Line configured by your system administrator. See the Administrator's Manual
for details.
3
Softkeys; to activate, press the key on the device, below the screen, corresponding to the
softkey. See Table 3-2 for softkey descriptions.
4
Day, Date and Time, automatically retrieved from the Network Time Protocol (NTP) server,
enabled by your system administrator.
1
2
4
3
