450HD IP Phone
User's Manual 14 Document #: LTRT-14820
2.2 Device Description
Use the graphics below to identify and familiarize yourself with the device's hardware functions.
2.2.1 Front View
The front view of the phone is shown in Figure 2-1 and described in Table 2-1.

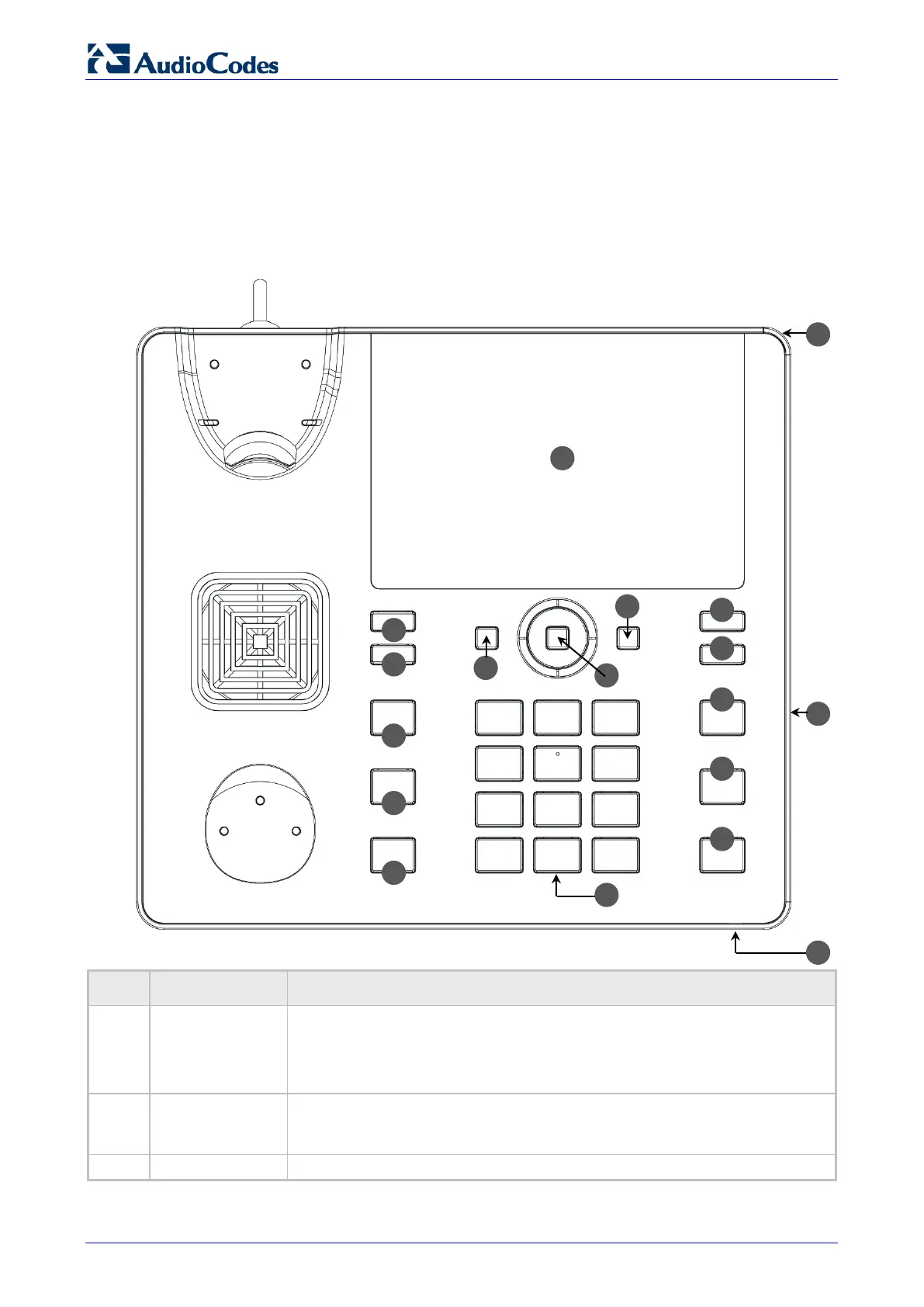

Figure 2-1: Front View
`
Table 2-1: Font View Description
Item # Label/Name Description
1 Ring LED
Indicates phone status:
 Green: Idle state
 Flashing blue: Incoming call (ringing)
 Red: Answered call
2
TFT touch
screen
Thin Film Transistor touch screen, a type of LCD (Liquid Crystal Display)
interactive screen which displays calling information and lets you configure
phone features by touching the glass.
3
Navigation
 Press the button's upper rim to scroll up menus/items in the touch screen.
1
3
4
5
7
8
9
15
16
17
18
13
12
2
10
14
6
11
