User's Manual 5. Customizing Your Phone
Version 3.0.1 65 450HD IP Phone

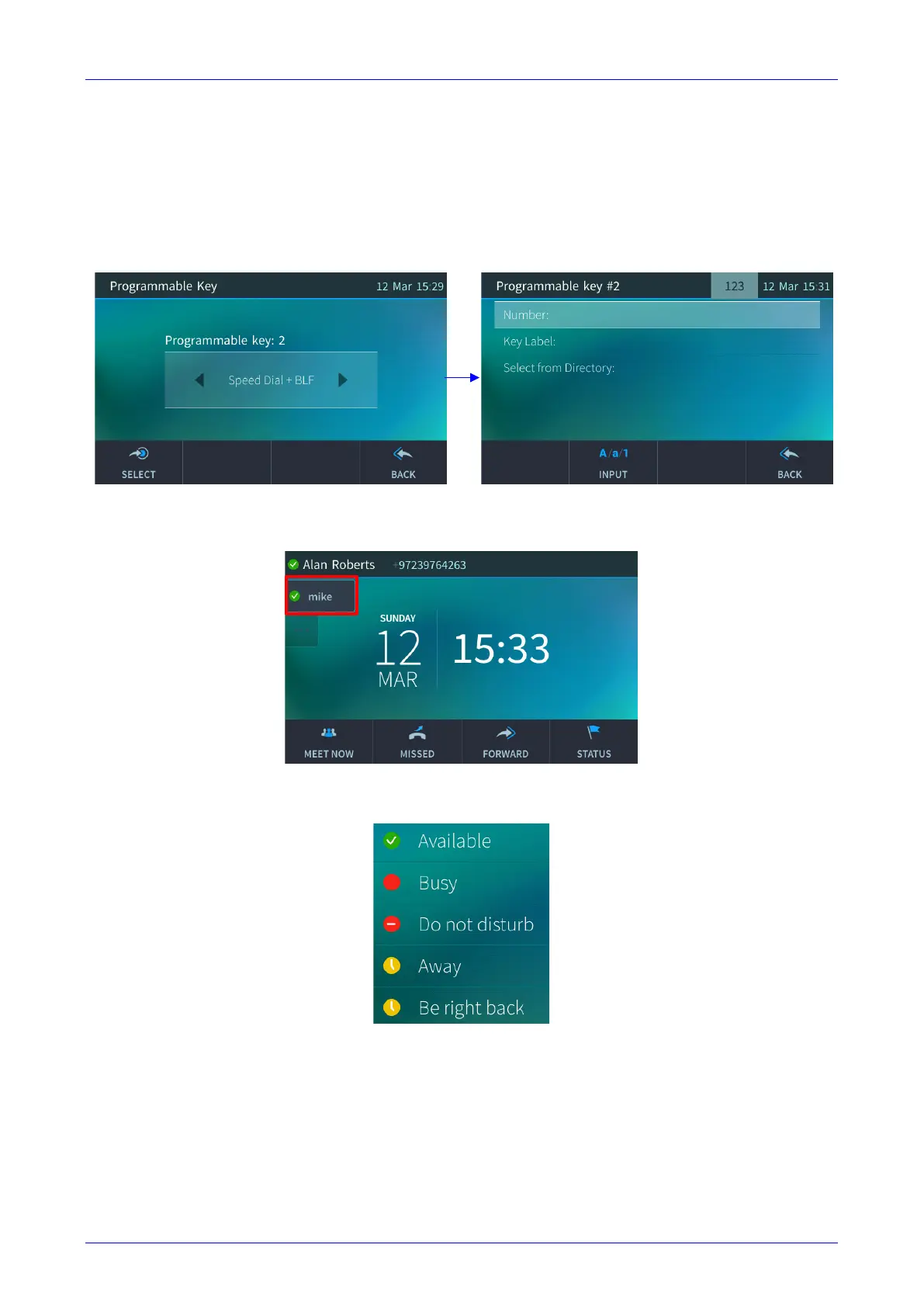

5.16 Configuring a Function Key as Speed Dial+BLF
Eight Function Keys can be configured as Speed Dial+BLF in the phone's touch screen.
To configure a Function Key as a Speed Dial+BLF:
1. In the phone's touch screen, long-touch the … softkey as described in the previous section
and then use the navigation control to navigate to and select Speed Dial+BLF.
2. Configure the 'Number' and 'Key Label' or select the Select from Directory option.
3. Touch Save; the screen reverts to idle mode displaying the name of the contact:
4. To determine presence status, refer to the figure below. In the example shown in the figure
above, Mike's presence status is 'Available'.
5. To quickly place a call, touch Mike in the idle screen; the number is dialed. See Section 5.18
for related information.
