Quality of Experience Profiles'' on page 297.
BW Profile
bw-profile
[RemoteMediaSubnet_BWProfileName]
Assigns a Bandwidth Profile to the Remote
Media Subnet.
By default, no value is defined.
To configure Bandwidth Profiles, see
''Configuring Bandwidth Profiles'' on page 302.
17.1.2 Configuring Media Realm Extensions
The Media Realm Extension table lets you configure 2 Media Realm Extensions. A Media
Realm Extension defines a port range with the number of sessions for a specific Media-
type network interface (configured in the IP Interfaces table). The Media Realm Extension
can be configured with any Media-type interface and port range, regardless of the specific
Media-type interface assigned to its associated Media Realm. Thus, Media Realm
Extensions let you configure a Media Realm with different port ranges / sessions and
different interfaces (i.e., the Media Realm is distributed across multiple interfaces).
Media Realm Extensions can be useful, for example, to overcome limitations of the
maximum number of media ports supported per interface. Instead of configuring only a
single Media Realm in the Media Realms table (see ''Configuring Media Realms'' on page
309), you can also configure additional "Media Realms" in the Media Realm Extensions
table associated with the single Media Realm. An IP Group that is associated with a Media
Realm configured with Media Realm Extensions, allocates its media sessions / ports
between the different interfaces, as configured by the Media Real and its associated Media
Realm Extensions. For example, two Media Realm Extensions could be configured,
whereby one allocates 25 media sessions on interface "LAN-1" and another, 10 sessions
on interface "LAN-2". The Media Realm associated with these Media Realm Extensions
would be assigned to the relevant IP Group.

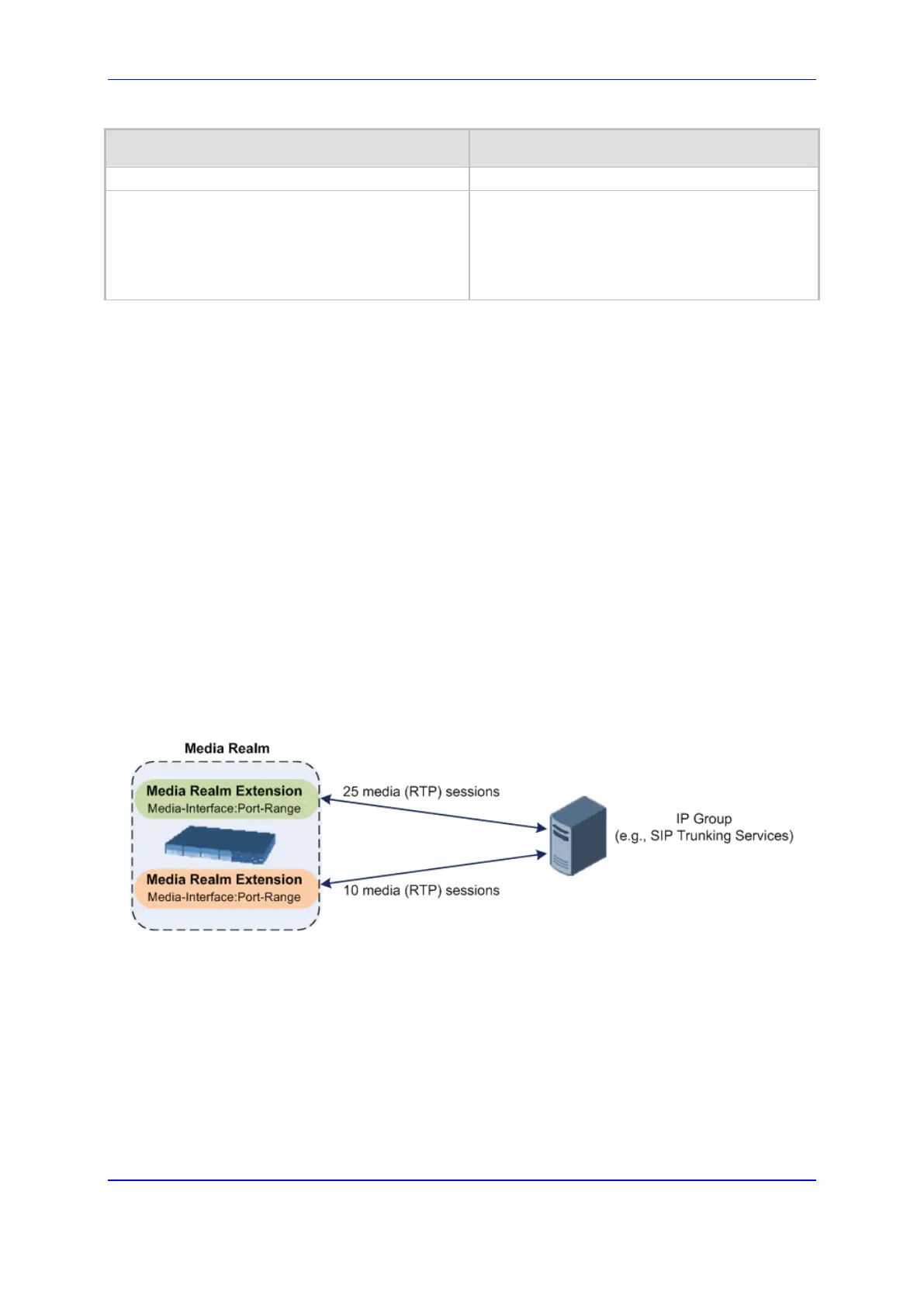

Figure 17-4: Example of Implementation of Media Realm Extensions
The following procedure describes how to configure Media Realm Extensions through the
Web interface. You can also configure it through ini file (MediaRealmExtension) or CLI
(configure voip > voip-network realm-extension).
 To configure a Media Realm Extension:
1. Open the Media Realms table (see ''Configuring Media Realms'' on page 309).
2. Select the Media Realm for which you want to add Remote Media Extensions, and
then click the Media Realm Extension link located below the table; the Media Realm
Extension table appears.
