To view success and failed call ratio:
1. Open the Success/Failure Ratio page (Monitor menu > Monitor tab > Performance
Monitoring folder > Success / Failure Ratio).

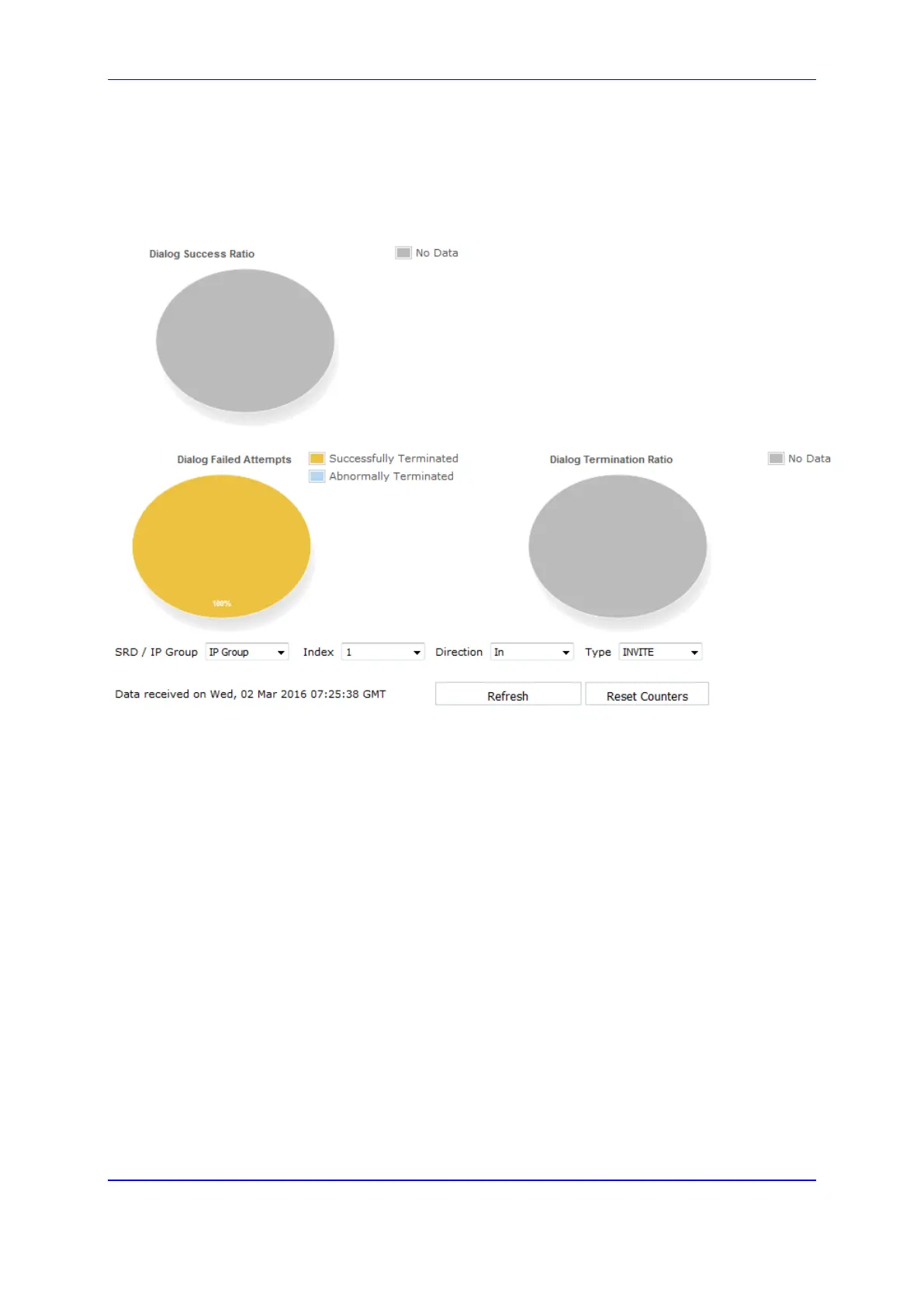

Figure 50-2: Viewing Success/Failure Ratio
2. From the 'SRD/IP Group' drop-down list, select whether you want to view statistic for
an SRD or IP Group.
3. From the 'Index' drop-down list, select the SRD or IP Group index.
4. From the 'Direction' drop-down list, select the call direction:
• In: incoming calls
• Out: outgoing calls
• Both: incoming and outgoing calls
5. From the 'Type' drop-down list, select the SIP message type:
• INVITE: INVITE
• SUBSCRIBE: SUBSCRIBE
• Other: all SIP messages
If there is no data for the charts, the chart appears gray and "No Data" is displayed to the
right of the chart.
To refresh the charts:
Click Refresh.
To reset the counters:
Click Reset Counters.
