Version 7.2 833 Mediant 1000B Gateway & E-SBC

User's Manual 52. Viewing PSTN Status

 To view the status of the D-channels and NFAS groups:



Open the NFAS Group & D-Channel Status page (Monitor menu > Monitor tab >

PSTN Status folder > NFAS Group & D-Channel Status).

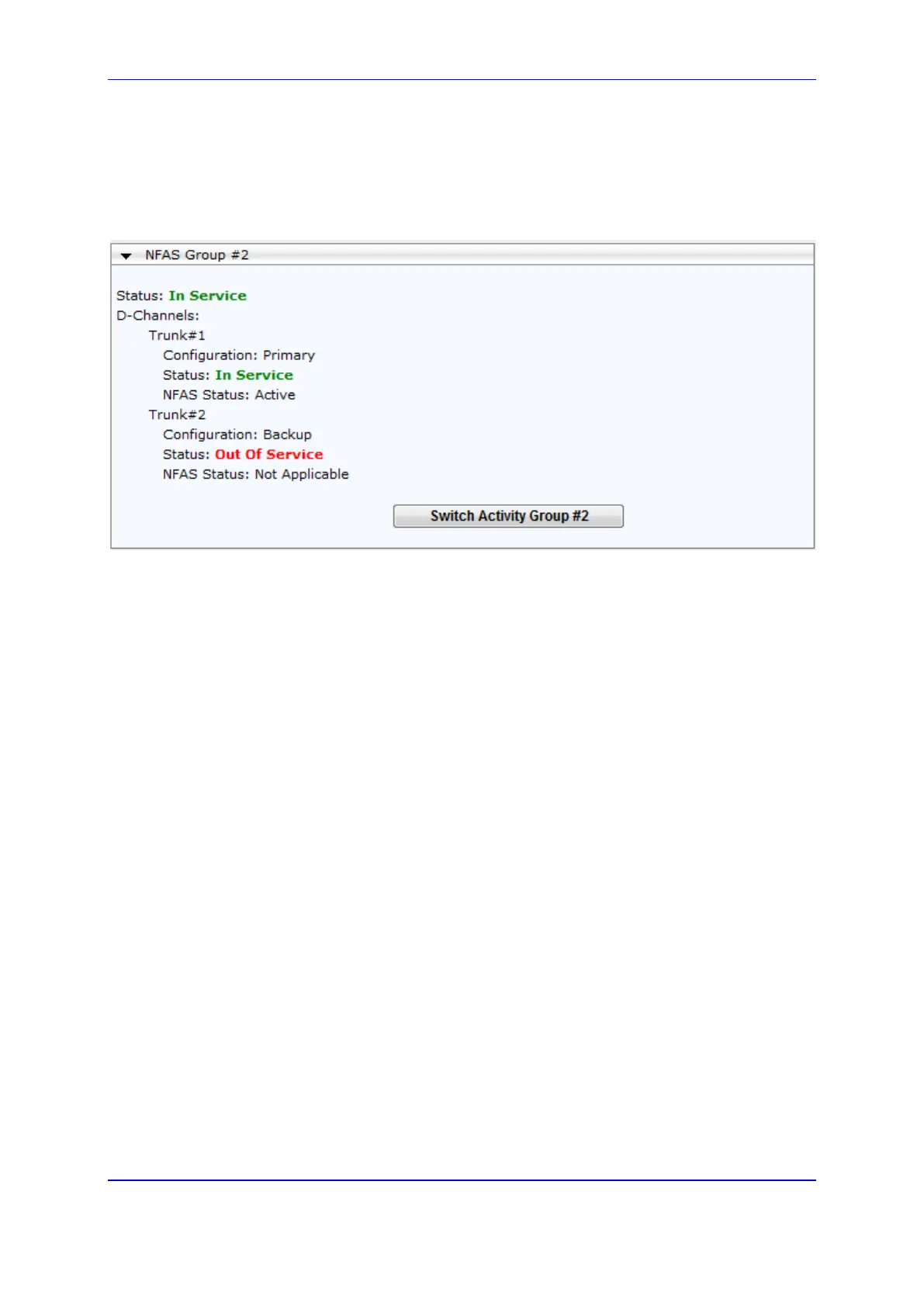

Figure 52-1: NFAS Group & D-Channel Status Page
