Steps continued:

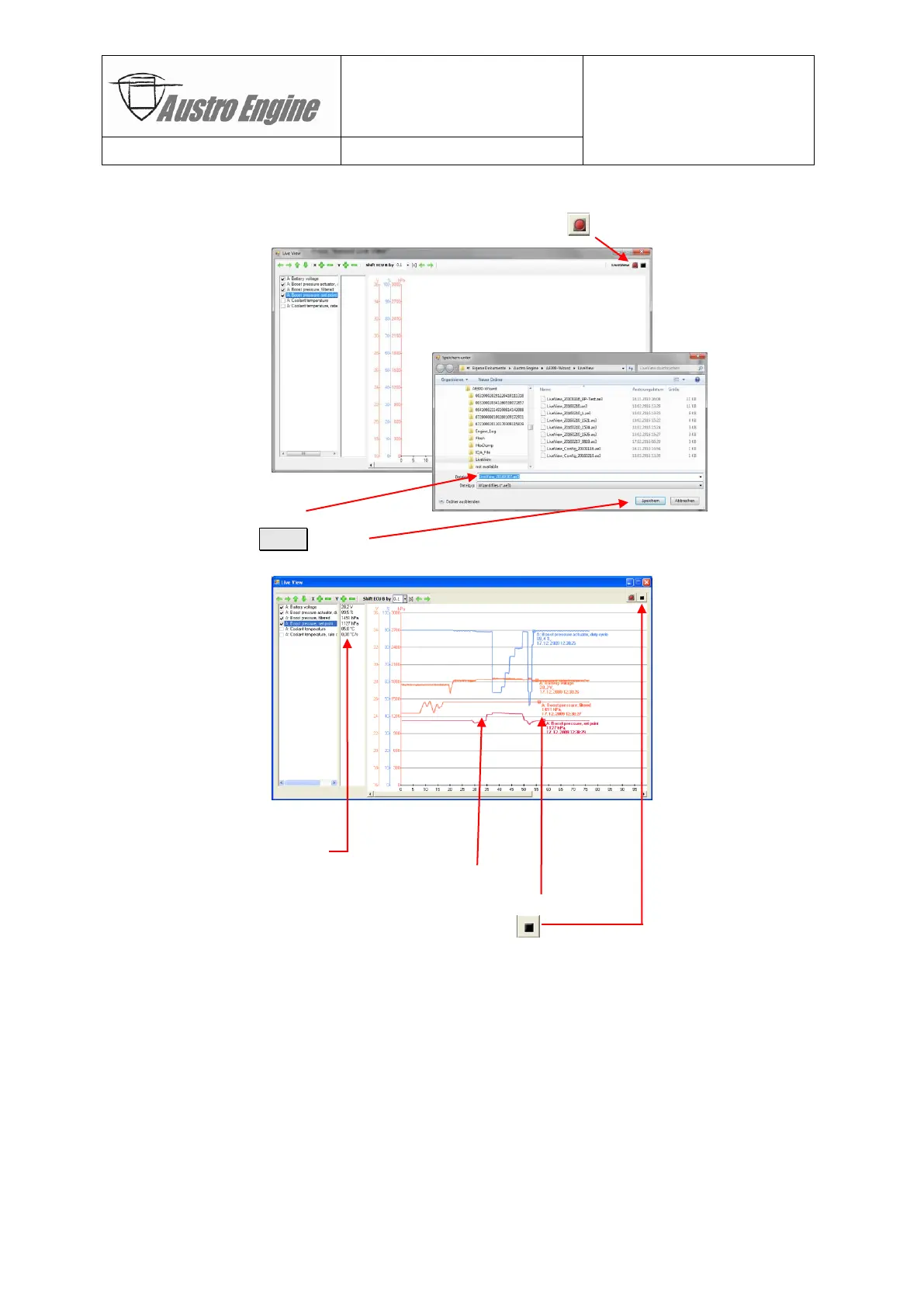

7) Press the “Record” button to start recording session:
8) Select a file name
9) Click on the Save button
10) Measurement runs from left to right:
- Actual signal values
- Graphical display of signal values over time
11) Click on point of signal to display timestamp, name and value
12) Press “Stop” button to stop recording session:
The data (Live View recording) saved during the session can be found on the PC-system in
the folder:
“My Documents\Austro Engine\AE300-Wizard\LiveView”
e.g. under the name “LiveView_YYYYMMDD.ae3” as selected in Step 8).
